FS-9120DN/9520DN
2-1-2
The MP tray can be hold up to 200 sheets of paper at one time. Paper is fed from the MP tray by the rotation of the MP
forwarding pulley and MP paper feed pulley. Also during paper feed, the MP separation pulley prevents multiple sheets
from being fed at one time by the torque limiter.

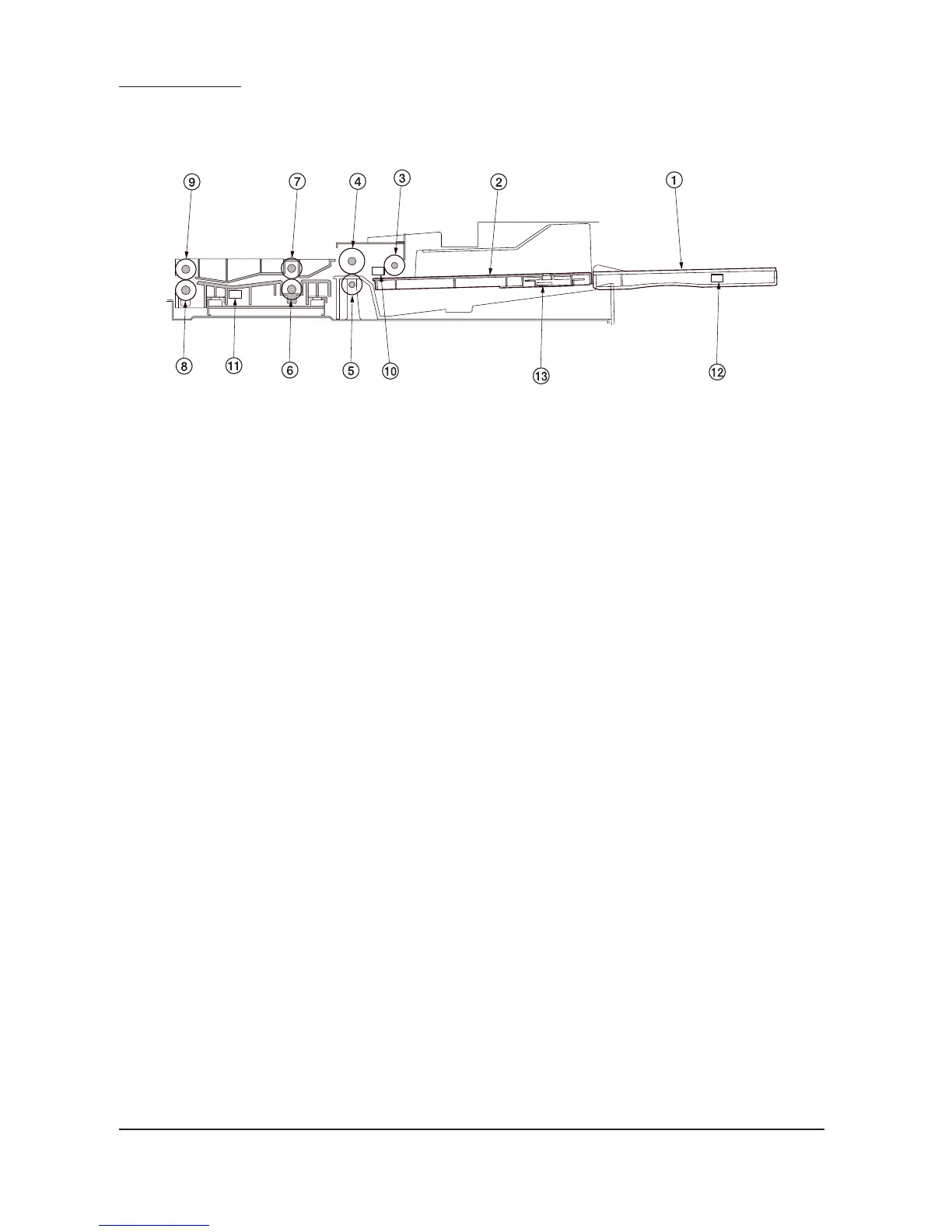

Figure 2-1-2 Paper feed from the MP tray
1 MP table
2 MP lift guide
3 MP forwarding pulley
4 MP paper feed pulley
5 MP separation pulley
6 MP feed roller 1
7 MP feed pulley
8 MP feed roller 2
9 MP feed pulley
0 MP paper switch (MPPSW)
! MP feed switch (MPFSW)
@ MP paper length switch (MPPLSW)
# MP paper width switch (MPPWSW)
