2JL/2JJ/2JG/2JD
1-4-1
1-4 Troubleshoo ting
1-4-1 Paper misfeed detection
(1) Paper misfeed indication
When a paper misfeed occurs, the machine immediately stops copying and displays the jam location on the operation
panel.
Paper misfeed counts sorted by the detection condition can be checked in maintenance item U903.
To remove paper jammed in the machine, open the left cover, paper conveying unit, fuser cover, pull the cassette out or
pull the MP conveying unit out.
To remove original jammed in optional DP, open the DP original cover or switchback unit.
To remove the jammed paper in optional 3000-sheet document finisher or document finisher, detach the finisher from the
machine.
Paper misfeed detection can be reset by opening and closing the respective covers to turn safety switch off and on.

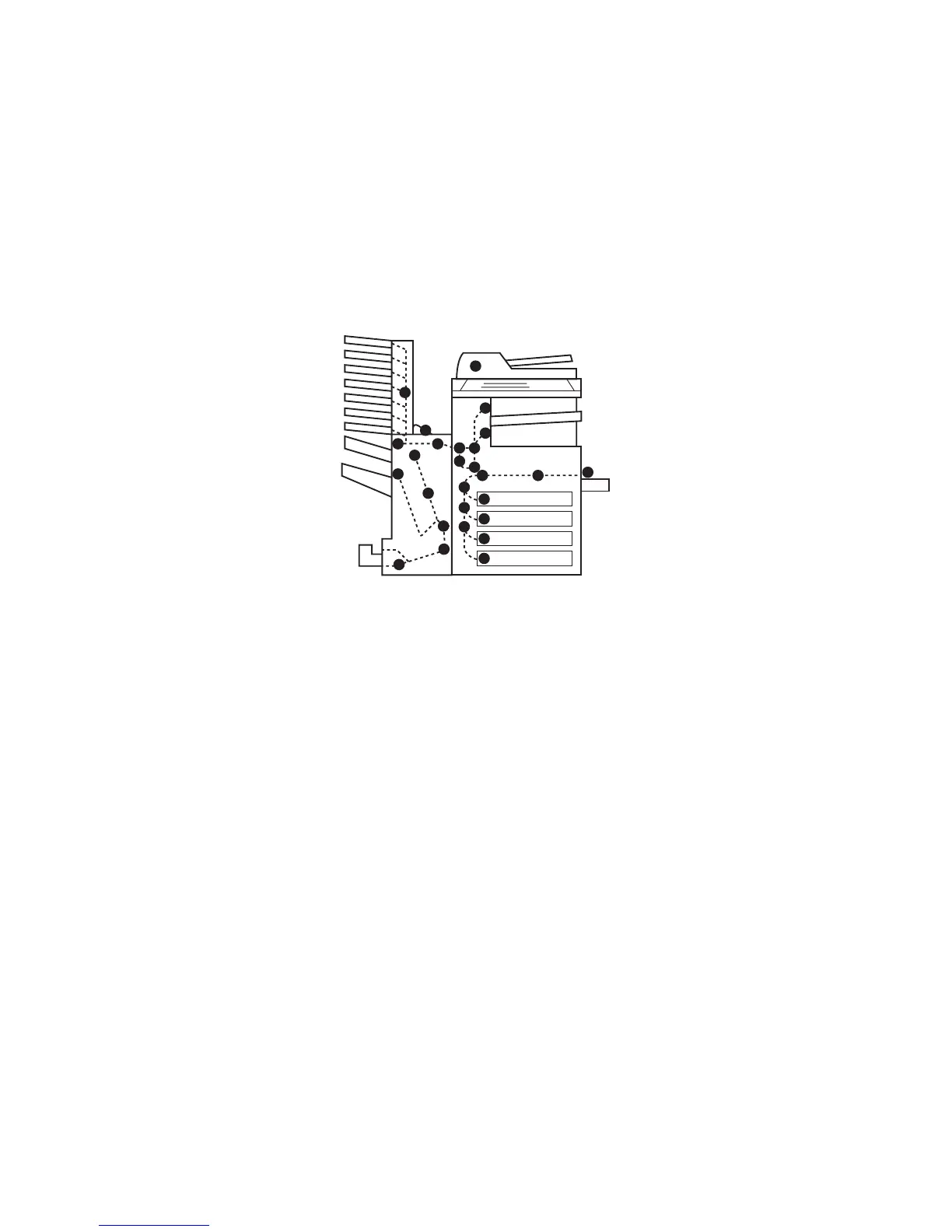

Figure 1-4-1
1
1
22
2
6
6
3
4
5
7
8
8
88
8
8
8
8
8
8
6
2
1
1
1
2
(1) Misfeed in the paper feed section
(2) Misfeed in the paper conveying section
(3) Misfeed in the fuser section
(4) Misfeed in the eject section
(5) Misfeed in the feedshift section
(6) Misfeed in the duplex section
(7) Misfeed in optional DP
(8) Misfeed in optional document finisher
