2JL/2JJ/2JG/2JD
1-5-39

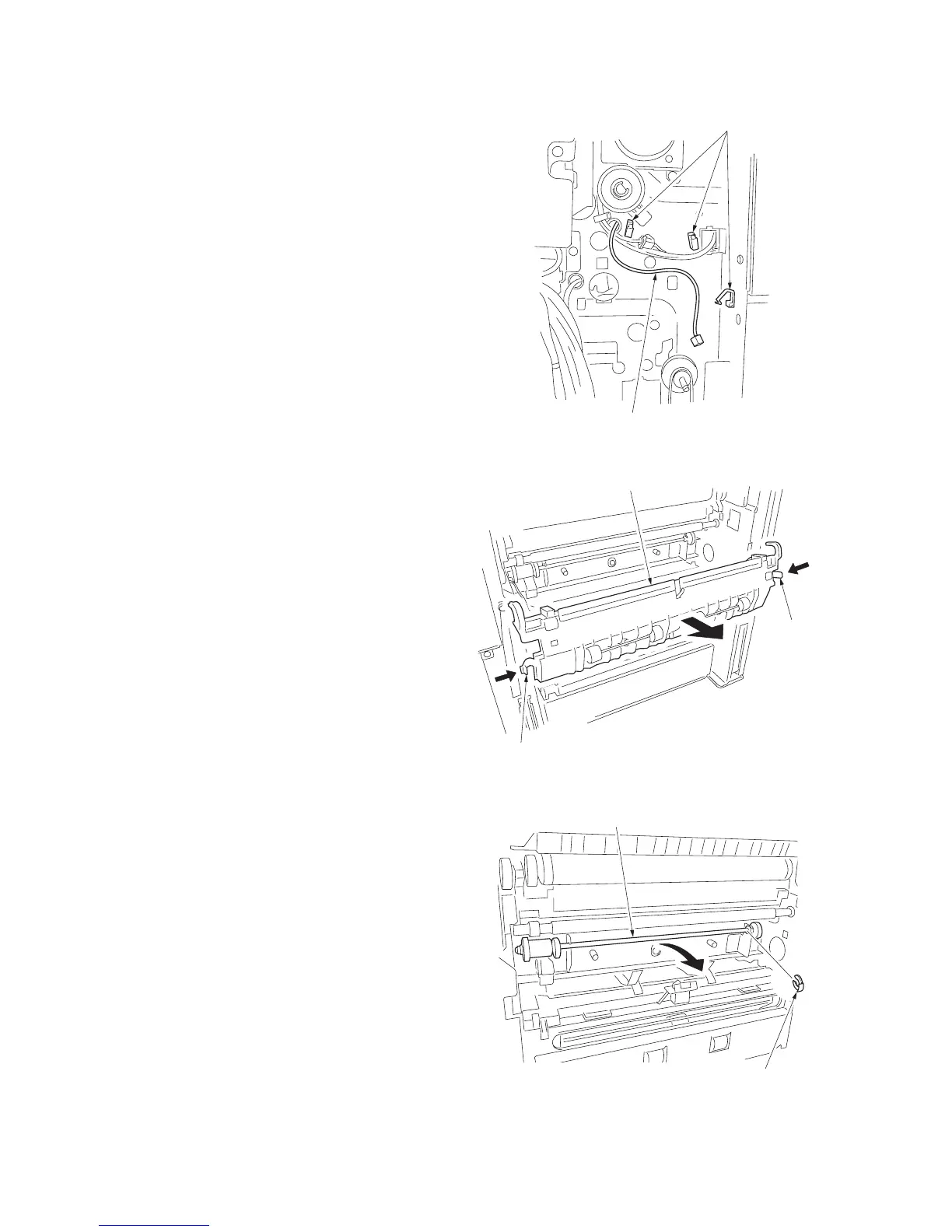

9. Remove the conveying drive unit (see page
1-5-35).
10. Release the wire of the registration switch
from three wire saddles.
Figure 1-5-86
11. While pressing and holding the left and right
locking claws inward, remove the paper con-
veying guide unit.
Figure 1-5-87
12. Remove the stop ring and remove the LSU
cleaning unit.
Figure 1-5-88
Wire of the registration switch
Wire saddles
Locking claw
Paper conveying guide unit
Locking claw
Stop ring
LSU cleaning unit
