2JL/2JJ/2JG/2JD
2-1-1
2-1 Mechanical construction
2-1-1 Paper feed section
(1) Cassette paper feed section
Cassette paper feed section consists of the paper holder with the lift cassette operation plate activated by lift motor 1 and
2, and the pulleys, such as the forwarding pulley, the paper feed pulley and the separation pulley, for extracting and con-
veying the paper. Paper is fed out of the cassette by the rotation of the forwarding pulley, paper feed pulley and separation
pulley.

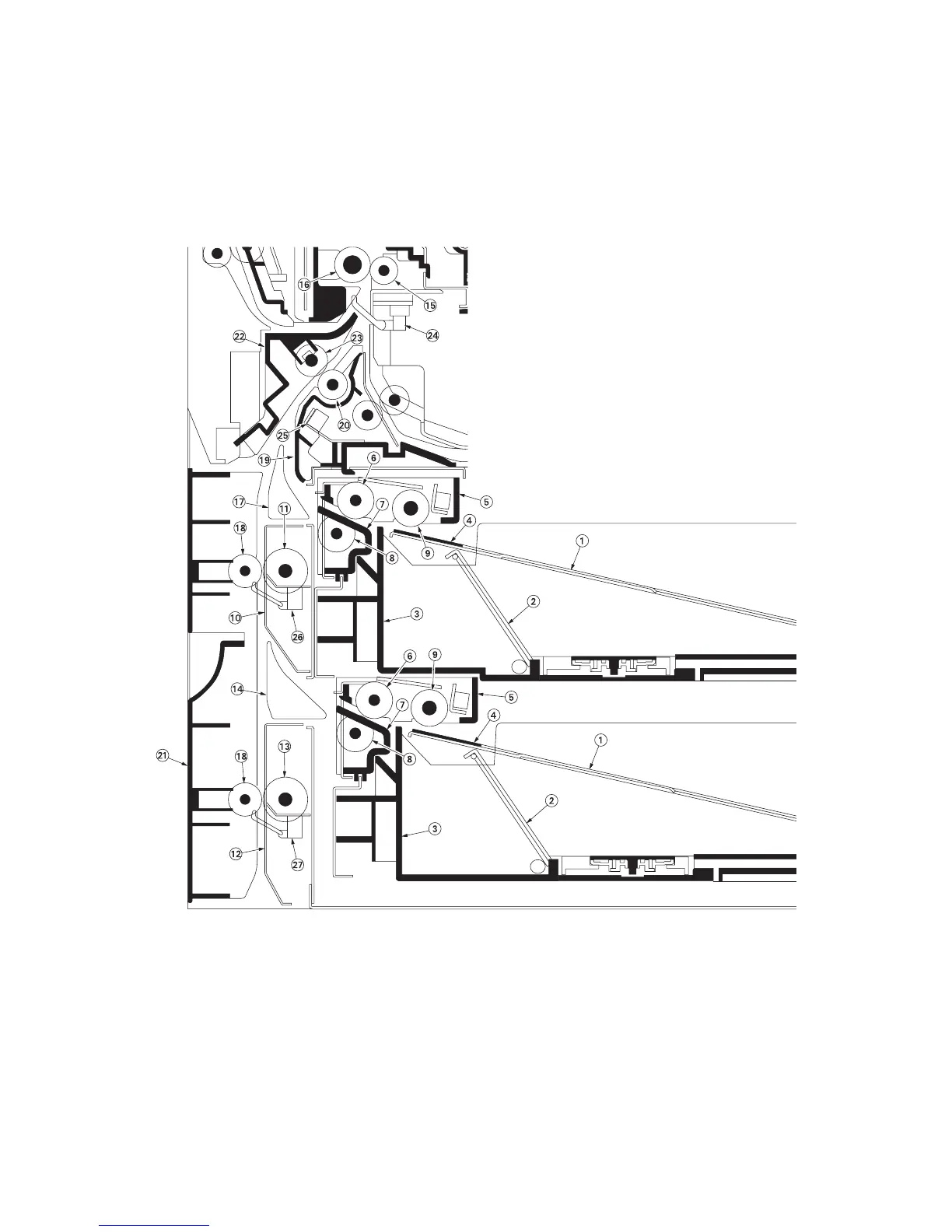

Figure 2-1-1 Cassette paper feed section
(1) Cassette base
(2) Lift cassette operation plate
(3) Cassette
(4) Cassette pad
(5) Paper feed upper housing
(6) Paper feed pulley
(7) Paper feed lower housing
(8) Separation pulley
(9) Forwarding pulley
(10) Feed low 1st guide
(11) Feed low roller
(12) Feed low 2nd guide
(13) Feed low roller
(14) Feed UP 2nd guide
(15) Registration R roller
(16) Registration roller
(17) Feed UP 1st guide
(18) Feed pulley
(19) MIddle R guide
(20) Middle R roller
(21) Left cover 2
(22) Middle L guide
(23) Middle pulley
(24) Registration switch (RSW)
(25) Feed switch 1 (FSW1)
(26) Feed switch 2 (FSW2)
(27) Feed switch 3 (FSW3)
