2JL/2JJ/2JG/2JD
2-1-5
2-1-2 Drum section
(1) Drum section
The drum section consists of the charger roller unit, drum and cleaning section. The drum is electrically charged uniformly
by means of a charger roller to form a latent image on the surface. The cleaning section consists of the cleaning blade and
the cleaning roller which remove residual toner from the drum surface after transfer.
.

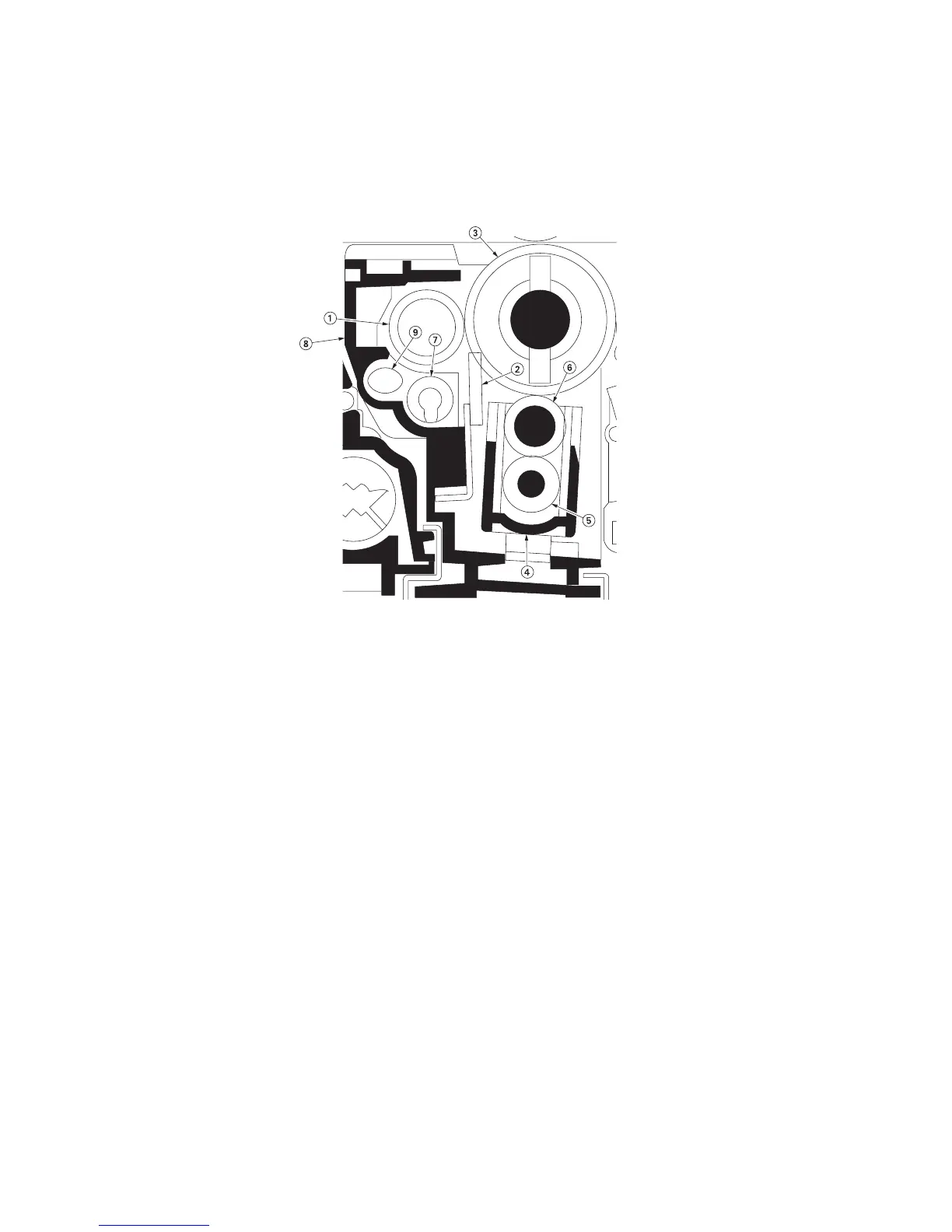

Figure 2-1-7 Drum section
(1) Cleaning roller
(2) Cleaning blade
(3) Drum
(4) Charger roller holder
(5) Charger cleaning roller
(6) Charger roller
(7) Drum screw
(8) Drum frame
(9) Drum roller
