2KR/2KS
1-5-27
(3) Detaching and refitting the drum separation claws
Follow the procedure below to replace the drum separation claws.
Procedure
1. Remove the developing unit (see page 1-5-
28).
2. Remove the drum unit (see page 1-5-25).
3. Remove two screws and remove the lower
cleaning seal.

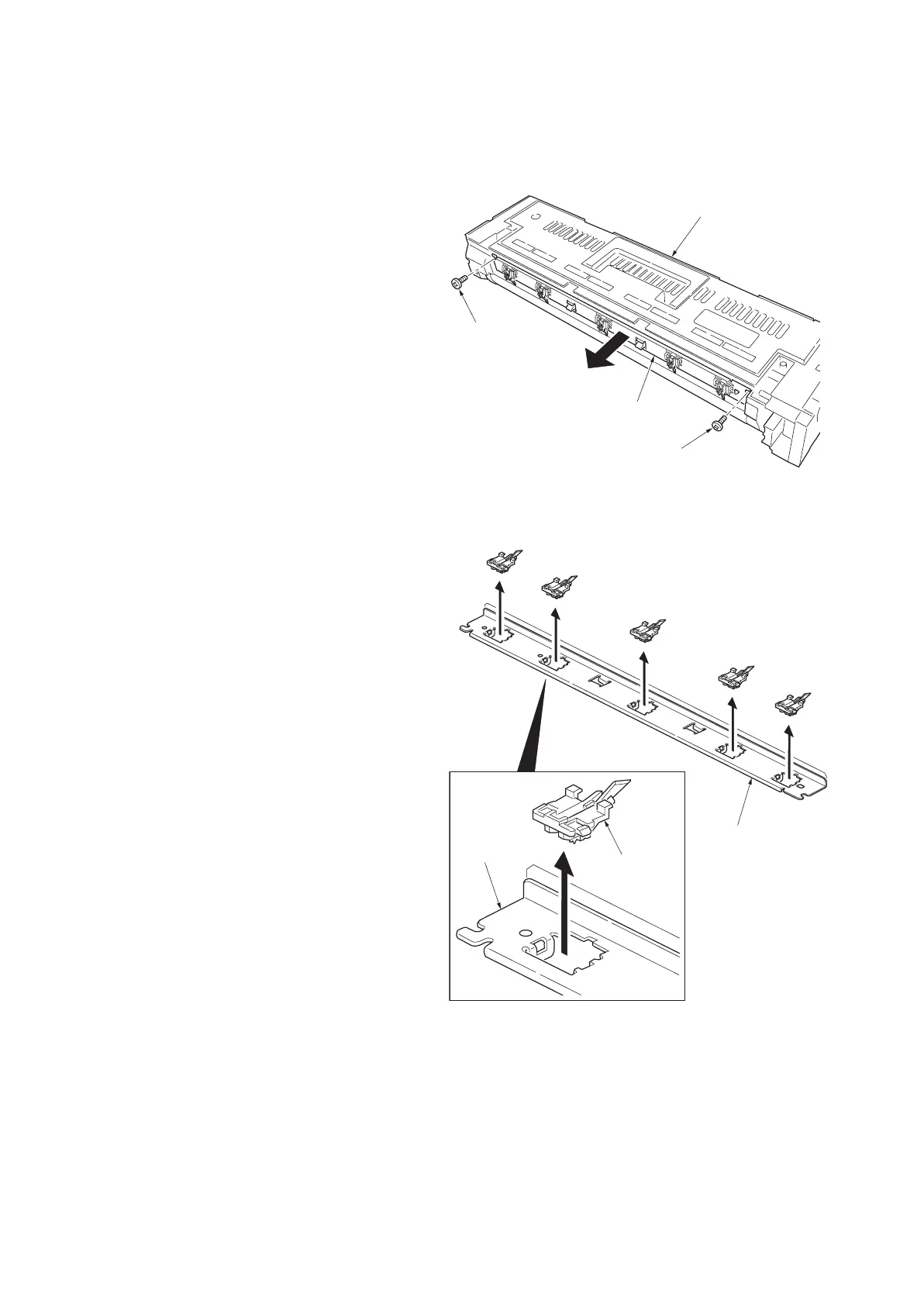

Figure 1-5-55
4. Release the inserted part and remove the
drum separation claws from the lower clean-
ing seal.
5. Replace the drum separation claws and
Install the claws.
6. Refit the lower cleaning seal to the drum
unit.
7. Refit the drum unit and developing unit.
Figure 1-5-56
Lower cleaning seal
Drum unit
Screw
Screw
Lower cleaning seal
drum separation
claw
Lower cleaning
seal
To Next Page
