(3) Motors

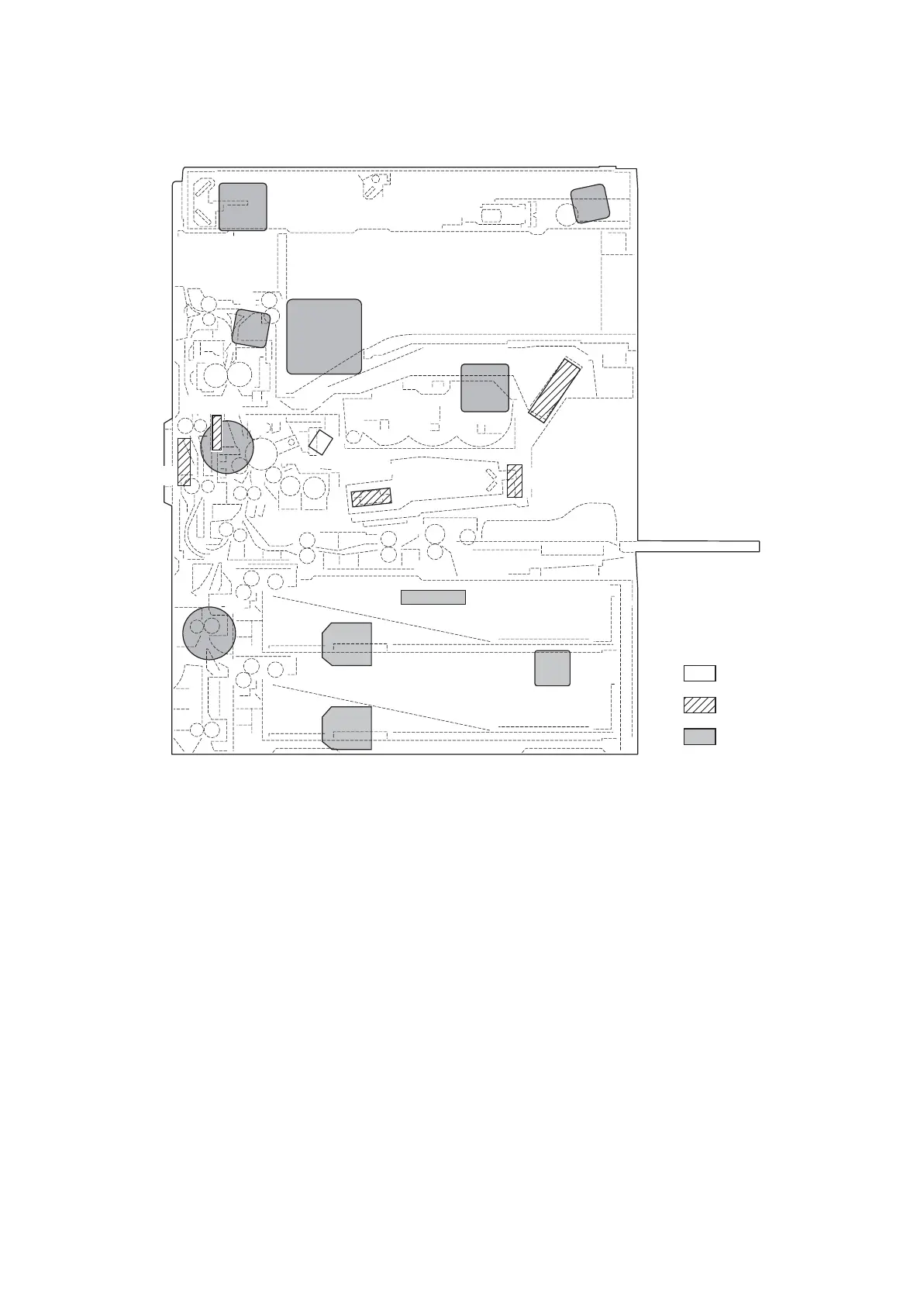

Figure 2-2-3 Motors
1. Drive motor (DM) ......................................... Drives the machine.
2. Paper feed motor (PFM) .............................. Drives paper feed section.
3. Lift motor 1 (LM1)......................................... Drives cassette 1 lift.
4. Lift motor 2 (LM2)......................................... Drives cassette 2 lift.
5. Scanner motor (SM)..................................... Drives the scanner section.
6. Eject motor (EM) .......................................... Drives the eject section.
7. Fuser fan motor (FUFM) .............................. Cools the fuser section.
8. Developing fan motor (DEVFM)................... Cools the developing section.
9. Power source fan motor 1 (PSFM1) ............ Cools the power source PWB.
10. Power source fan motor 2 (PSFM2) ............ Cools the power source PWB.
11. LSU fan motor (LSUFM) .............................. Cools the LSU.
12. Controller fan motor (CONFM)..................... Cools the controller box.
13. Scanner fan motor (SFM) ............................ Cools the scanner section.
14. Duplex fan motor 1 (DUPFM1)...................... Cools the machine interior and supports paper transfer for duplex copying.
15. Duplex fan motor 2 (DUPFM2)...................... Cools the machine interior and supports paper transfer for duplex copying.
16. Duplex fan motor 4 (DUPFM3)...................... Cools the machine interior and supports paper transfer for duplex copying.
17. Paper conveying fan motor 1 (PCFM1) ....... Cools the machine interior (around the paper conveying).
18. Paper conveying fan motor 2 (PCFM2) ....... Cools the machine interior (around the paper conveying).
19. Paper conveying fan motor 3 (PCFM3) ....... Cools the machine interior (around the paper conveying).
20. Main charger cleaning motor (MCCM)......... Drives the main charger auto cleaning.
21. Polygon motor (PM)..................................... Drives the polygon mirror.
Machine front
Machine inside
Machine rear
5
12
1
14,15,16
17,18,19
13
6
20
21
10
9
4
3
8
7
11
2
