3-190
Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]

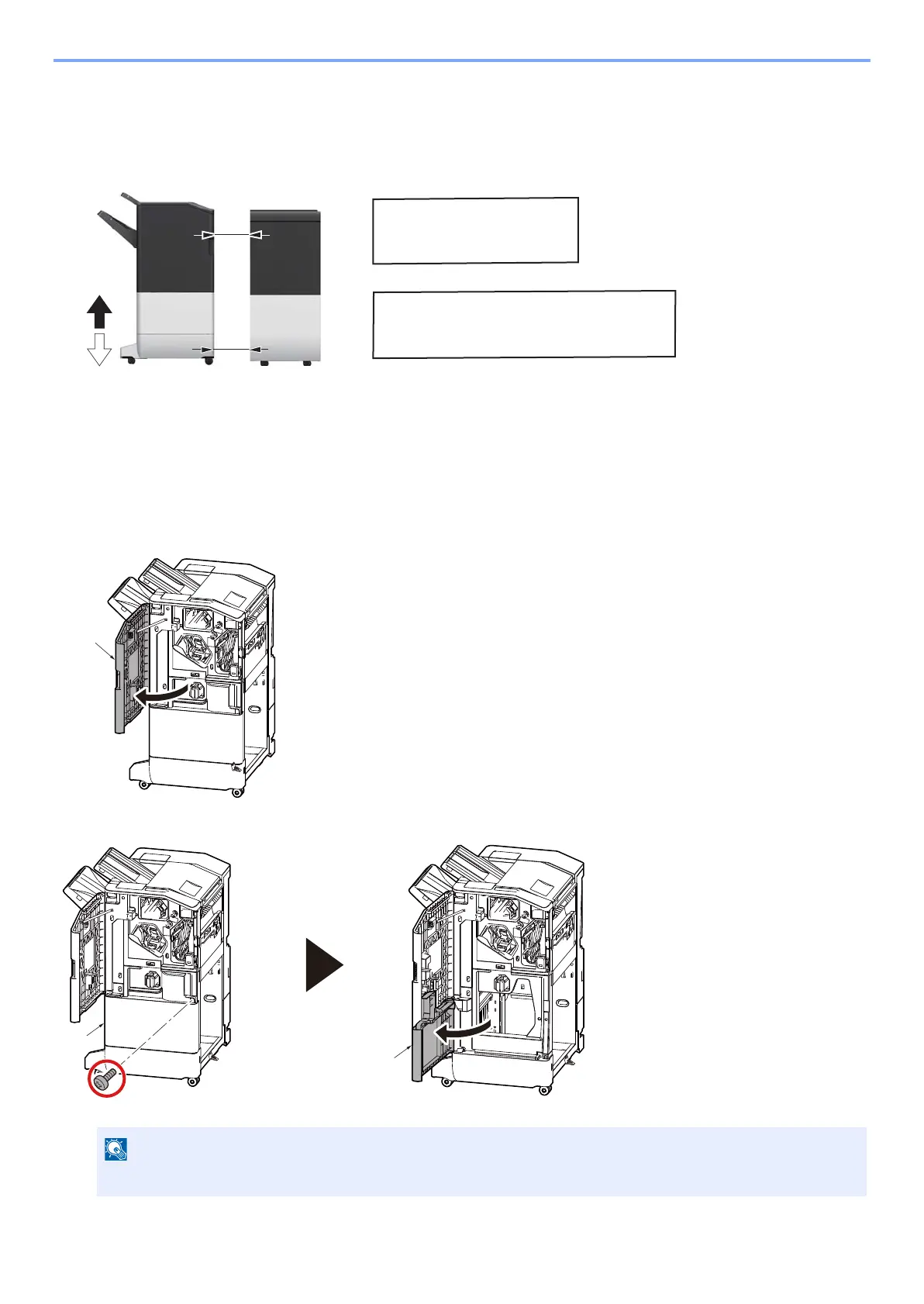

2 Check the level.
Check the level with the distance between DF-9100 and AK-9120 [F], [G].
• The distance between DF-9100 and AK-9120, [F], [G] are equal.
• The distance between DF-9100 and AK-9120, [F], [G] are not equal.
3 Go to next step according to result of height and level check.
• Height OK, Level OK: Go to step .
• Height OK, Level NG: Go through from step 152 to 154 then jump to step 158.
• Height NG, Level OK: Go to step 152.
• Height NG, Level NG: Go to step 152.
153
Open front upper cover [A].
154
Open front lower cover [A] (Screw x1). The screw will use in step 161.
• The front lower cover [A] is not secured with screw in case that BF-9110 has installed.
OK: [F] = [G]
[F]
[G]
[F]>[G], [F]<[G]
NG:
[A]
[A]
To Next Page
