Troubleshooting > Clearing a Staple Jam

Clearing a Staple Jam

Clearing a Staple Jam of the 4,000-Sheet Finisher

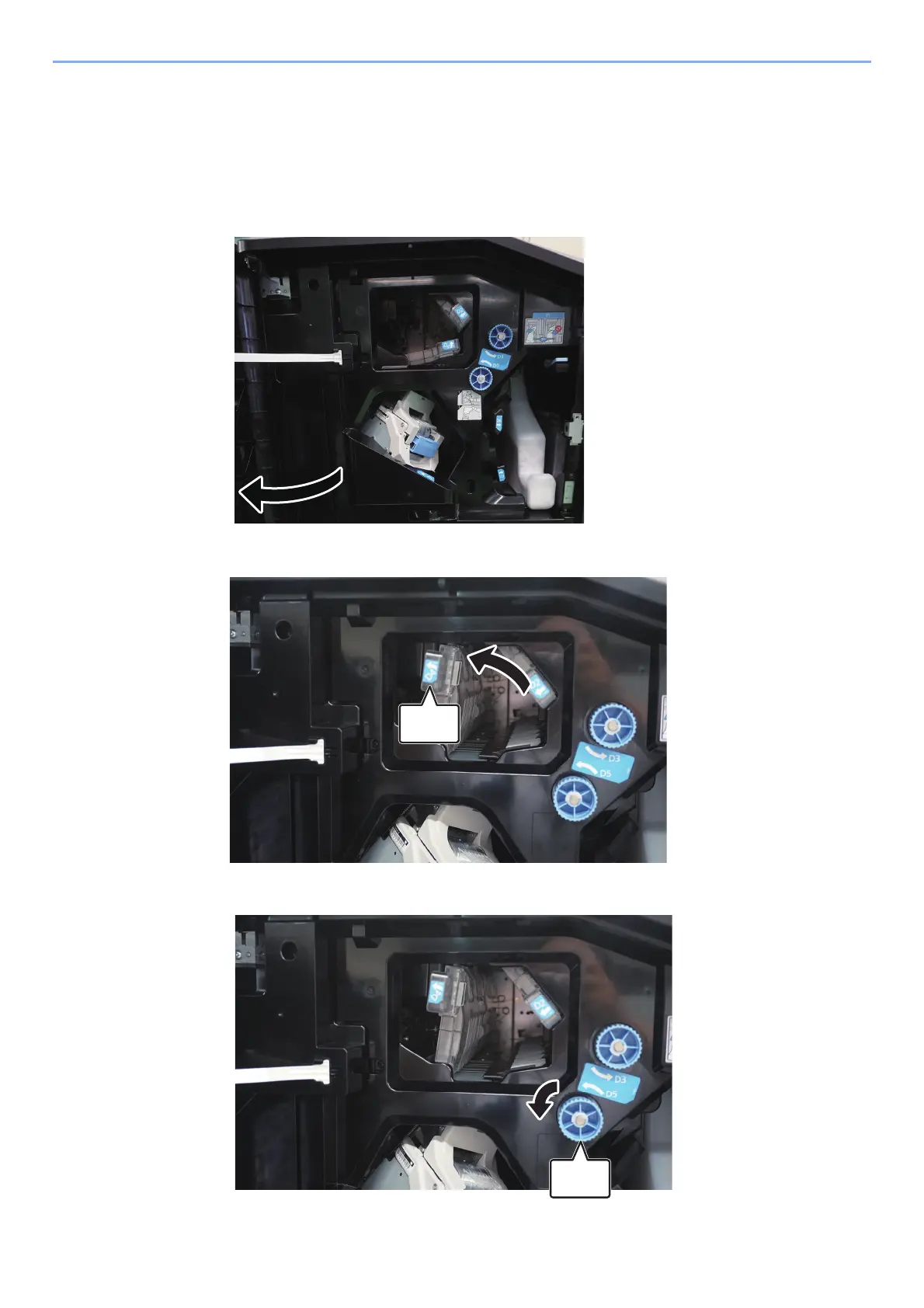

Open the finisher front cover 1.

Open the conveyor guide (D4).

Turn knob (D5).
