KYT NFJ - Cheek Pad System; Cheek Pad Assembly and Disassembly

EN
11

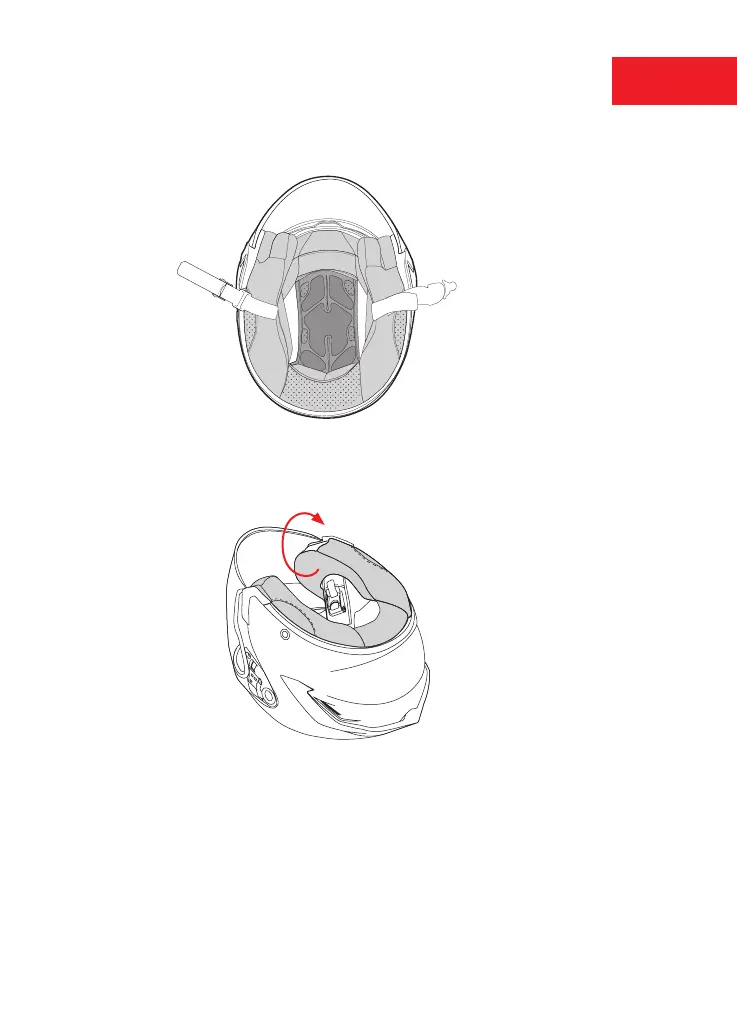

FIGURE 7
Inner side padding: CHEEK PADS
— L — Figure 7
Assembly and disassembly
Removing the pads
— Figure 8
Grab the cheek pad (L) from the front part, push it to the back part of the helmet and then rotate
inwards until all the press studs are unhooked.
L L
FIGURE 8
L
Assembly — Figure 9
Turn upside down the cheek pads from the original position.
Insert the fixing hook (M) in the red hooking hole (N). Put the back part of the cheek pad on the
fixed part of the inner lining. Verify that the fastening strap (O) is correctly inserted in the appro-
priate seat (P). Push the cheek pad to the back part of the helmet and hook the press studs.
