L-Acoustics ARCS WIDE User Manual

ARCSWIFO_UM_EN_4.0
www.l- acoustics.com
15

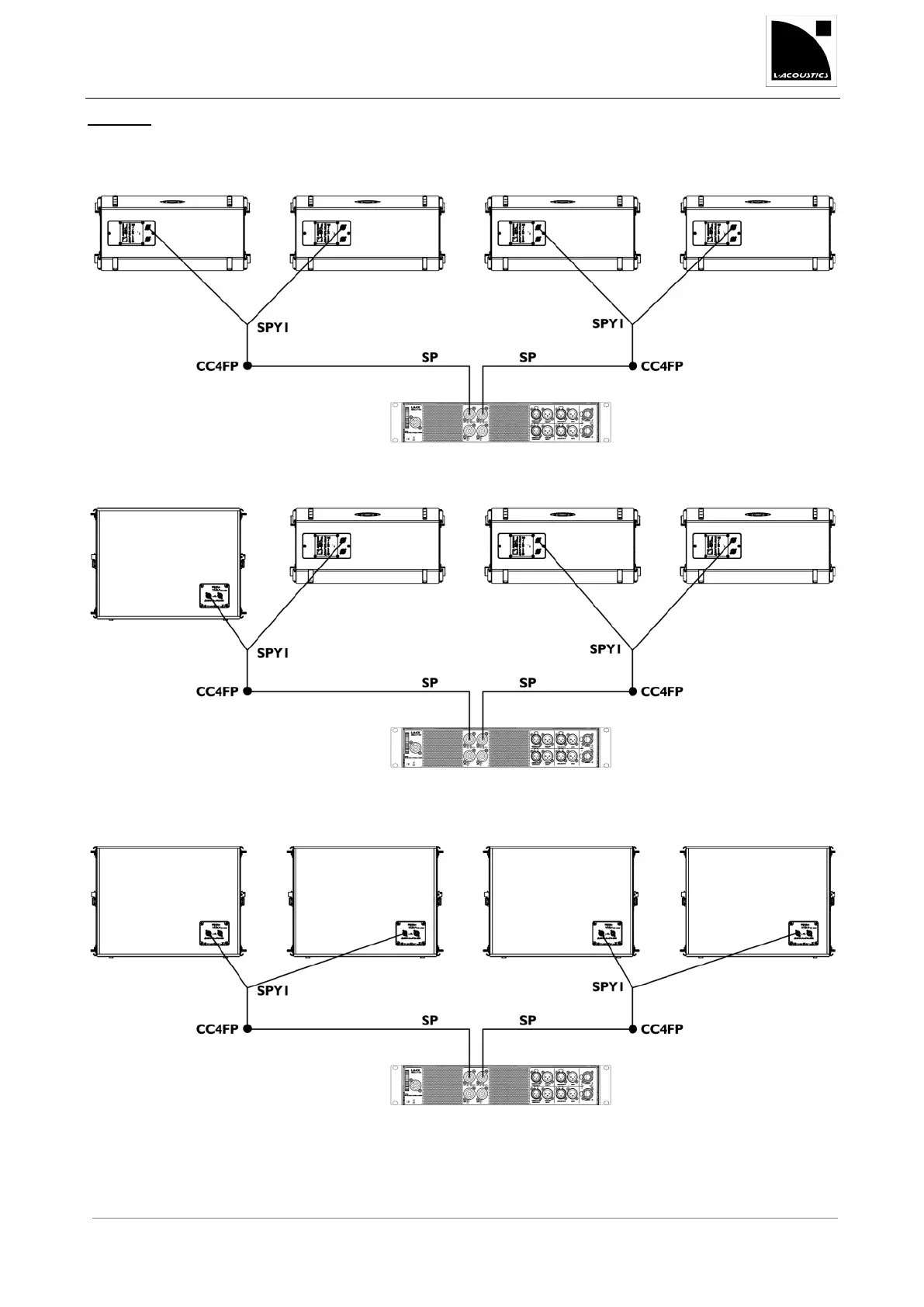

Option B
 Connect an SP cable (SP.7, SP5, SP10 or SP25) to the OUT1/OUT2 and OUT3/OUT4 connectors of the LA4 / LA4X.
 Use a CC4FP adapter to connect an SP-Y1 cable and separate the two output channels.
LA4 / LA4X option B maximum configuration with ARCS
®
WIDE/FOCUS
LA4 / LA4X option B maximum configuration with ARCS
®
WIDE/FOCUS + SB18m
LA4 / LA4X option B maximum configuration with SB18m

L-Acoustics ARCS WIDE Specifications

General

Brand	L-Acoustics
Model	ARCS WIDE
Category	Speakers
Language	English
