L-Acoustics KARA Upgrade Instructions

Upgrade procedure

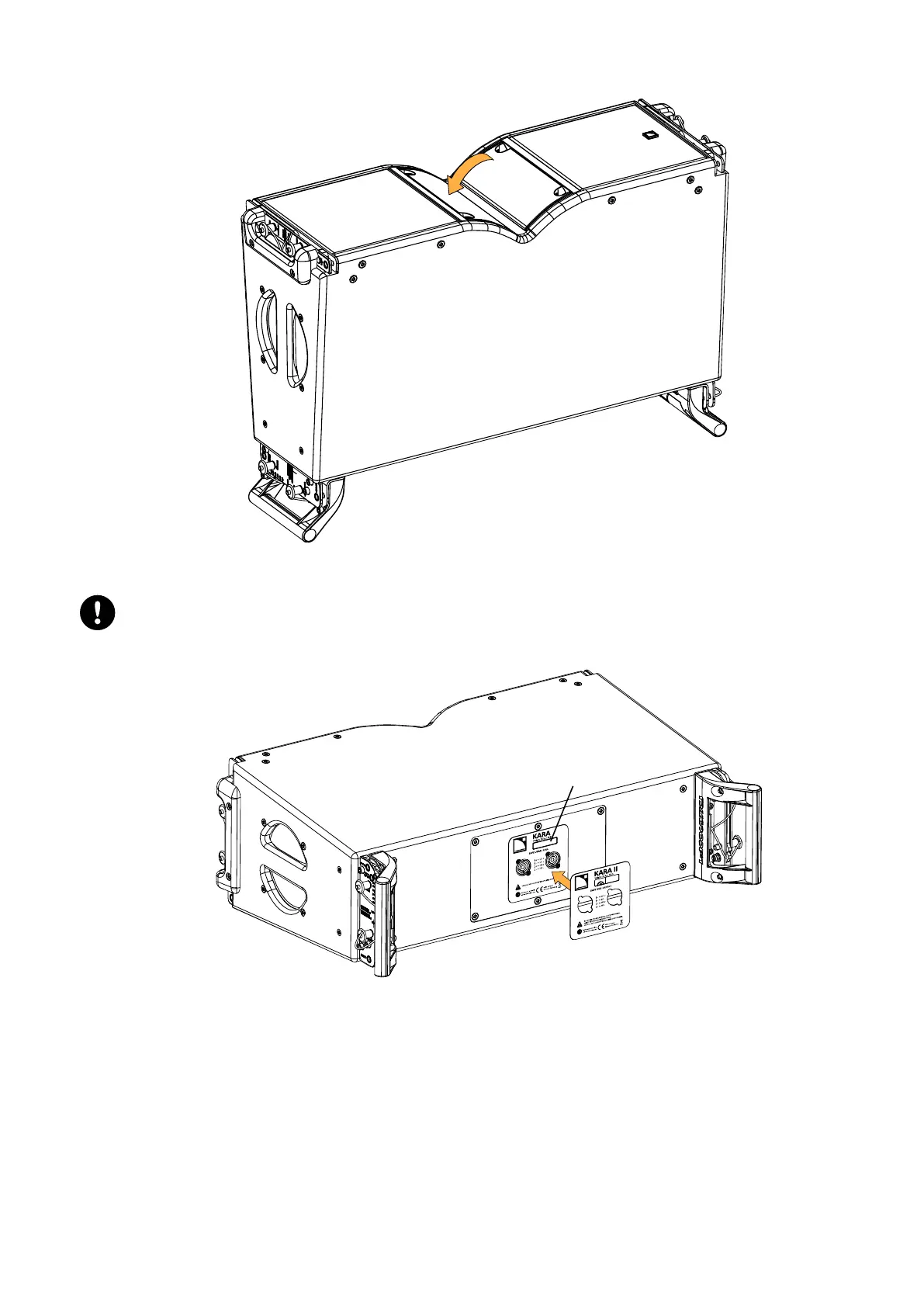

5. Push on the ns to close them.
CLICK!
6. Carefully stick the Kara II label on top of the Kara label, at the rear of the enclosure.
Make sure the serial number remains visible through the label window.
If the serial number is hidden by the new label (Kara model from 2014 or earlier), copy the number on the
empty serial number label, and stick the label inside the window.
serial number
What to do next
Refer to the Kara II owner's manual for instructions on using Kara II L-Fins and presets.
Kara to Kara II upgrade instructions (EN) version 1.1 9

L-Acoustics KARA Specifications

General

Frequency Response	55 Hz - 20 kHz
Nominal Impedance	8 ohms
Impedance	8 Ohms
Components	1 × 3" HF driver
Max SPL	140 dB
Enclosure Material	Birch plywood with protective coating
Connectors	2 x NL4
