Rigging system description

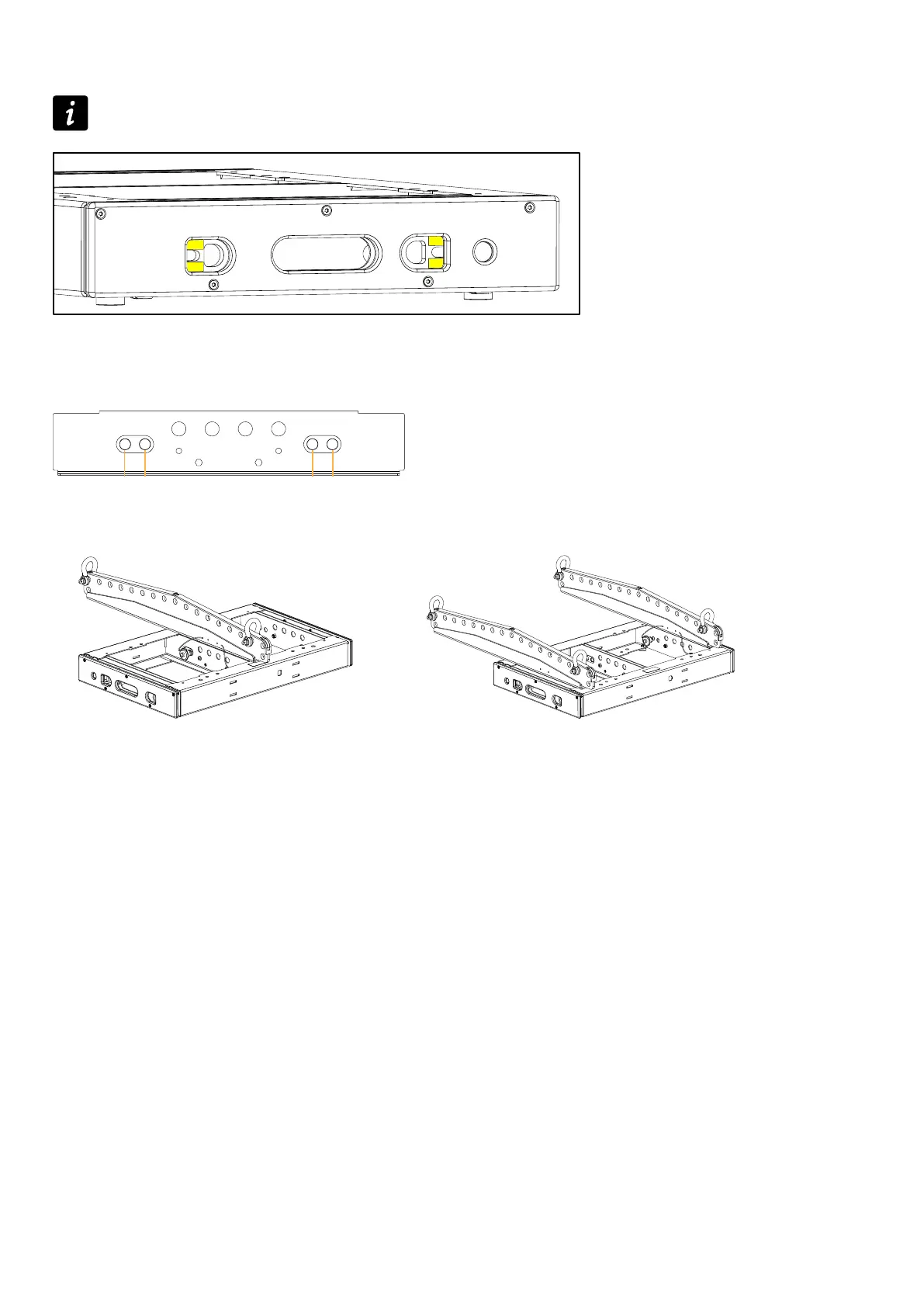

L2-BUMP is equipped with four spring-loaded lock systems to match the rigging arms of L2 and L2D.
Slide to unlock the spring-loaded lock.
The rigging elements are tted with yellow safety labels that are visible when they are not safely locked.
The central and side bars of L2-BUMP have four holes each for site angle adjustments.
1
2
3 4
A B A B
To increase the site angle, four additional holes are available to add one L2-BAR on the central bar or two on each side
bar.
L2-BUMP is compatible with LA-RAKMOUNT to secure a single LA-RAK III above the array. Refer to LA-RAKMOUNT
(p.34).
L2 owner's manual (EN) version 2.0 29
