Rigging procedures

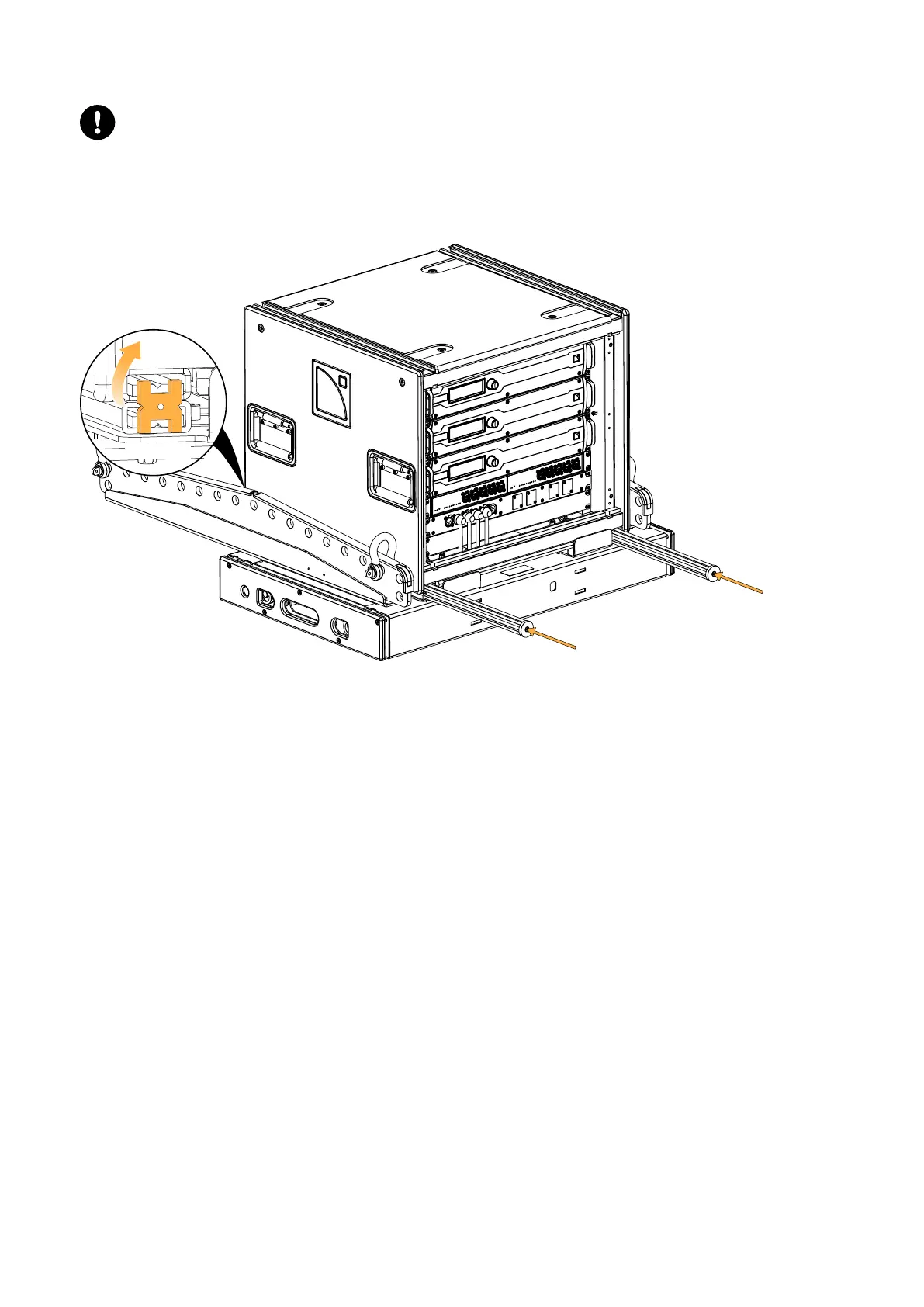

5. Secure LA-RAK III with the coupling bars.
Always insert the coupling bars so that the round safety mechanisms are pointed upward
(depending on the site angle):
from the back for a negative angle (rear extension)
from the front for a positive angle (front extension)
Insert the spring-loaded safety in the LA-RAK III rails, give a quarter turn and slide the bar until the safety locks into
place.
SHLAK!
6. Select the pickup points on each L2-BAR and raise the assembly.
What to do next
Refer to Flying an L2/L2D array with L2-BUMP and L2-BAR (p.60).
L2 owner's manual (EN) version 2.0 59
