L-Acoustics LA4X Maintenance Manual

Troubleshooting and diagnosis

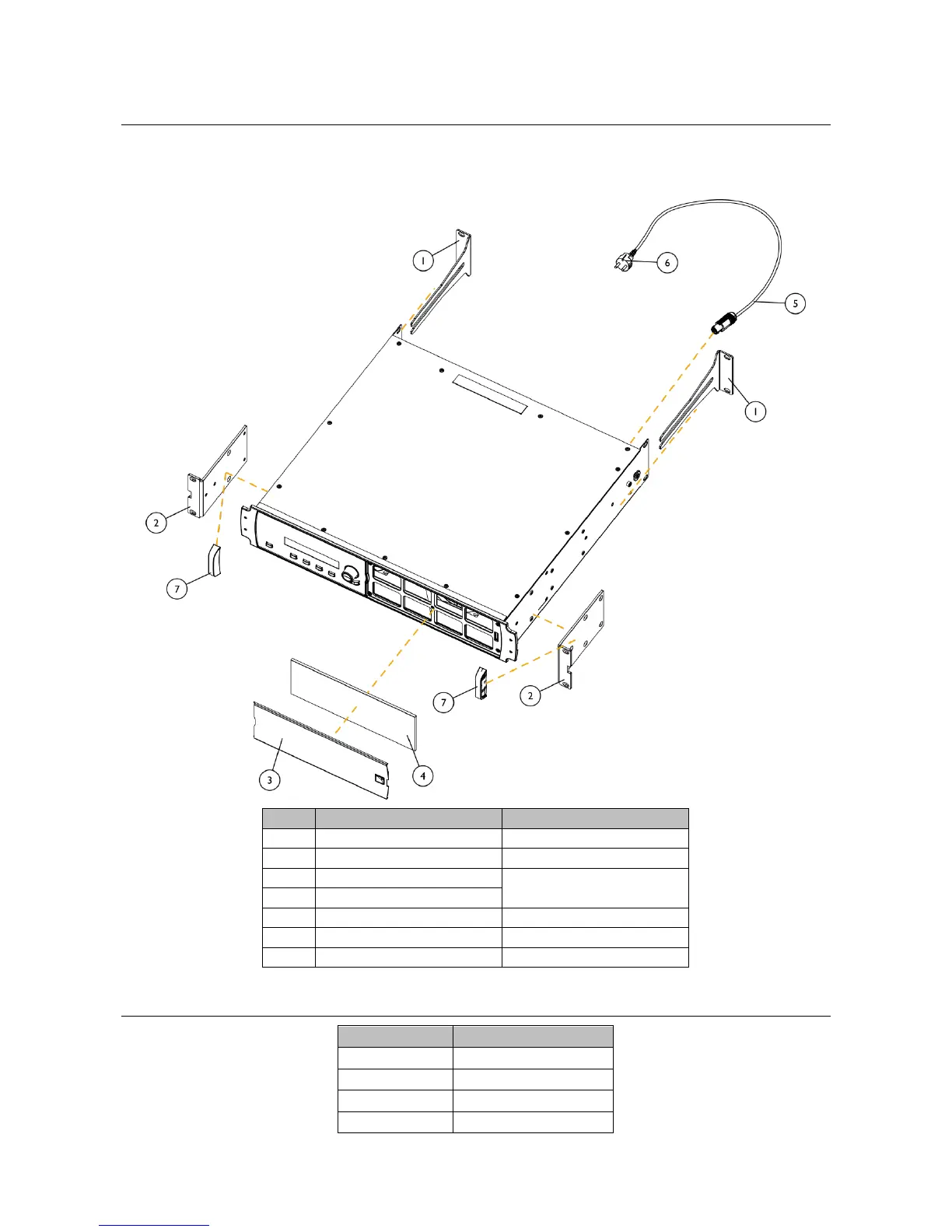

Exploded view
The following exploded view represents the external MODULES of the LA4X. Each MODULE is indicated by a
circled number. The orange lines represent the disassembly/reassembly (D/R) order. Refer to the table below
for more information.
N
o
MODULE name
Procedure
1
REAR BRACKETS
D/R 001
2
SIDE BRACKETS
D/R 002
3
GRILL
D/R 003
4
FOAM FILTER
5
POWER CORD
N/A
6
power plug
D/R 004
7
FRONT HANDLE
D/R 004 bis
Working time
Procedure
Working time (mn)
D/R 001
1
D/R 002
5
D/R 003
1
D/R 004
5
