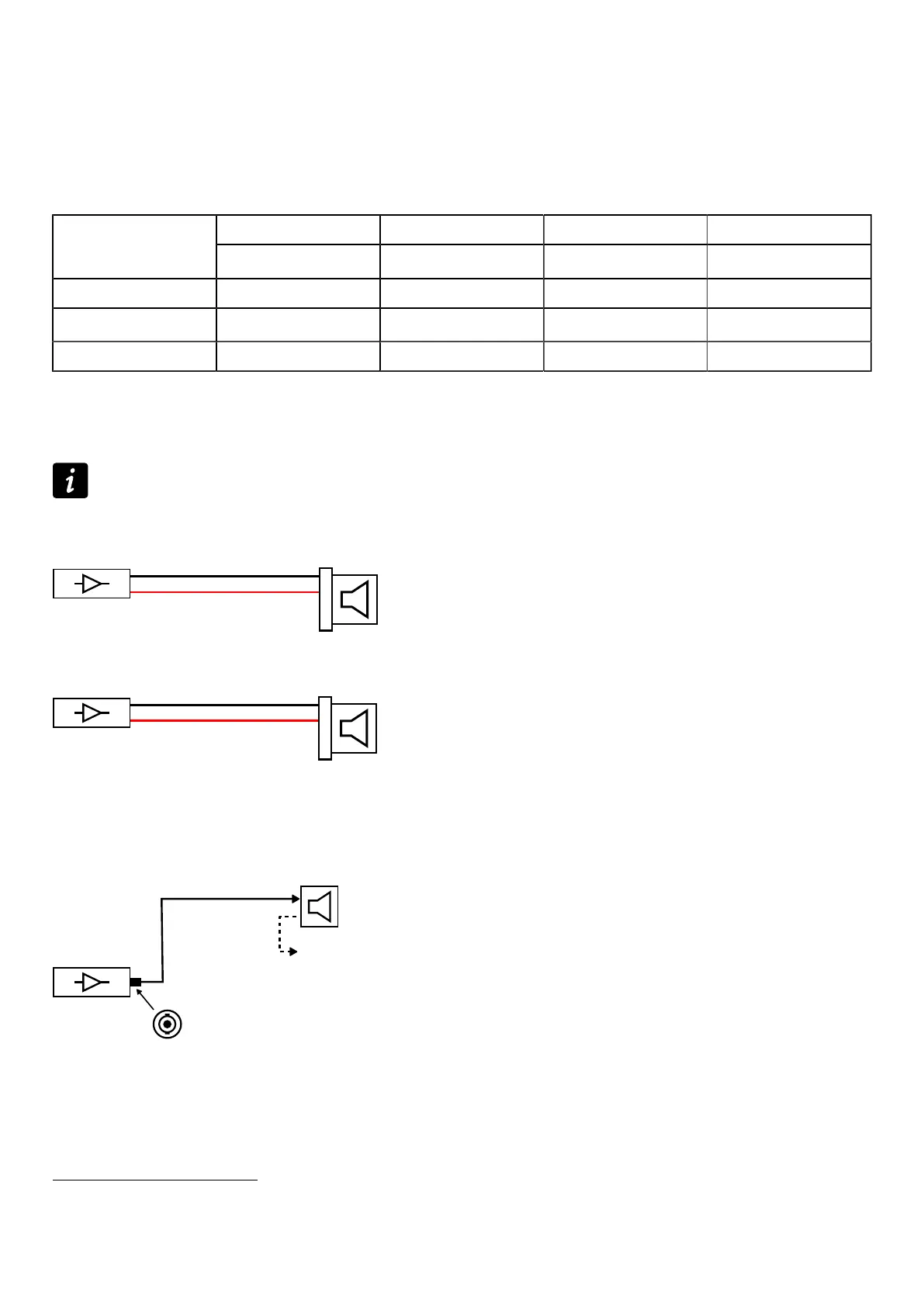

Connection to LA amplied controllers
Connection to LA amplied controllers
Enclosure drive capacity per amplied controller
Make sure the total number of connected enclosures does not exceed the maximum number of enclosure per controller
(refer to the footnote).
LA2Xi LA4X LA7.16i LA12X
per output
*
/ total per output
*
/ total per output
*
/ total per output
*
/ total
Syva 1/4 (SE), 1/2 (BTL) 1/4 1/10 3 / 12
Syva Low 1/4 (SE) 1 / 4 1 / 8
2 / 6
1
Syva Sub 1/4 (SE), 1/2 (BTL) 1 / 4 1 / 16 3 / 12
For Syva / Syva Low / Syva Sub (LA2Xi/LA7.16i)
Refer to the cabling schemes to connect the enclosures to different types of output connectors.
Refer to the LA2Xi owner's manual for more information on output congurations.
Terminal block output (LA2Xi SE / LA7.16i)
1+
1−
+
-
+
-
2.5 mm² cables
Terminal block output (LA2Xi BTL)
1+
2−
+
-
+
-
2.5 mm² cables
For Syva / Syva Low / Syva Sub (LA4X, LA12X)
Refer to the cabling schemes to connect the enclosures to different types of output connectors.
One-channel speakON output
SP
SP
1+/1-
1
LA12X can drive up to two Syva Low per output, but no more than six per controller at high level.
*
For passive loudspeakers, the value corresponds to the number of enclosures in parallel on the output. For active
loudspeakers, the value corresponds to the number of sections in parallel on the output.
Syva owner's manual (EN) version 1.0 53
