Air Diverters
Installation
Instructions
August 1999
2.11-22
One-PPiece AAir DDiverter

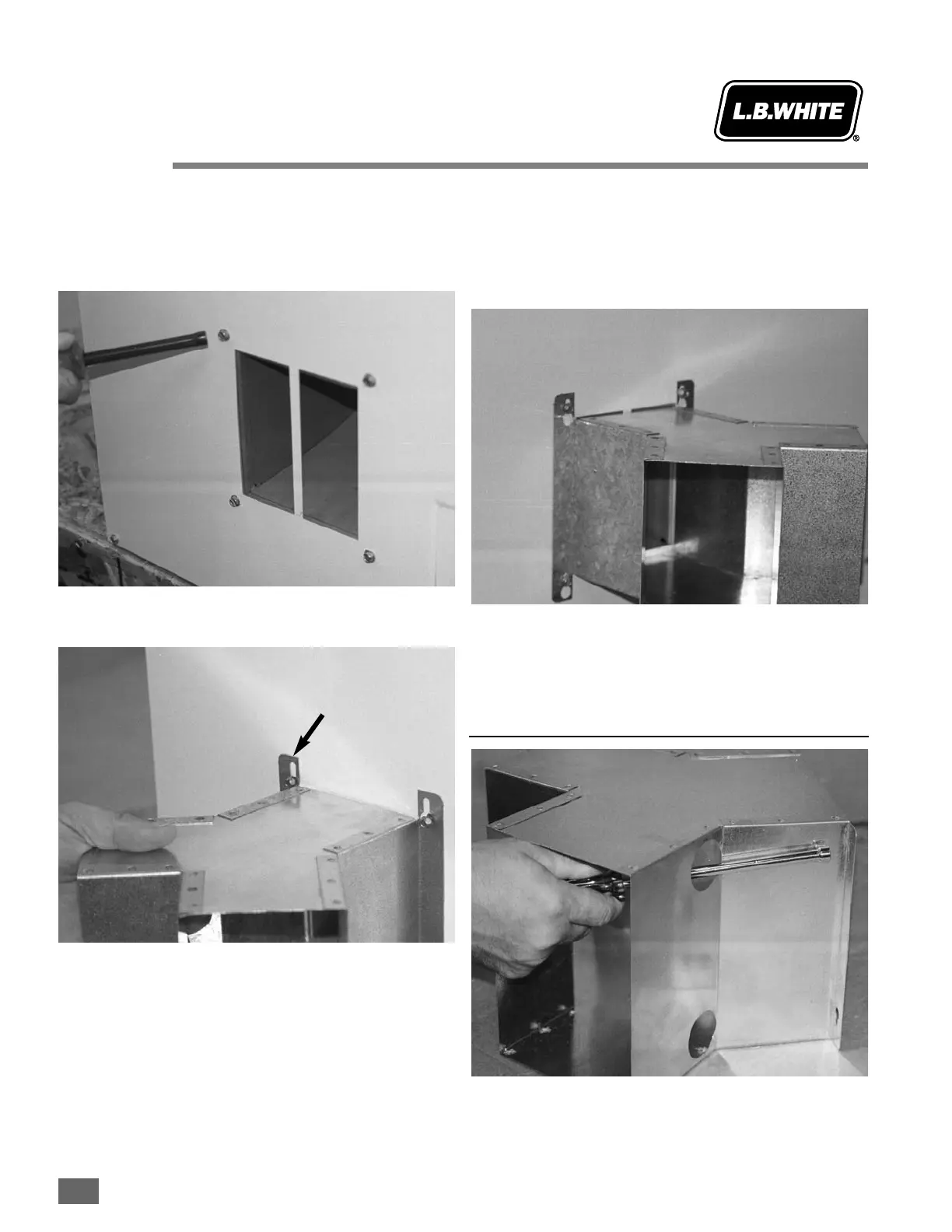

1. Loosen the four blower outlet screws.
2. Align the keyhole slots in the mounting flanges with
each outlet screw.
3. Push down on the diverter to lock it into position.
Tighten the outlet screws.
ATTENTION
Larger design air diverters for Models 377/379, 408/410,
and AB200 heaters incorporate holes in the “Y” of the
assembly to allow ease of mounting to the heater outlet.
Keyhole Slots
