L-TEC PLASMAWELD 202 - Inductors, Filters, and Transformers

20
Item Designation PLW 202 PLW 402 Designation on
Part No. Part No. circuit diagram
29 Filter board 1 270 614 00 1 270 614 00 A106
30 Thyristorbridge 1 443 024 00 1 441 530 00 A108
31 Steering roller 1 430 640 00 1 430 640 00
32 Main inductor 1 130 061 00 1 130 059 00 L101
33 HF-inductor 1 130 037 00 1 130 080 00 L102
34 Pedestal mounted roller 1 430 639 00 1 430 639 00
35 Fan Ø 300 mm 1 442 707 00 1 442 707 00 M103
36 Main transformer 1 120 266 00 1 120 256 00 T101

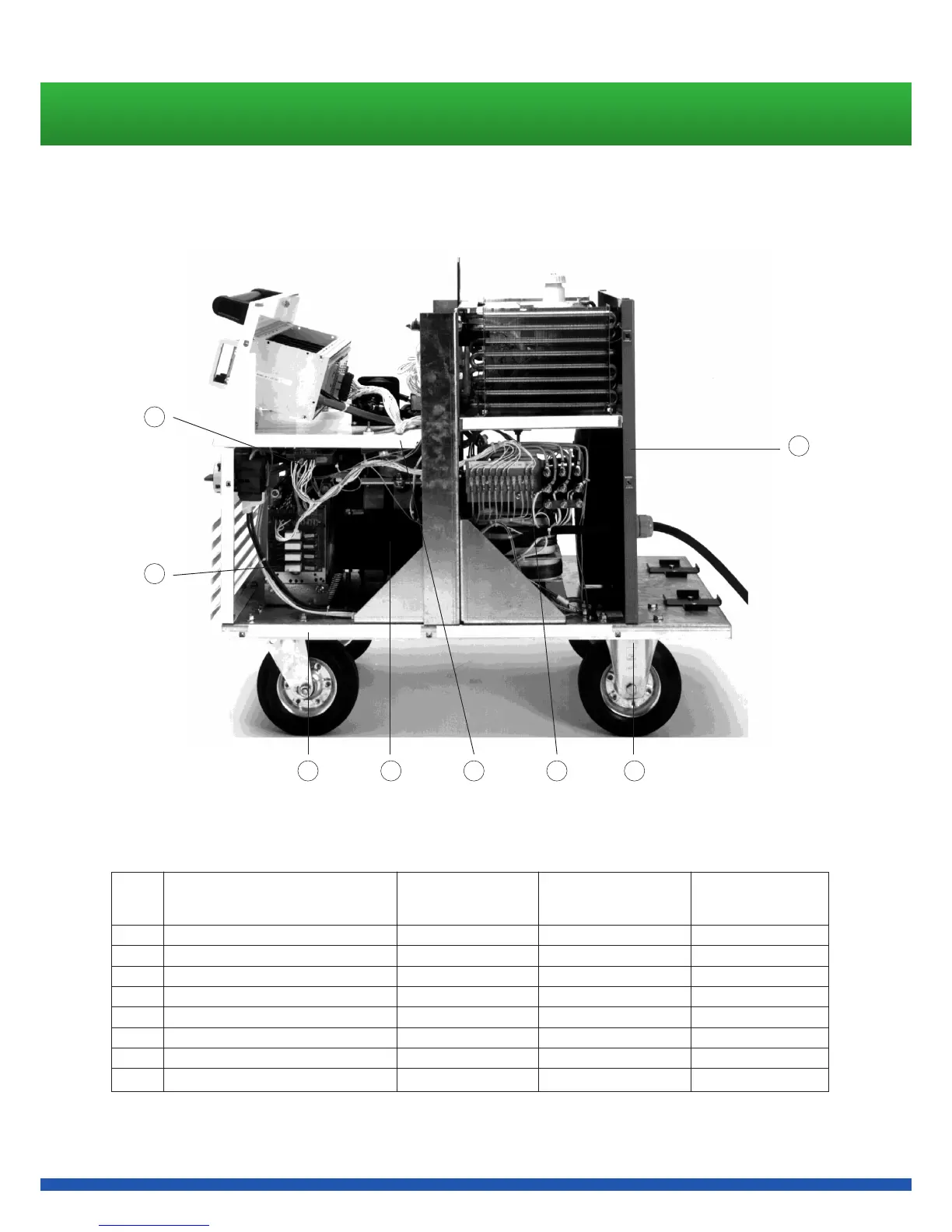

Spare parts list for power source PLW 202 / 402
29
30
35
31 32 33 36 34
