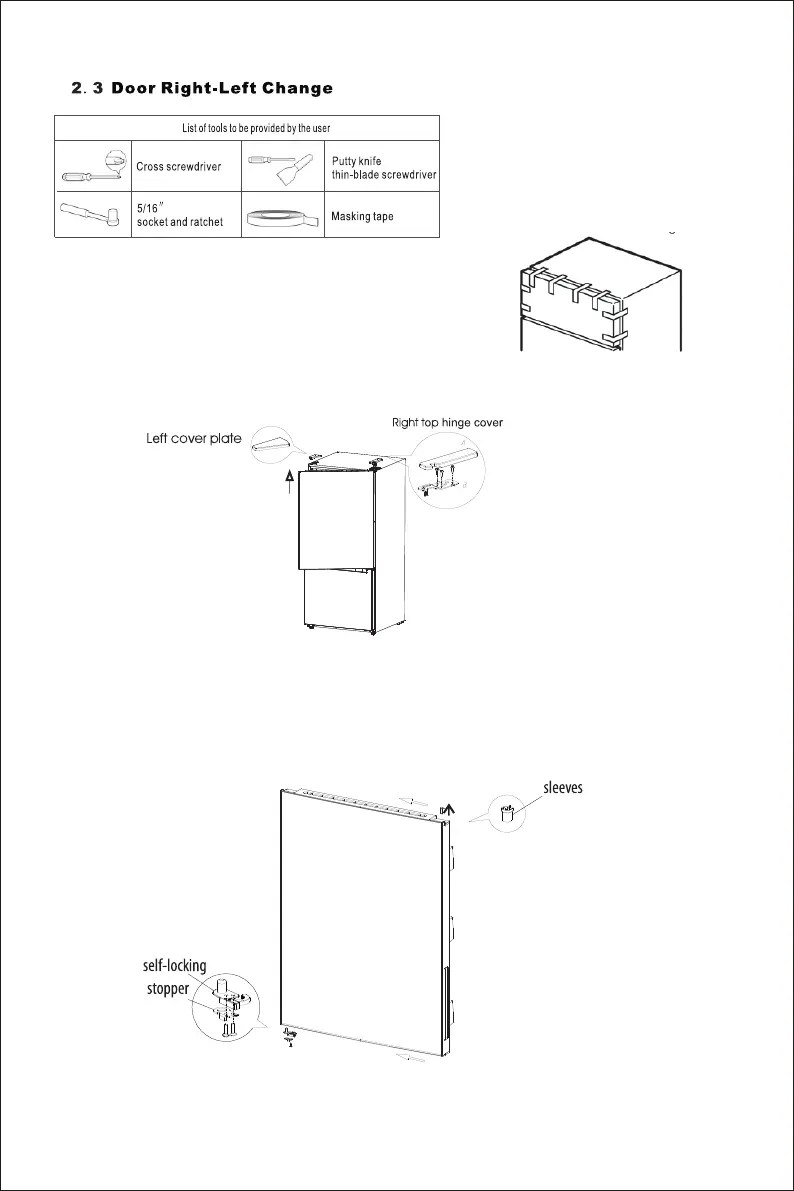

1Unplug your refrigerator and remove all food from the door shelves.
Fix the door by tape.
3)Lift the refrigerator door up and away from your refrigerator.
Remove all food from the inner door liner.
2Remove the left cover plate and the right top hinge cover, then unscrew screws and remove the
right top hinge. Keep the screws to reuse.
4)Dismantle the sleeves from the top right of doors and hole cap from top left of doors,and assemble
them on the other side.
5)Remove the refrigerator door stopper and self-locking block on the right,take out the left self-locking block
and stopper from the accessory bag in the refrigerator and installed on the left of door.
8
