INSTALLER’S MANUAL
SULLY
Page 19 of 43 – US –
SERVICE INSTRUCTION
- Lubricating gas valve.
If the gas taps tends to stick slightly, you may follow this procedure:
 1 - Shut off the valve and / or the main electrical supply of the unit.
 2 - Take out the knob corresponding to the gas valve to be greased.
 3 - Unscrew the head from the body of the burner valve.
 4 - Grease the tap shaft (High temperature lubricant, for example: SILICAL GEL ™ BARBAHL).
Caution! Any excess grease should be removed.
Reverse operation 3 to 1 (in that order) to put valve and knob back on.

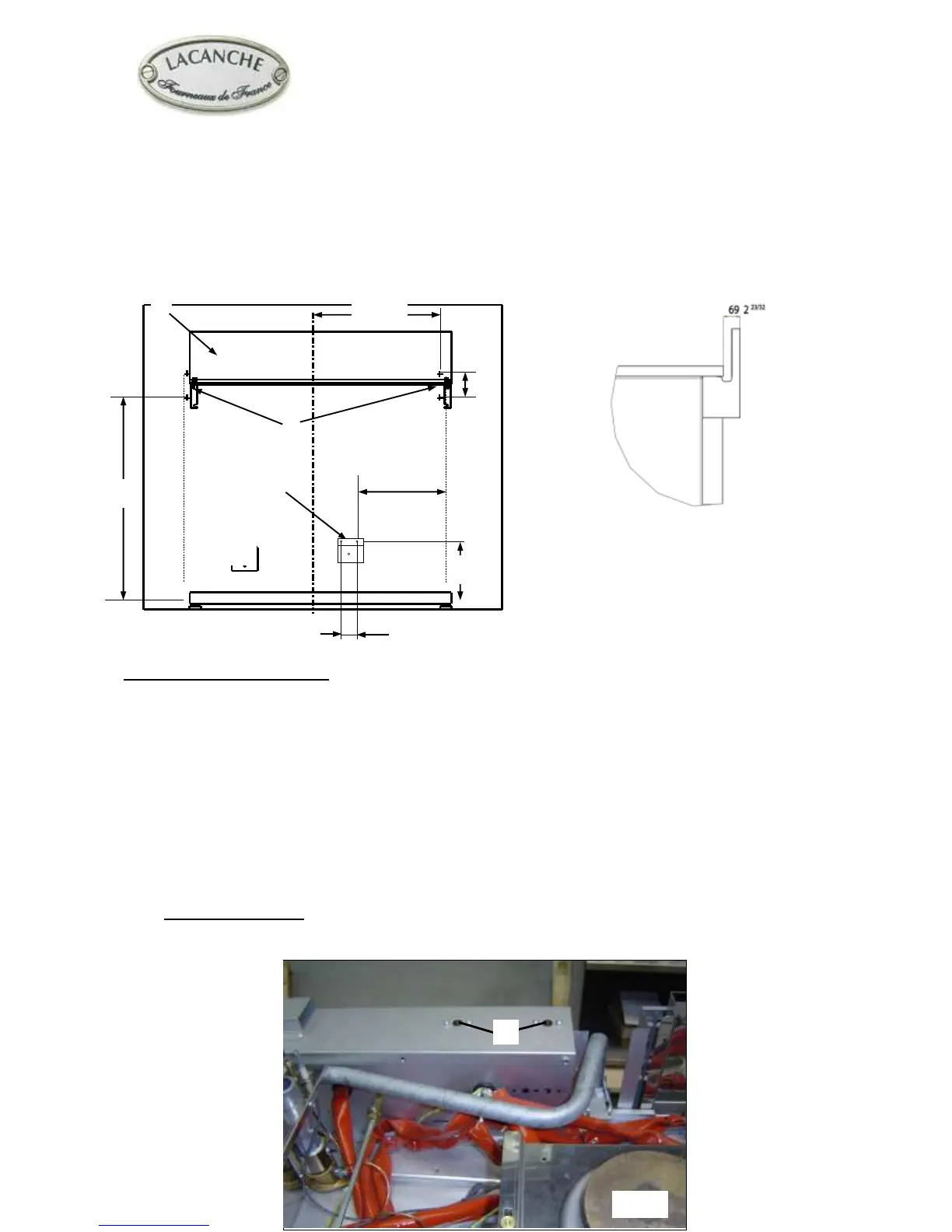

- Limiting thermostat:
To access internal components. Lift and secure top.
Press pushbutton item U (Figure 34) in order to reset the limiting thermostat.
Note: ALWAYS IDENTIFY the reason why the thermostat tripped.
R
T
93 mm
3
43
/
64
’’
772 mm
30
25
/
64
’’
443 mm
17
7
/
16
’’
206 mm
8
7
/
64
’’
60 mm
2
23
/
64
’’
685 mm
26
31
/
32
’’
Fig. 30
S
Fig. 34
U
