LADAC 4041-2 - 4041 MXC Multiplex Charger

10
MULTIPLEX
CHARGING
FULLY CHARGED
FAILURE
YELLOW
GREEN
RED
BATTERY CHARGER
A
B
C

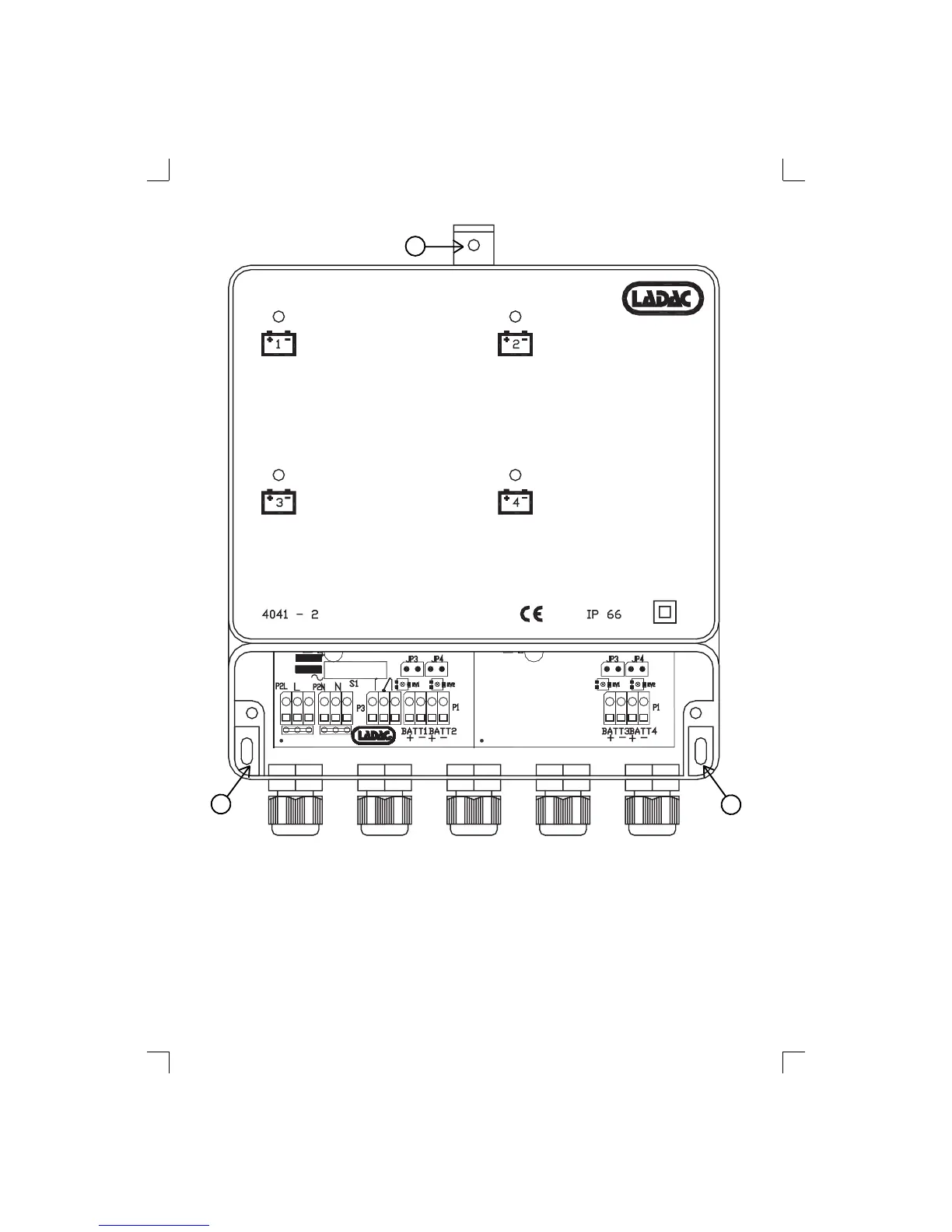

Monteringsbeskrivelse
Fest laderen til veggen med 3 skruer
1. Monter skrue i punkt A
2. Løft opp laderen til den stopper.
3. Monter skruer i punkter B og C
Installing instructions
Fasten the charger with 3 bolts
1. Mount the fi rst bolt in point A
2. Lift the charger up until it stops
3. Mount bolts in points B and C
4041MXC
