LAE AD2-5 Series User Manual

BIT25
86x82x44 mm

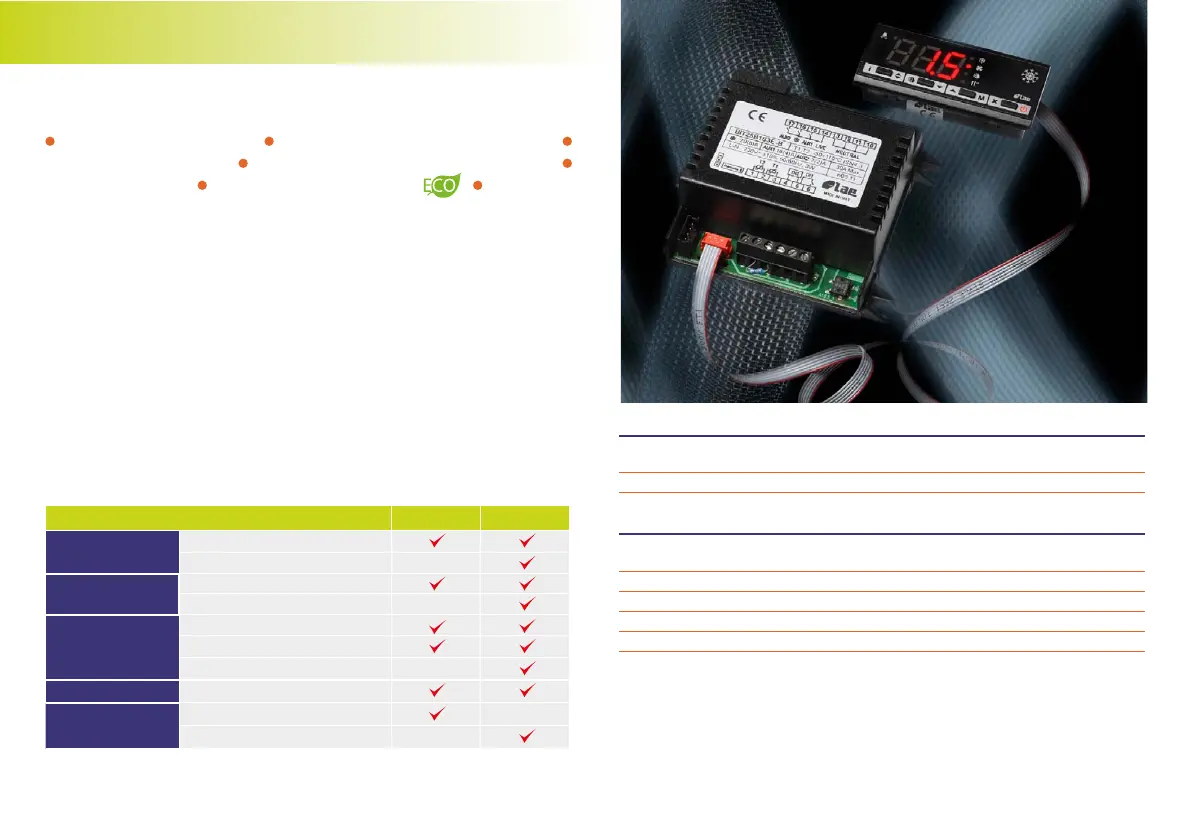

Split DefroSt Controller
Three highly rated relay outputs Alternate set of parameters for energy saving
Management of multiple alarms Option of setpoint adjustment via a potentiometer
Standby button (On/Off) Option of universal power supply Connection to
LAE supervisory systems
Upright refrigerators, bottle coolers, plug-in display cases for shops and supermarkets, cold stores,
control panels.
AppliCAtionS:
BIT25 series
A0S2E-A B1S3E-B
Thermostat
Evaporator
Functions
Temperature inputs
DI1 digital input
Power supply
Uscite
Digital inputs
Outputs
DI2 digital input
Thermostat
Auxiliary 1
Auxiliary 2
TTL
230Vac
RS485
Serial port
All models come with an alarm buzzer
On request, the AR2-5 is also available with gasket for a better protection between bezel and metal panel.
Range: -50…110°C, -58…180°F
Resolution: 0.1 / 1 °C; °F
Precision: <±0.5°C within the measurement range
Sensor type: NTC10K
Power supply: 115Vac, 230Vac or universal 115..230Vac ±10% 50÷60Hz 3W
teChniCAl DAtA
Dimensions : 77x35x20 mm (WxHxD) Panel cut-out: 71x29mm
Front protection: IP55
teChniCAl DAtA: lCD-5S DiSplAy unit
Instruction
Wiring diagrams

LAE AD2-5 Series Specifications

General

Brand	LAE
Model	AD2-5 Series
Category	Controller
Language	English
