WARNING!
YOU CAN BE KILLED IF THIS ANTENNA COMES NEAR OR IN CONTACT WITH AN ELECTRIC
POWER LINE. ALWAYS USE CAUTION WHEN INSTALLING THIS ANTENNA. STAY AWAY
FROM ALL OVERHEAD WIRES OF ANY KIND.

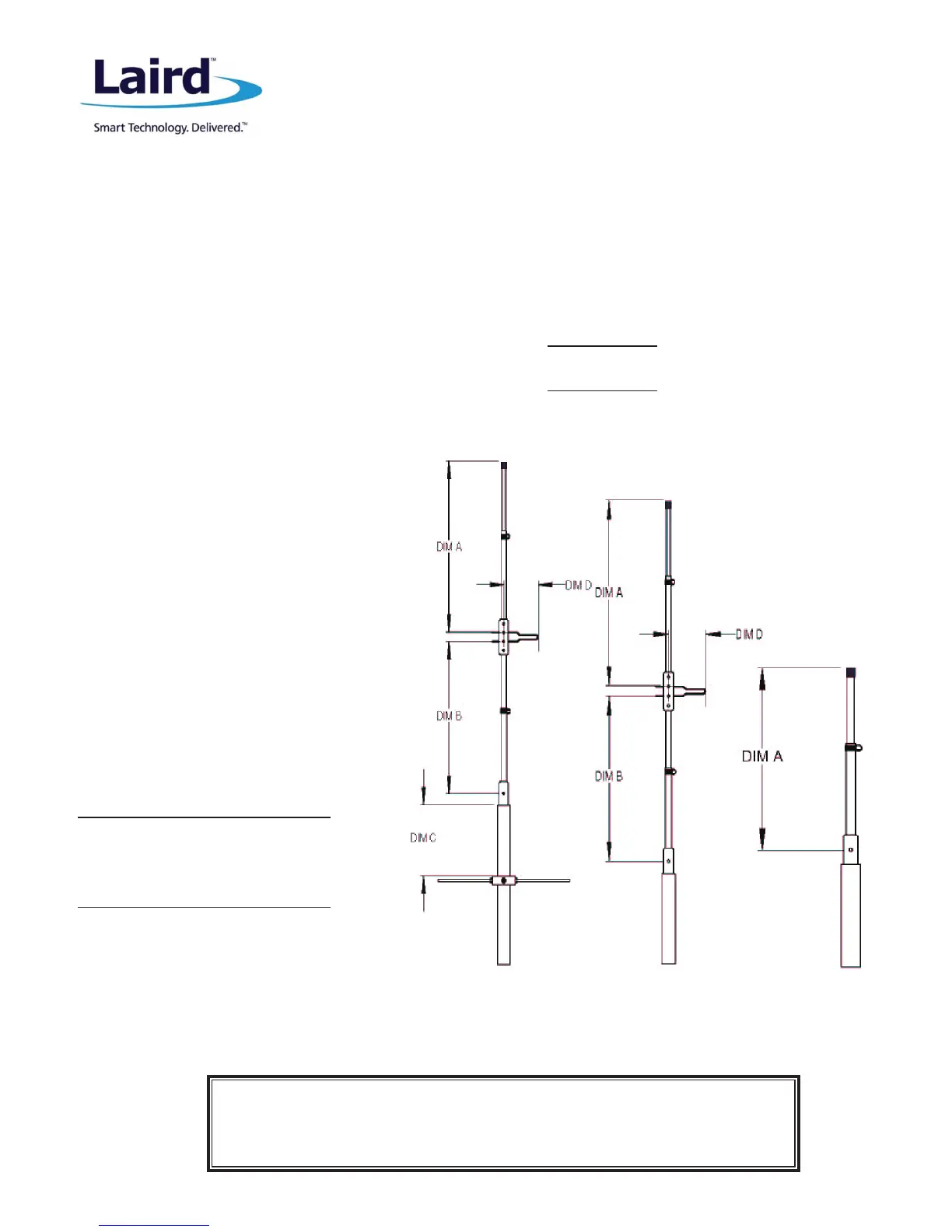

FIGURE 1
Voyager
®
5dBi
Voyager
®
2dBi
Voyager
®
6dBi
Dimension “A”: From tip of rod
to upper hairpin xing screw.
Dimension “D” Phasing Loop:
From hairpin xing screw to
end of hairpin.
Dimension “B”: From lower
hairpin xing screw to base
insulator xing screw.
Dimension “C”: From top of
sleeve to top surface of radial
yoke.
TYPICAL DIMENSIONS
(for lowest frequencies)
VG1506 @150 MHz VG1505 @ 150MHz
Dimension “A” = 51” Dimension “A” = 50¾”
Dimension “B” = 48” Dimension “B” = 50¾”
Dimension “C” = 17” Dimension “D” = 9¾”
Dimension “D” = 9¾”
VG4506 @450 MHz VG4505 @ 450MHz
Dimension “A” = 14½” Dimension “A” = 16½”
Dimension “B” = 12¾” Dimension “B” = 12¾”
Dimension “C” = 6” Dimension “D” = 3¼”
Dimension “D” = 3¾”
TYPICAL DIMENSIONS
(for lowest frequencies)
VG1502 @150 MHz
Dimension “A” = 43½”
VG4502 @450 MHz
Dimension “A” = 13¼”
