Elektrischer Anschluss
Electrical Connection
Raccordement électrique
Kap. 4

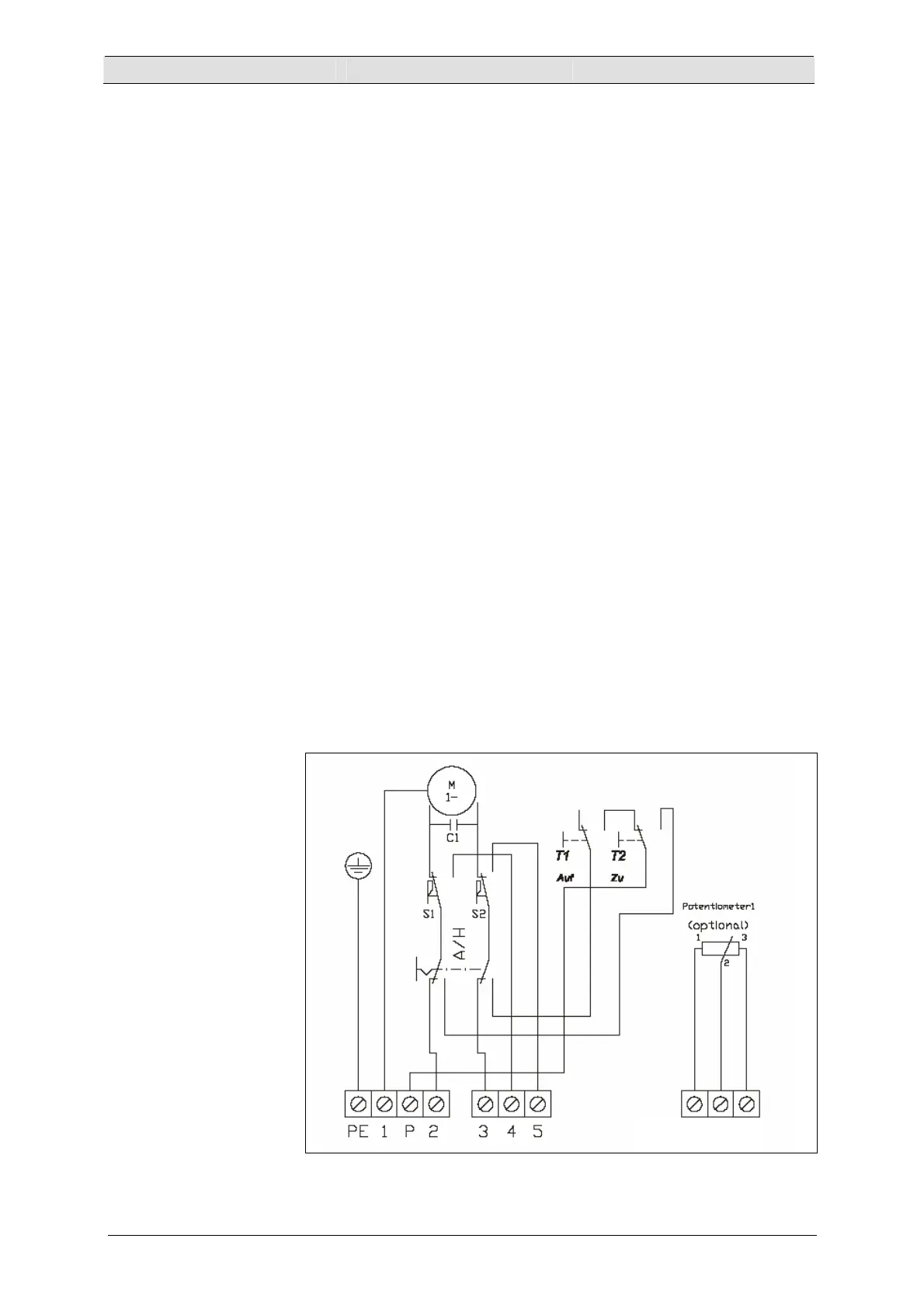

Terminal S1 (4):
If switches S1 is actuated and voltage applied to terminal no. 2,
terminal 4 provides a voltage, which can be used for control
purposes
Terminal S2 (5):
If switch S2 is actuated and voltage applied to terminal no. 3,
terminal 5 provides a voltage, which can be used for control
purposes.
Terminal X6, X7, X8:
Potentiometer 5kR (Poti 1)
Feedback at ETAMATIC/FMS/VMS
Terminal 6 to feedback (-)
Terminal 7 to feedback (center)
Terminal 8 to feedback (+)
Terminal X9, X10, X11
Potentiometer 1kR (Poti 2 - optionally)
Feedback
or
Terminal X6, X7, X8:
at type 662 R 2127 / 1k
Feedback Potentiometer 1
For the control of the drive we recommend to use relays/contactors
of the category AC 3.
Should fast reversals of direction of rotation necessarily, we
recommend relays/contactors of the category AC 4.
