CONTROL PANEL AND
INSTRUMENTS
Instrument background colour and type may vary according to the version.
The warning lights
, and are only present on Diesel versions. On diesel versions, the end of
scale for the rev counter is 6000 rpm

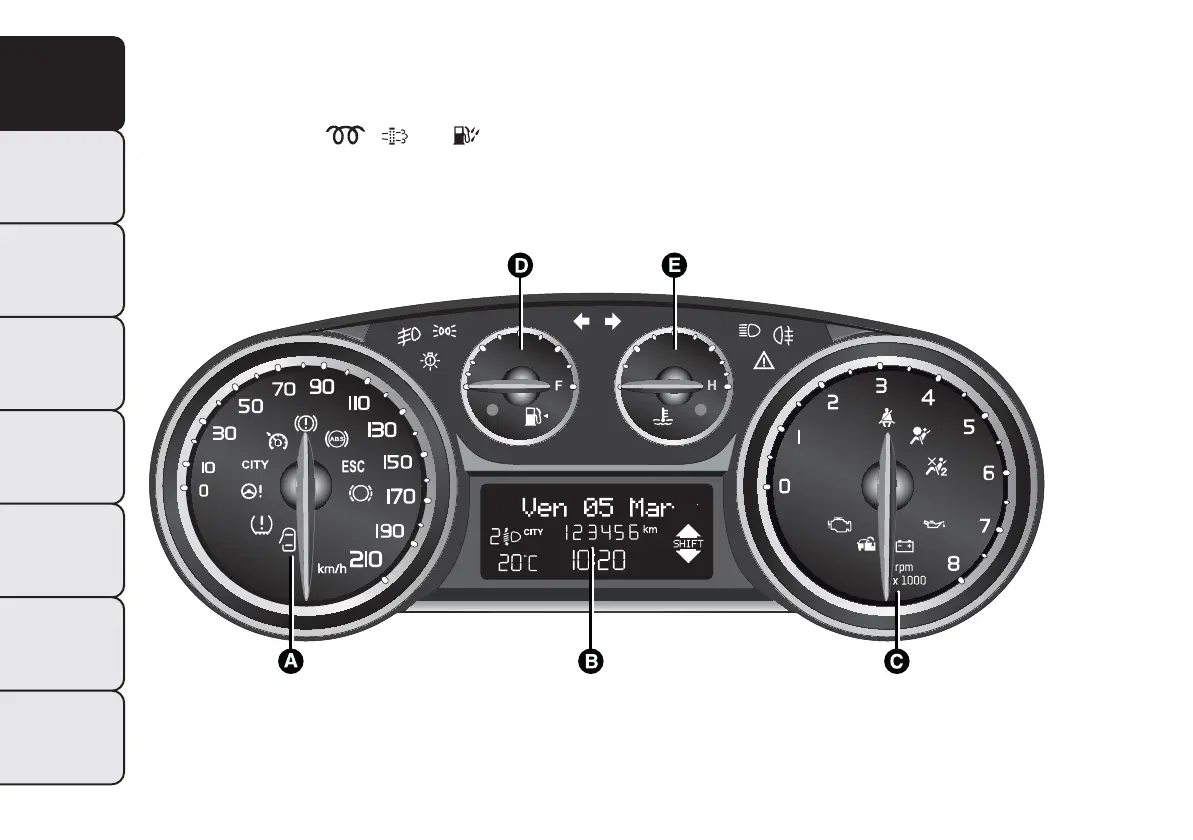

VERSIONS WITH MULTIFUNCTION DISPLAY
A. Speedometer (speed indicator) B. Multifunction display C. Rev counter D. Fuel level gauge with reserve warning
light E. Engine coolant temperature gauge with overheating warning light
fig. 2
L0F0002
6
