8° PASSAGE

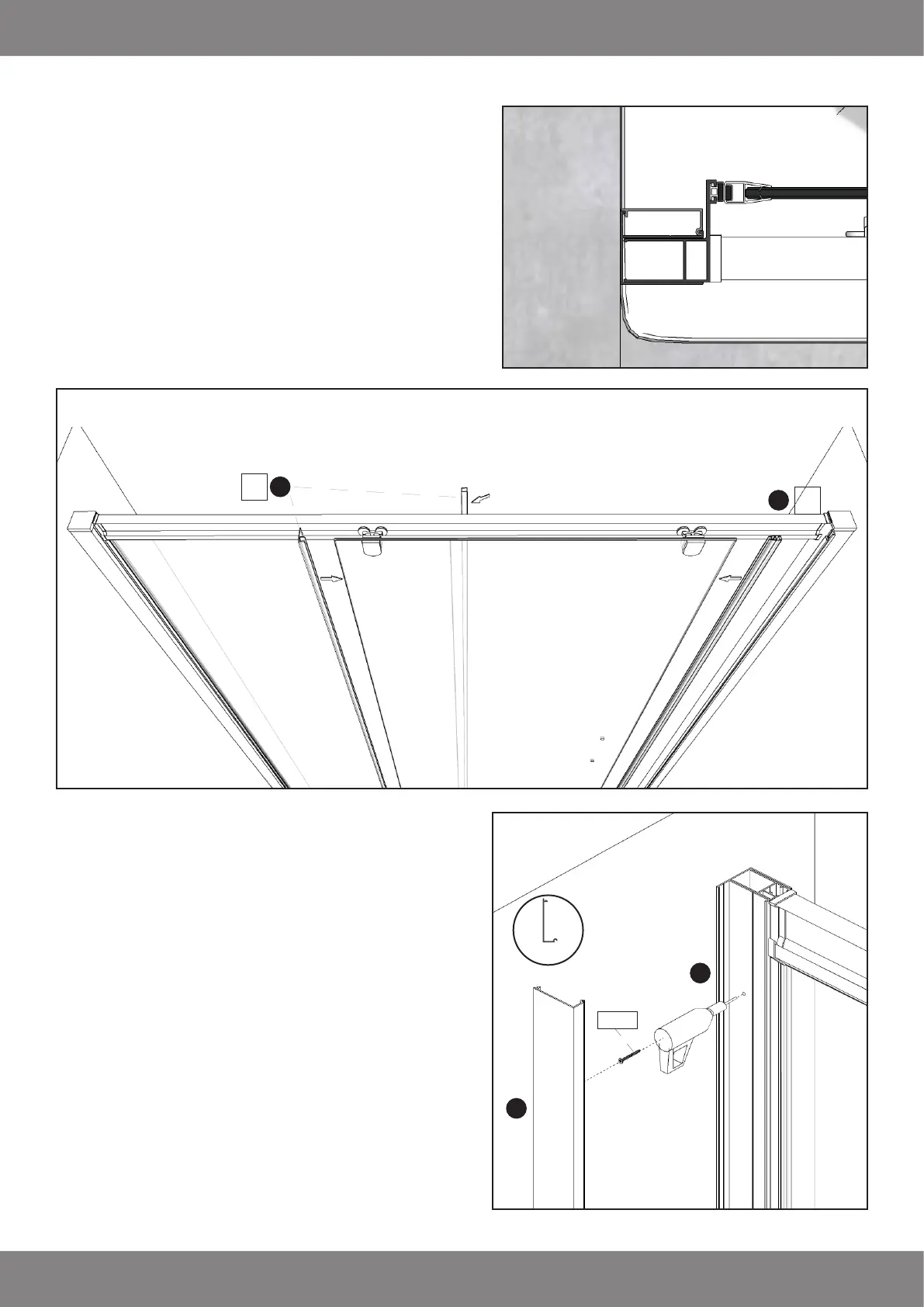

1. Install the magnetic sealing gasket on
the sliding glass.
2. Install the sealing gasket between the
fixed glass and the sliding door.
Note: there is a higher and a lower gasket
supplied, the lower one goes on the fixed
glass, the higher one in the sliding glass.
9° PASSAGE
1. Check plumbness, drill holes from the
inside to secure the shower panel to the
wall profiles using the 8x16 screws.
IMPORTANT: maximum adjustment 2.5 cm
Note: A total of 4 holes must be drilled, 2 ho-
les per profile, 1 at the top and 1 at the bot-
tom.
2. Cover the wall profile of the fixed wall
with the aluminium cover to conceal the
fixing screws and to protect them from
water.
