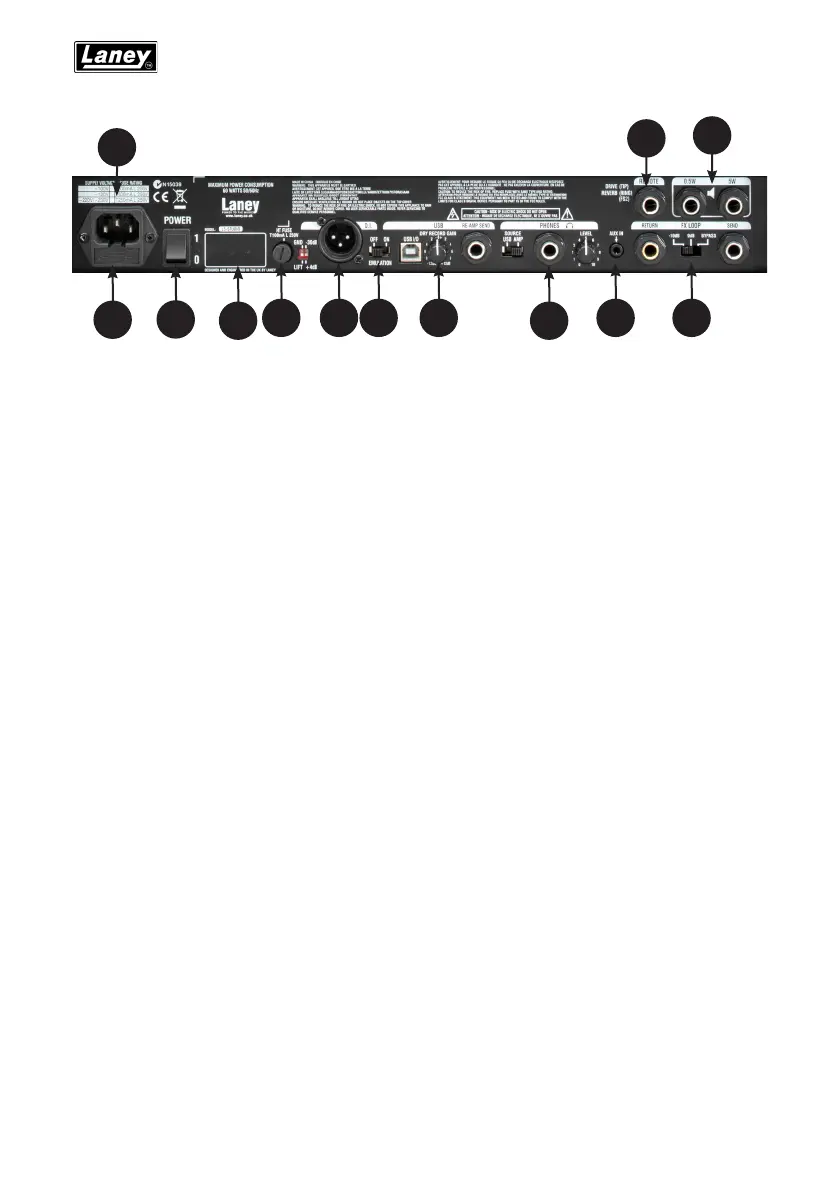

L5-STUDIO FEATURES
14
24
25
POWER INLET SOCKET: POWER INLET SOCKET: Connect to your power source. Make
sure the specied voltage is correct for your country!
POWER FUSE: This drawer contains the main safety fuse for the unit. USE ONLY THE
CORRECT SIZE AND RATING OF FUSE AS SPECIFIED ON THE PANEL. If a fuse blows or
fails and a replacement of the same size and rating is installed and it in-turn blows, the
amplier has suffered a malfunction internally and needs immediate service from a qualied
technician. DO NOT TRY USING A FUSE OF HIGHER RATING. This may cause serious,
irreparable damage to the amplier and presents a serious re hazard. The mains fuse
ratings are detailed in the specication section at the rear of this manual.
POWER: Main power switch for unit.
SERIAL NO: Displays the model and serial number of the unit.
HT FUSE: This fuse protects the DC power to the tubes within the amplier. USE ONLY
THE CORRECT SIZE AND RATING FUSE AS SPECIFIED ON THE PANEL. If the HT fuse
blows or fails, and a replacement of the same size and rating is installed and it in turn
blows, the amplier has suffered a malfunction. Firstly check the output tubes and replace
faulty ones if required. If the tubes aren’t the cause of the problem, the amplier should be
checked out by a qualied technician. DO NOT TRY USING A FUSE OF HIGHER RATING.
Again, this may cause serious, irreparable damage to the amplier. Fuses are designed to
protect, do not take chances.
DI: This connector provides balanced direct feed primarily go to a PA sound desk. It carries
an adjacent ground lift switch to remove any hum loop problems. It is sourced from post
output section and can be used with or without a speaker load. The socket has a fully bal-
anced output, (switchable +4dB/-30dB & Ground Lift) for maximum noise reduction. You
may use this socket to record without a loudspeaker connected for silent recording as there
is a protective load applied when the speaker socket (25) is not used
