Chapter 2: Motherboard Information

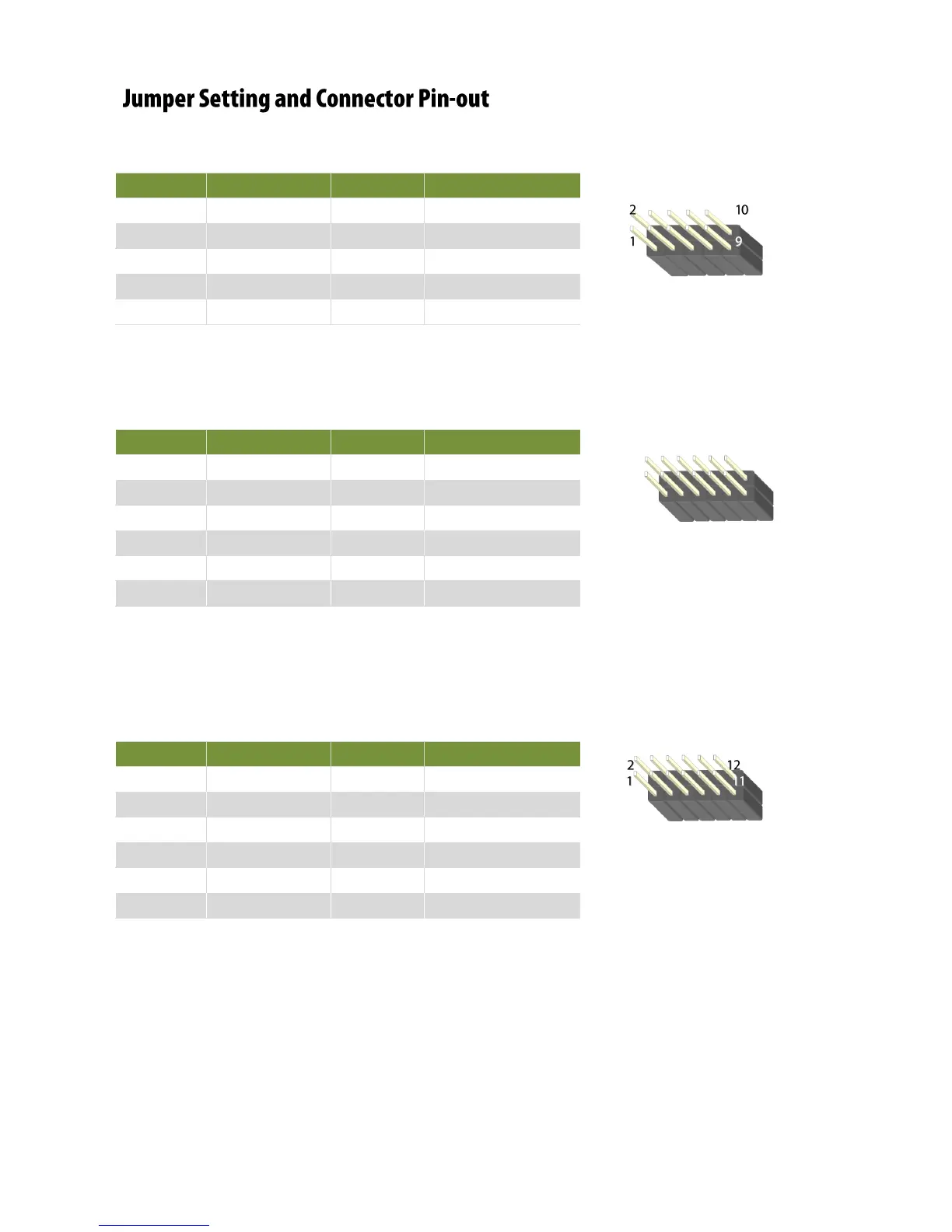

JLCM1: USB-type front LCD Message Display Module (LCM).
MGT1: RJ 45 LAN management port connector by Intel I210 LAN
MGT2: RJ 45 LAN management port connector
Pin
Description
Pin
Description
1
P5V_SB
2
P5V
3
USB20_N5
4
5
USB20_P5
6
HDD_LED#
7
GND
8
GND
9
NTXD2
10
NRXD2
Pin
Description
Pin
Description
1
LAN2_MDX+0
2
LAN2_MDX-0
3
LAN2_MDX+1
4
LAN2_MDX-1
5
LAN2_MDX+2
6
LAN2_MDX-2
7
LAN2_MDX+3
8
LAN2_MDX-3
9
LAN2_100#
10
LAN2_ACTR#
11
LAN2_1000#
12
P3V3_AUX
Pin
Description
Pin
Description
1
MGT_MDIP_0
2
MGT_MDIN_0
3
MGT_MDIP_1
4
MGT_MDIN_1
5
MGT_MDIP_2
6
MGT_MDIN_2
7
MGT_MDIP_3
8
MGT_MDIN_3
9
MGT_LAN_100#
10
MGT_LAN_ACT#
11
MGT_LAN_1G#
12
P3V3_AUX
2 12
1 11
