CFT-5
Where to Insert the CFT-5
The CFT-5 will give consistent measurements of containment force on pallet/loads wrapped in stretch lm. These instructions
show the user how to use this tool. Photo 1 below identies the specic parts that make up the CFT-5.

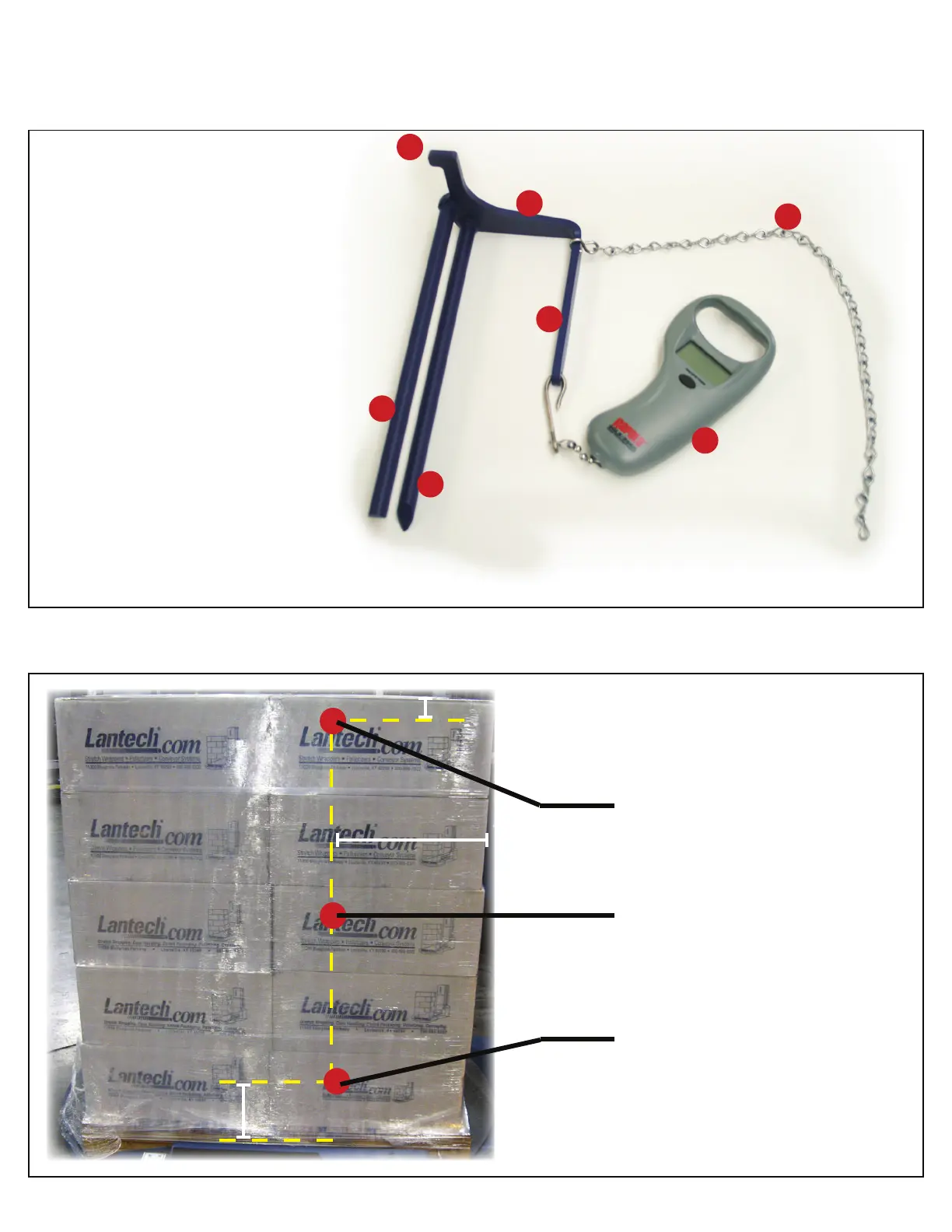

Photo - 1 The CFT-5 Tool
1
4
5
6
2
3
7
CFT-5 Parts
1. Indicator Foot
2. Top Plate/Decal
3. Measuring Chain
4. Fulcrum Finger
5. 10” Piercing Finger
6. Scale Lever
7. Scale
Photo - 2 Measure three locations
Top: 2” from top, 22” from right
side of pallet.
Middle: 1/2 the height of pallet
from the top, 22” from the
right side of pallet
Bottom: 9” above lowest lm
cable, 22” from right side
of pallet
2”
22”
9”
