This document describes the LAOTIE ES8 (F102) 48V15.6AH Electric Scooter, a personal transport vehicle designed for adult use. It emphasizes safety, proper usage, and maintenance to ensure a stable and comfortable riding experience.

Function Description

The LAOTIE ES8 is an electric scooter designed for personal transportation. It features a motor-assisted ride, with a safe start design that requires the scooter to be in motion (above 0 speed) before the motor engages, preventing accidental acceleration. The scooter includes a handlebar for steering and control, a seat for comfortable riding, and a folding mechanism for portability and storage. It is equipped with both front and rear suspension for a smoother ride, disc brakes for effective stopping, and lights (front, turn, and brake/turn) for visibility and safety. The display screen provides essential information such as speed, power mode, and battery level.

Important Technical Specifications

Brand: LAOTIE
Model: ES8
Tyre Size: 10 inch
Tyre Type: Off-road
Motor Power: 500W
Max Load: 120KG
Lithium Battery Capacity: 48V/15.6AH
Endurance Mileage: 55 KM
Charging Time: 7-8H
Climbing Gradient: 15°
Brake Type: Disc
Material: Die-casting Aluminium
Charger Input: AC 100-240V~50/60Hz
Charger Output: DC 54.6V=2.0A
Unfolded Size: 11255501180MM
Folded Size: 1125485235MM
Net Weight: 24.5KG

Usage Features

Unfolding:

Front Tube: Press the folding fixation to loosen, lift the front tube, and turn the knob clockwise to tighten.
Handlebars: Unfold handlebars upward until they lock into place. Verify they are not loose. Adjust handlebar height by loosening the lock, setting the desired height, and tightening the lock.
Seat Post: Loosen the bolt and slide it to the right side while lifting the seat post. Do not release the bolt until the seat post locks in place, then tighten the bolt.
Seat: Lift the seat until it locks in place. Loosen the bolt to adjust seat height, then tighten. Verify the seat is locked by pulling upward.
- Warning: Always ensure handlebars, front tube, seat post, and seat are locked in place before riding. Shake them to confirm they are not loose.

Folding:

Seat: Press the folding button to fold the seat. Loosen the bolt to lower the seat to its lowest position. Loosen the bolt, slide it to the right, and put down the seat post. Move the seat to the right side of the pedal.
Handlebars: Hold the bushings and pull them outward to fold the handlebars downward.
Front Tube: Adjust handlebar height to the highest position. Loosen the knob to fold down the front tube onto the folding fixation. Verify the front tube is locked by pulling upward.

Riding Instruction:

Before Riding: Choose a suitable venue, unfold the scooter, and adjust handlebar height.
Starting: Press the power button to turn on. The default speed is gear level 1. The motor starts only when the scooter's speed is above 0. To start, place one foot on the pedal, kick scoot with the other foot, and then smoothly use the acceleration handle once in motion.
During Ride: Adjust gear level (1 to 3) as needed. Use lights and horn according to road conditions. Cruise control activates when the acceleration handle is pressed with the same pressure for 8 seconds. Be aware of sudden obstacles and control speed.
Braking: Use the rear brake handle for normal braking. Use the front brake handle or your foot for emergency braking. Greater pressure increases braking force. Be cautious of hard braking, which can cause slipping, loss of balance, falls, and tire damage.

Display and Controls:

Left Handlebar: Left brake, Front light/Turn light/Horn.
Right Handlebar: Right brake, Accelerator.
Display: Shows Turn light indicator, Cruise indicator, Bluetooth indicator (optional), Front light indicator, Trouble light indicator, Low speed mode indicator (ECO), Power mode indicator (POWER), Speed mode indicator (SPEED), Speed indicator, and Power indicator.
Buttons:
- MODE (11): Short press to switch between ECO, POWER, or SPEED modes.
- Power (12): Short press to turn on/off pedal light; long press to turn on/off scooter.

Maintenance Features

Tires:

The scooter uses rubber elastic tires. Replace worn or punctured tires promptly.
Contact an official distributor for original tire replacements.
Inspect tires and check screw tightness monthly; tighten if necessary.

Battery:

Equipped with a Lithium battery.
Average lifespan: 500 cycles (up to 600+ with normal use/maintenance).
Fully charge the battery before first use.
Avoid totally depleting the battery; maintain at least 10% charge.
For optimal performance, keep battery charged at minimum 50%.
Do not leave a significantly discharged battery for hours; charge it timely.
For long-term storage, ensure battery is 40-50% charged.
Charge the scooter at least once every 30 days.
Use only the original charger.
Do not expose the scooter to temperatures below 0°C or direct sun.
Keep the battery dry. Adverse environmental conditions can damage it.
Handle Lithium batteries with extreme caution; improper charging, damage, or overheating can cause fire.
Do not leave the scooter charging unsupervised or overnight.
Supervise charging to prevent overcharging.
Do not use or leave a damaged battery unattended; follow disposal protocols.

Charger:

The dedicated charger has a charging protection timing function.
Charging Process:
- Open the charging port cover on the scooter.
- Insert the charger output connector into the charging port.
- Insert the charger input power plug into a power socket (AC100V-240V).
- The charger light will be red during charging and turn green when fully charged.
- Charge the battery in a dry and ventilated environment.

Warranty:

Scope: 12 months for non-electric parts and the electric scooter, 6 months for the battery, under normal installation, use, service, and maintenance.
Eligibility: Only consumers purchasing from an authorized distributor or retailer. Non-transferable.
Limitations: Does not cover commercial use, accidents, abuse, neglect, shock, heat/humidity beyond specifications, improper installation/operation/maintenance/modification, misuse contrary to manual instructions, or malfunctions caused by other equipment.
Void if: Product returned with removed, damaged, or tampered labels or unauthorized alterations.
Exclusions: Does not cover international warranty shipping costs.
Application: Claims must comply with warranty terms and proper return procedure. Contact the distributor or retailer for service.

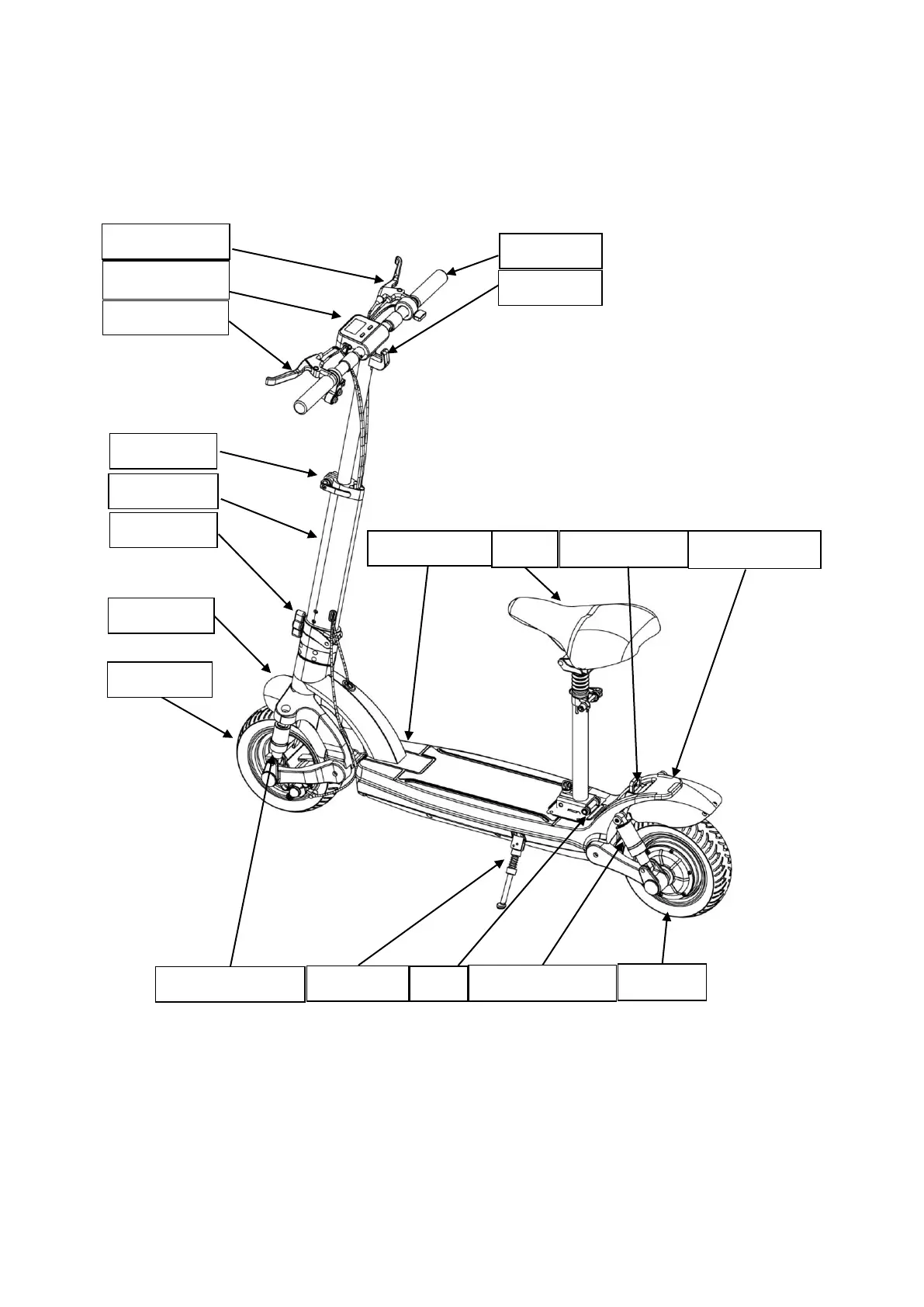

LAOTIE ES8 - Diagram
