Larsen & Toubro U-POWER Omega UW-MTX 3.5 User Manual

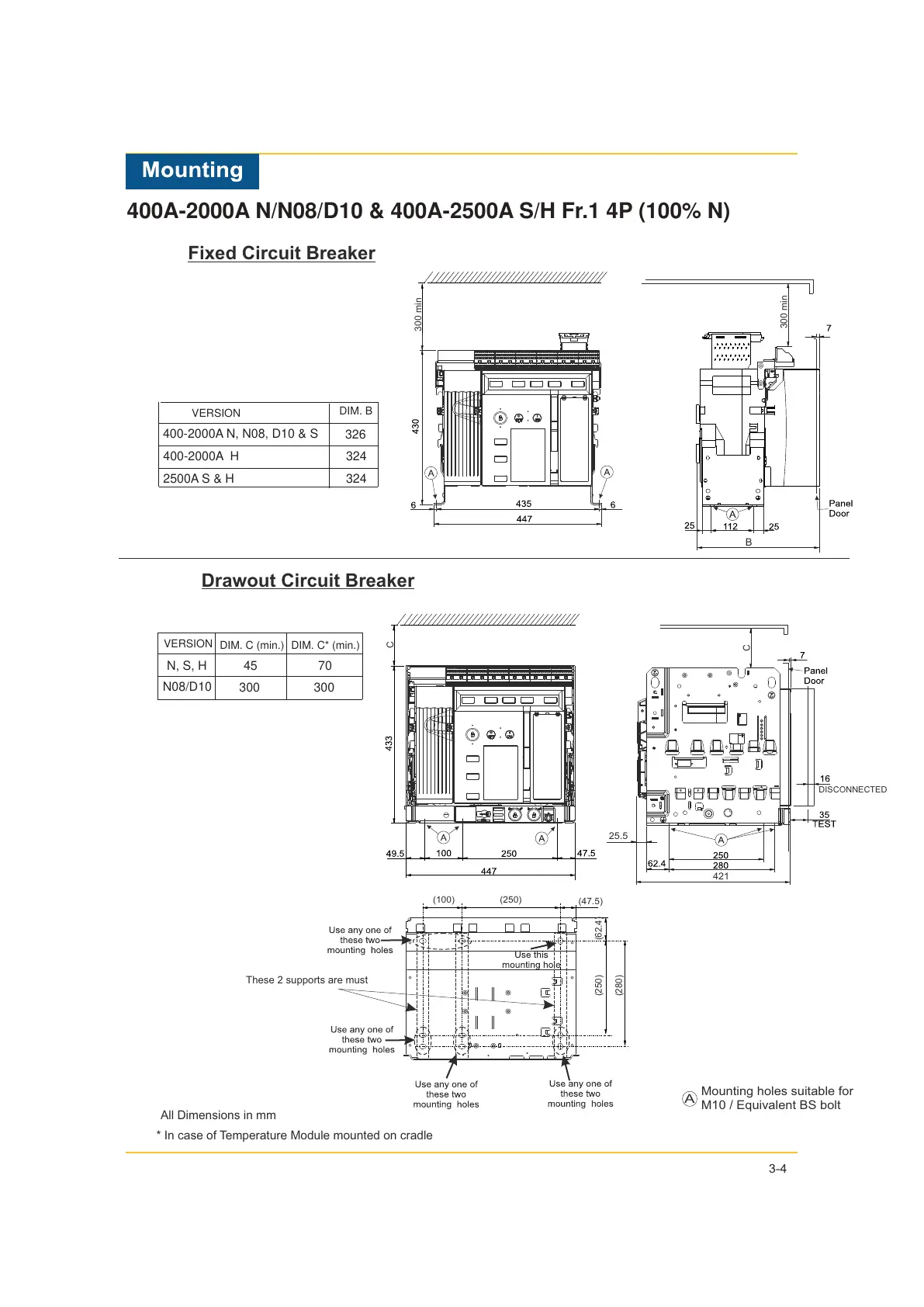

Mounting holes suitable for
M10 / Equivalent BS bolt
Fixed Circuit Breaker
Drawout Circuit Breaker
A
(250)
(47.5)
(250)(62.4) (280)
(100)
25.5
421
DISCONNECTED
These 2 supports are must
C
C
B
300 min
300 min
All Dimensions in mm
* In case of Temperature Module mounted on cradle
400A-2000A N/N08/D10 & 400A-2500A S/H Fr.1 4P (100% N)
VERSION
DIM. B
400-2000A N, N08, D10 & S
326
400-2000A H
2500A S & H
324
324
VERSION
DIM. C (min.) DIM. C* (min.)
N, S, H 7045
N08/D10
300300
