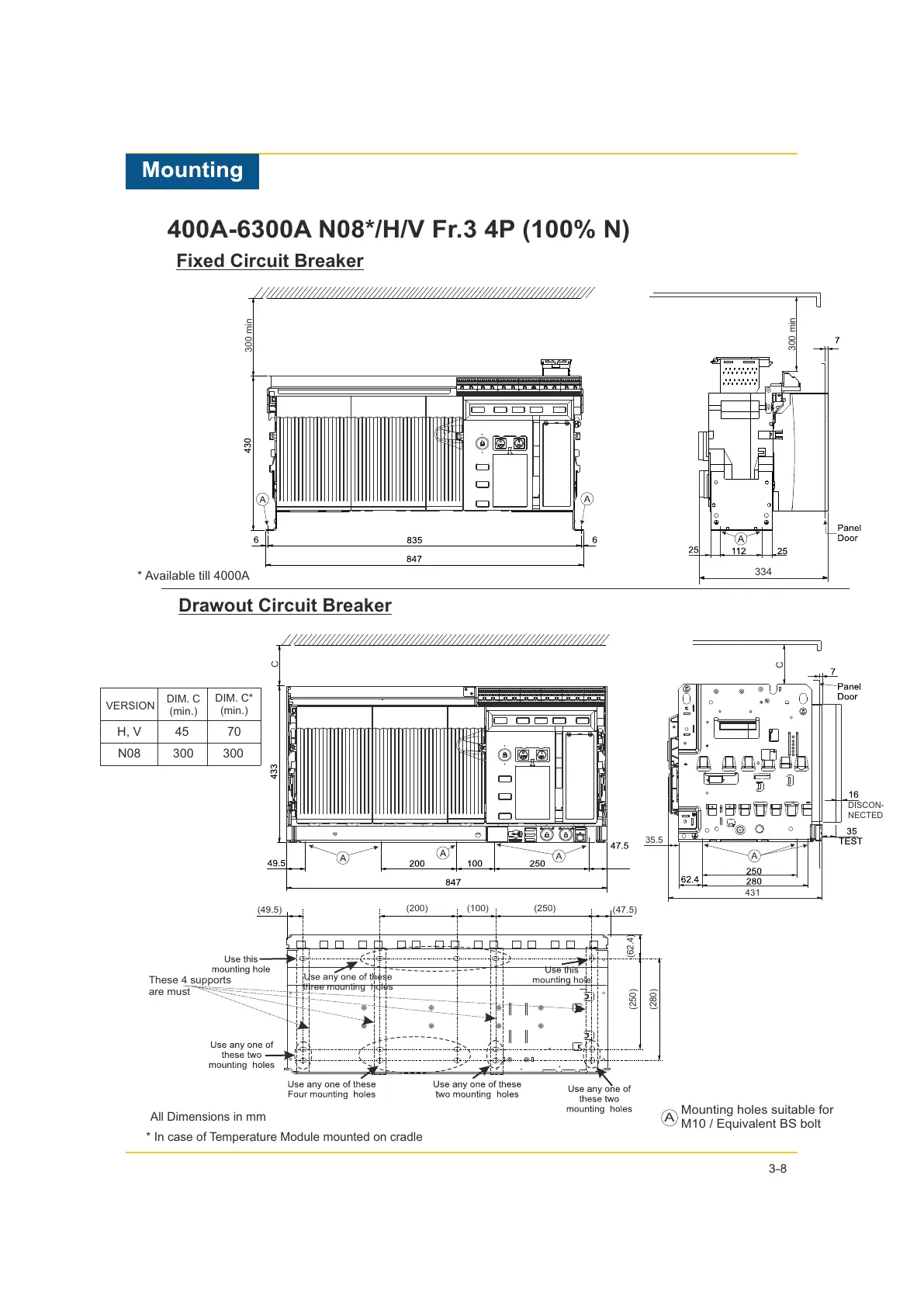

400A-6300A N08*/H/V Fr.3 4P (100% N)
Fixed Circuit Breaker
Mounting holes suitable for
M10 / Equivalent BS bolt
Drawout Circuit Breaker
A
334
300 min
300 min
These 4 supports
are must
(250)
(47.5)
(250)
(62.4)
(280)
(100)
(49.5)
(200)
431
35.5
C
C
DISCON-
NECTED
* Available till 4000A
All Dimensions in mm
* In case of Temperature Module mounted on cradle
VERSION
DIM. C
(min.)
DIM. C*
(min.)
H, V7045
N08
300300
