Larsen & Toubro U-POWER Omega UW-MTX 3.5 User Manual

3-14

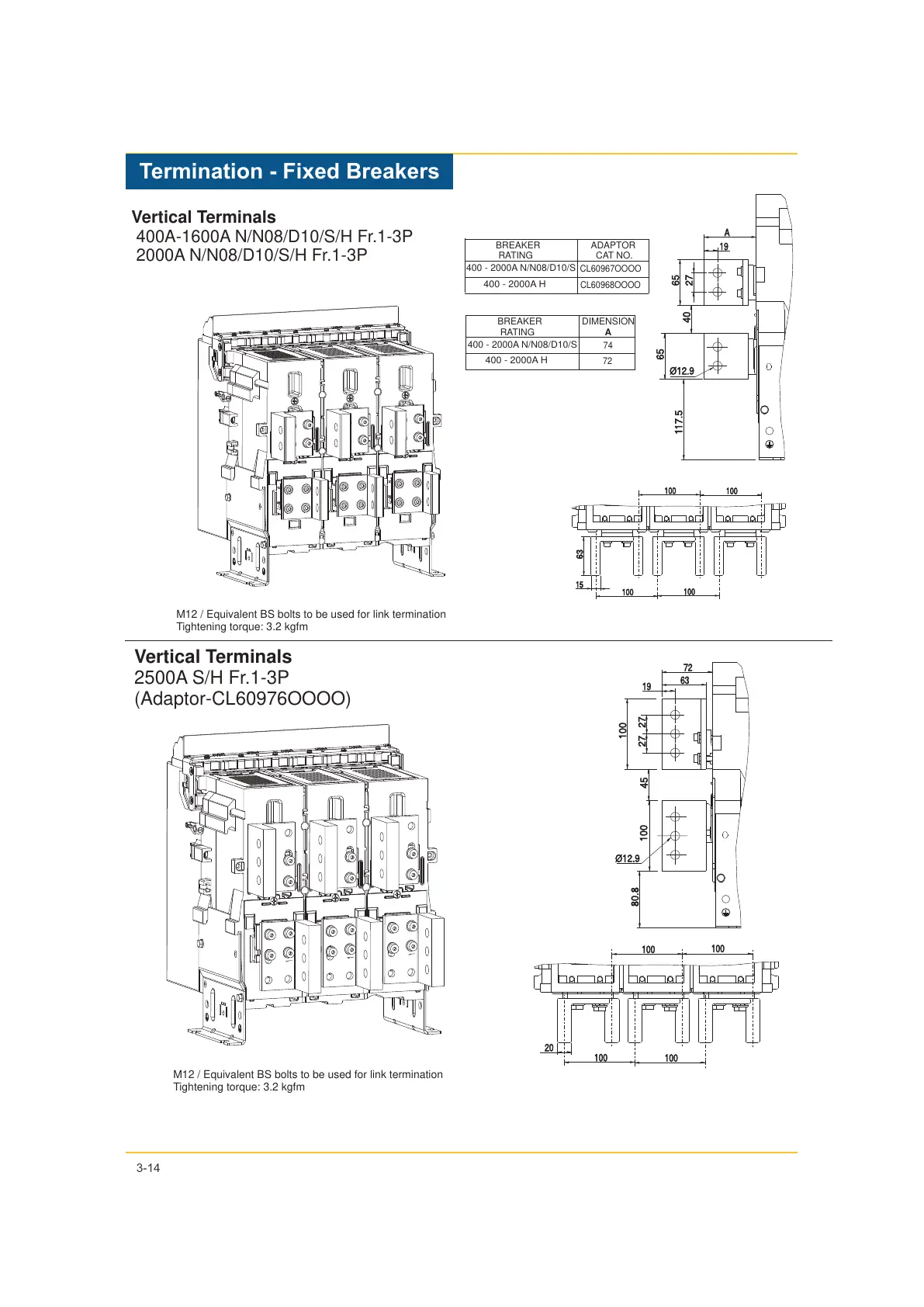

Termination - Fixed Breakers
Vertical Terminals
2500A S/H Fr.1-3P
(Adaptor-CL60976OOOO)
M12 / Equivalent BS bolts to be used for link termination
Tightening torque: 3.2 kgfm
M12 / Equivalent BS bolts to be used for link termination
Tightening torque: 3.2 kgfm
Vertical Terminals
400A-1600A N/N08/D10/S/H Fr.1-3P
2000A N/N08/D10/S/H Fr.1-3P
100
100
100
100
15
63
A
Ø12.9
65
40
117.5
27
19
65
100
100
100
100
20
2727
100
19
63
72
100
45
80.8
Ø12.9
400 - 2000A N/N08/D10/S
400 - 2000A H
CL60967OOOO
CL60968OOOO
BREAKER
RATING
ADAPTOR
CAT NO.
400 - 2000A N/N08/D10/S
400 - 2000A H
74
72
BREAKER
RATING
DIMENSION
A
