3-20

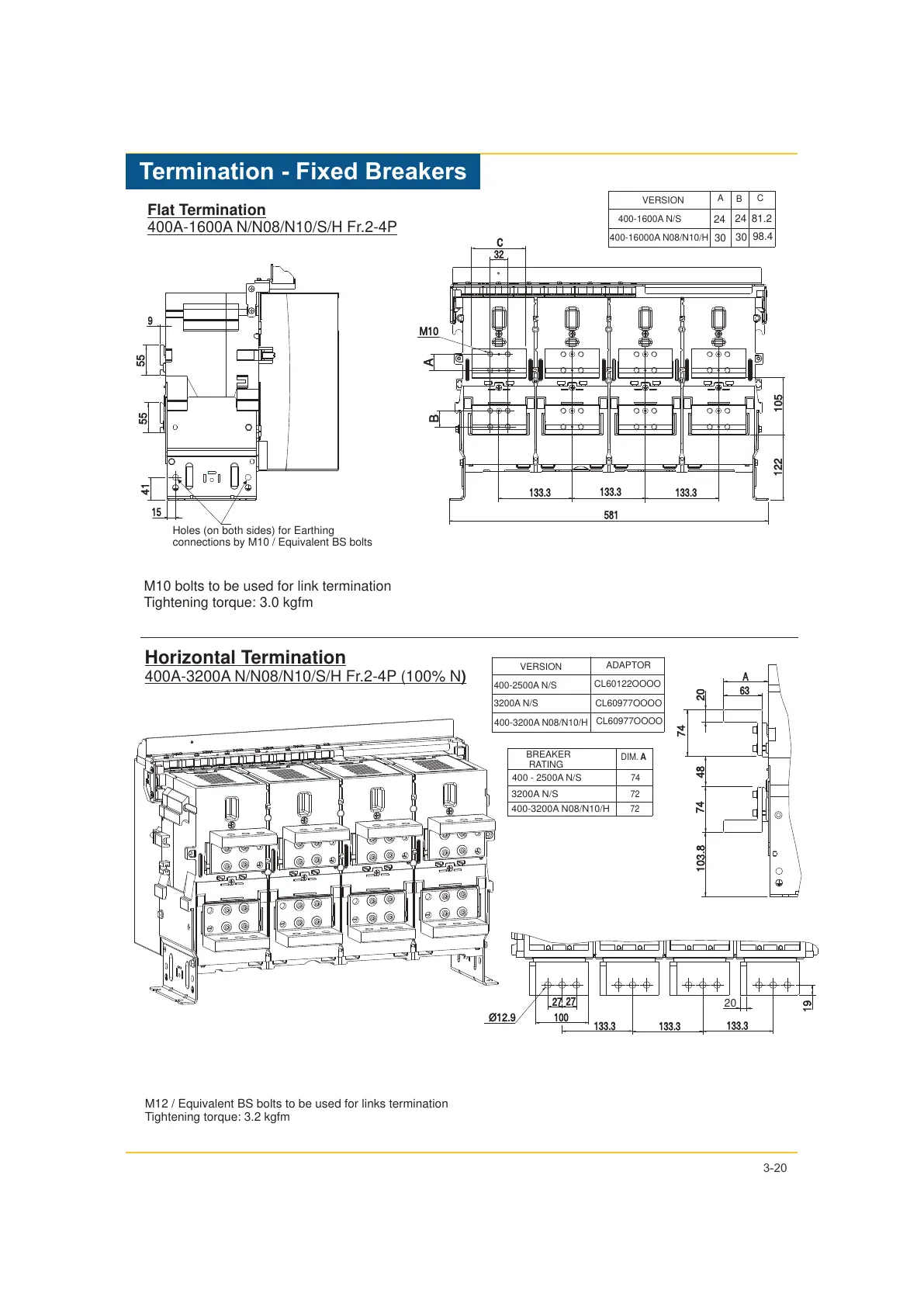

Termination - Fixed Breakers
Flat Termination
400A-1600A N/N08/N10/S/H Fr.2-4P
Horizontal Termination
400A-3200A N/N08/N10/S/H Fr.2-4P (100% N)
Holes (on both sides) for Earthing
connections by M10 / Equivalent BS bolts
9
55
55
41
15
32
c
A
122
105
133.3
133.3
133.3
B
581
M10
27
100
19
Ø12.9
27
133.3
133.3
133.3
20
63
20
A
48
103.8
74
74
M10 bolts to be used for link termination
Tightening torque: 3.0 kgfm
VERSION
A
B
C
400-1600A N/S
24
24
81.2
400-16000A N08/N10/H
30
30
98.4
VERSION
ADAPTOR
400-2500A N/S
3200A N/S
CL60977OOOO
CL60977OOOO
CL60122OOOO
400-3200A N08/N10/H
400 - 2500A N/S
3200A N/S
400-3200A N08/N10/H
74
72
72
BREAKER
RATING
DIM. A
M12 / Equivalent BS bolts to be used for links termination
Tightening torque: 3.2 kgfm
