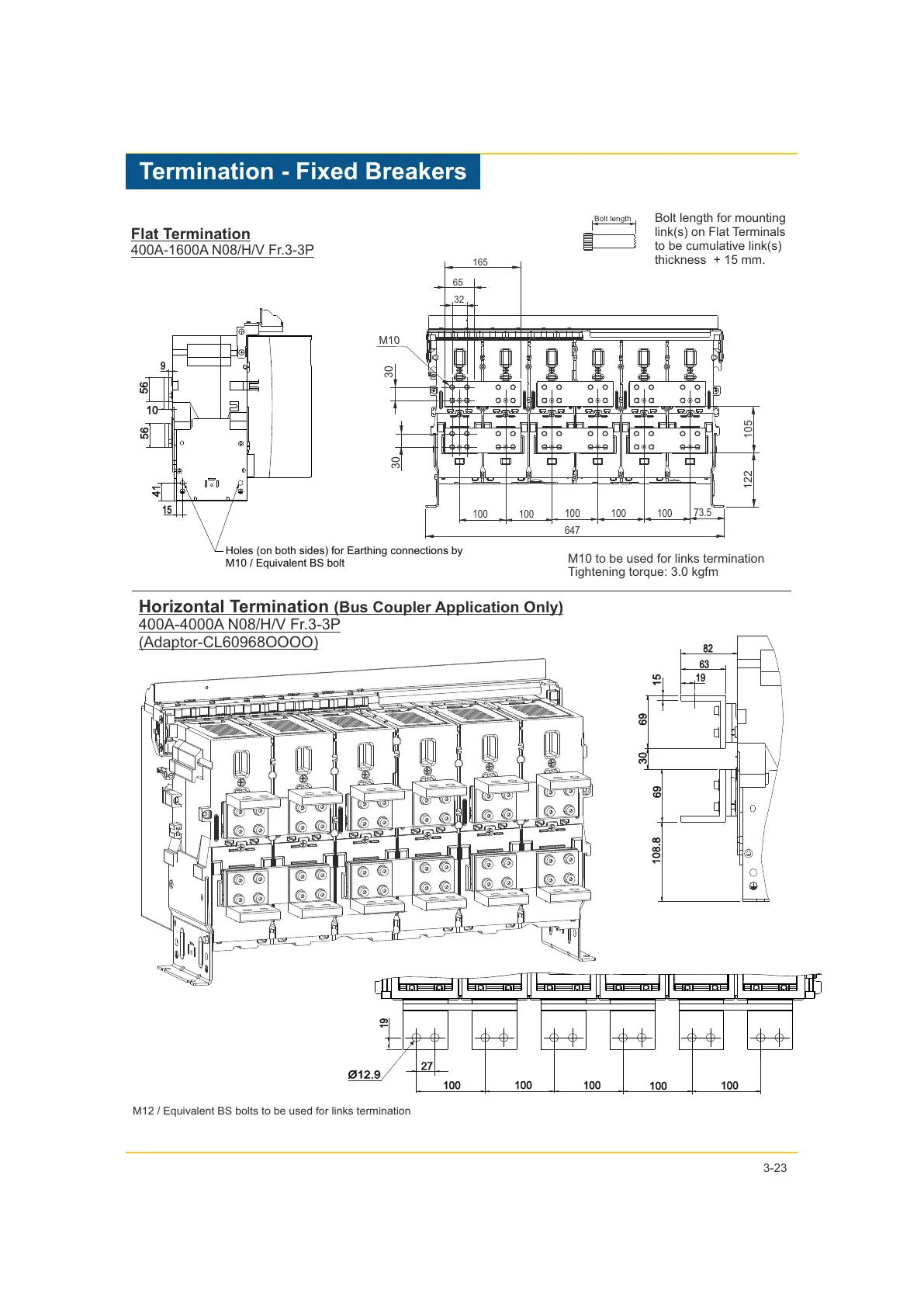

Termination - Fixed Breakers
3-23
M12 / Equivalent BS bolts to be used for links termination
Flat Termination
400A-1600A N08/H/V Fr.3-3P
Horizontal Termination (Bus Coupler Application Only)
400A-4000A N08/H/V Fr.3-3P
(Adaptor-CL60968OOOO)
M10 to be used for links termination
Tightening torque: 3.0 kgfm
Bolt length for mounting
link(s) on Flat Terminals
to be cumulative link(s)
thickness + 15 mm.
Bolt length
27
100
100
100
100
100
19
Ø12.9
Holes (on both sides) for Earthing connections by
M10 / Equivalent BS bolt
647
165
65
M
10
32
30
30
100
100
100
100
100
73.5
105
122
9
41
15
56
56
10
19
63
82
30
108.8
69
15
69
