3-25

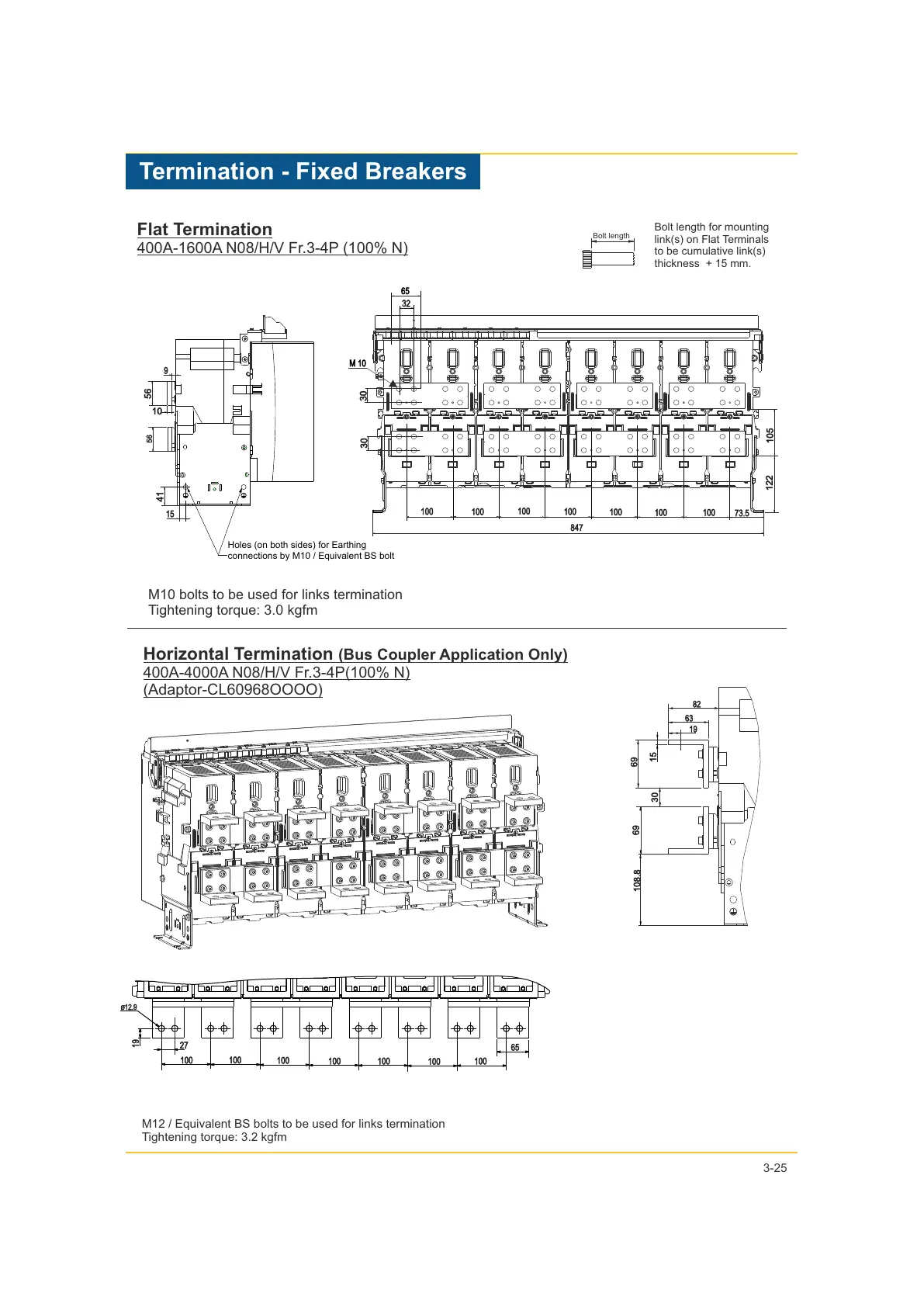

Termination - Fixed Breakers
M12 / Equivalent BS bolts to be used for links termination
Tightening torque: 3.2 kgfm
Flat Termination
400A-1600A N08/H/V Fr.3-4P (100% N)
Horizontal Termination (Bus Coupler Application Only)
400A-4000A N08/H/V Fr.3-4P(100% N)
(Adaptor-CL60968OOOO)
M10 bolts to be used for links termination
Tightening torque: 3.0 kgfm
Holes (on both sides) for Earthing
connections by M10 / Equivalent BS bolt
M 10
19
63
82
69
30
108.8
69
15
Bolt length for mounting
link(s) on Flat Terminals
to be cumulative link(s)
thickness + 15 mm.
Bolt length
9
41
15
56
56
10
100
100
100
100
100
100100
73.5
122
105
847
30
32
30
65
100
100
100
100
100
100
100
27
19
Ø12.9
100
100
100100
100
100
65
