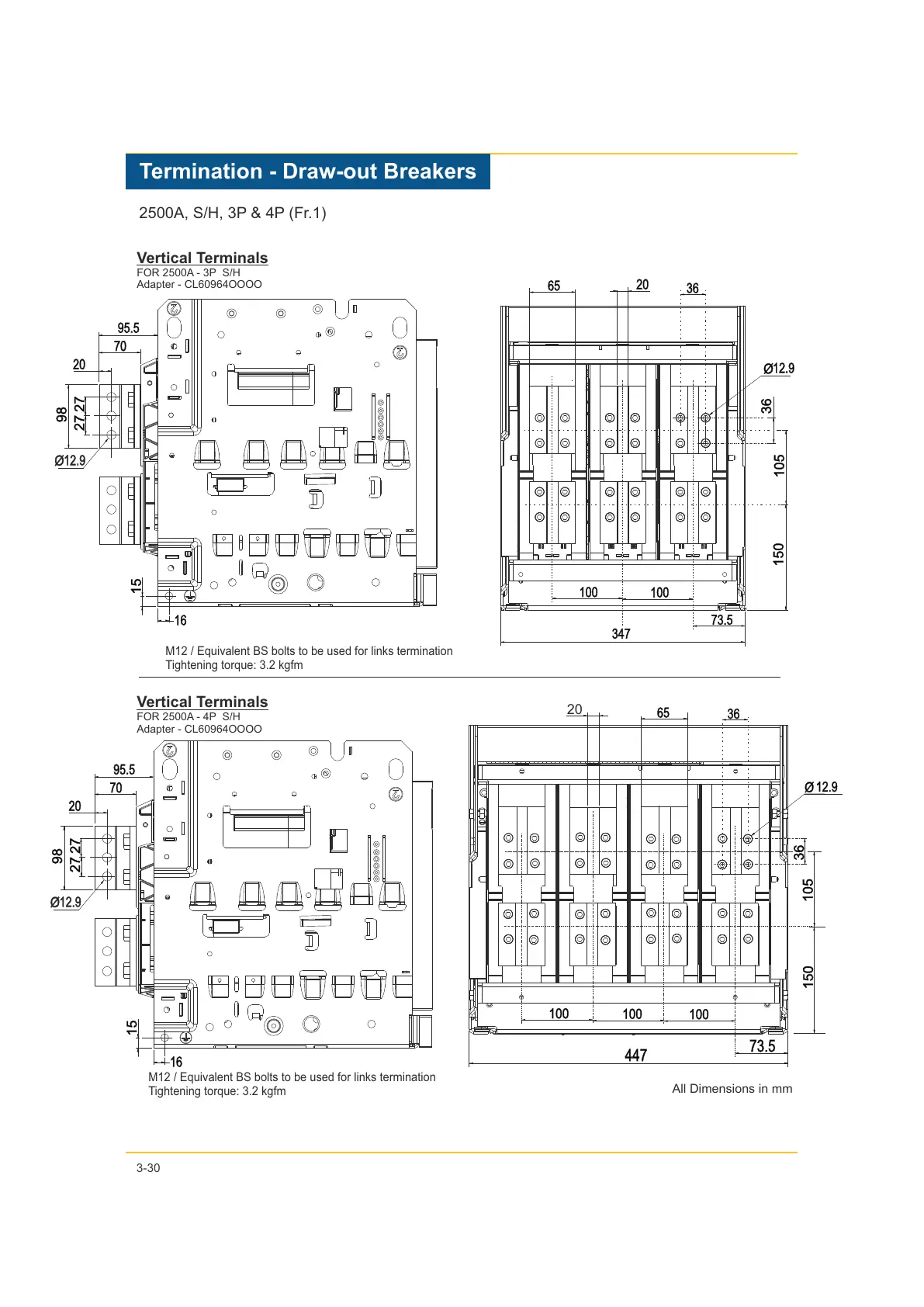

Termination - Draw-out Breakers
3-30
All Dimensions in mm
M12 / Equivalent BS bolts to be used for links termination
Tightening torque: 3.2 kgfm
2500A, S/H, 3P & 4P (Fr.1)
Vertical Terminals
FOR 2500A - 3P S/H
Adapter - CL60964OOOO
Vertical Terminals
FOR 2500A - 4P S/H
Adapter - CL60964OOOO
M12 / Equivalent BS bolts to be used for links termination
Tightening torque: 3.2 kgfm
347
150
105
Ø
12.9
100
100
73.5
36
20
36
65
447
100
100
100
73.5
105
150
Ø
12.9
36
65
36
20
16
15
27
20
98
Ø
12.9
27
70
95.5
16
15
27
20
98
Ø
12.9
27
70
95.5
