Larsen & Toubro U-POWER Omega UW-MTX 3.5 User Manual

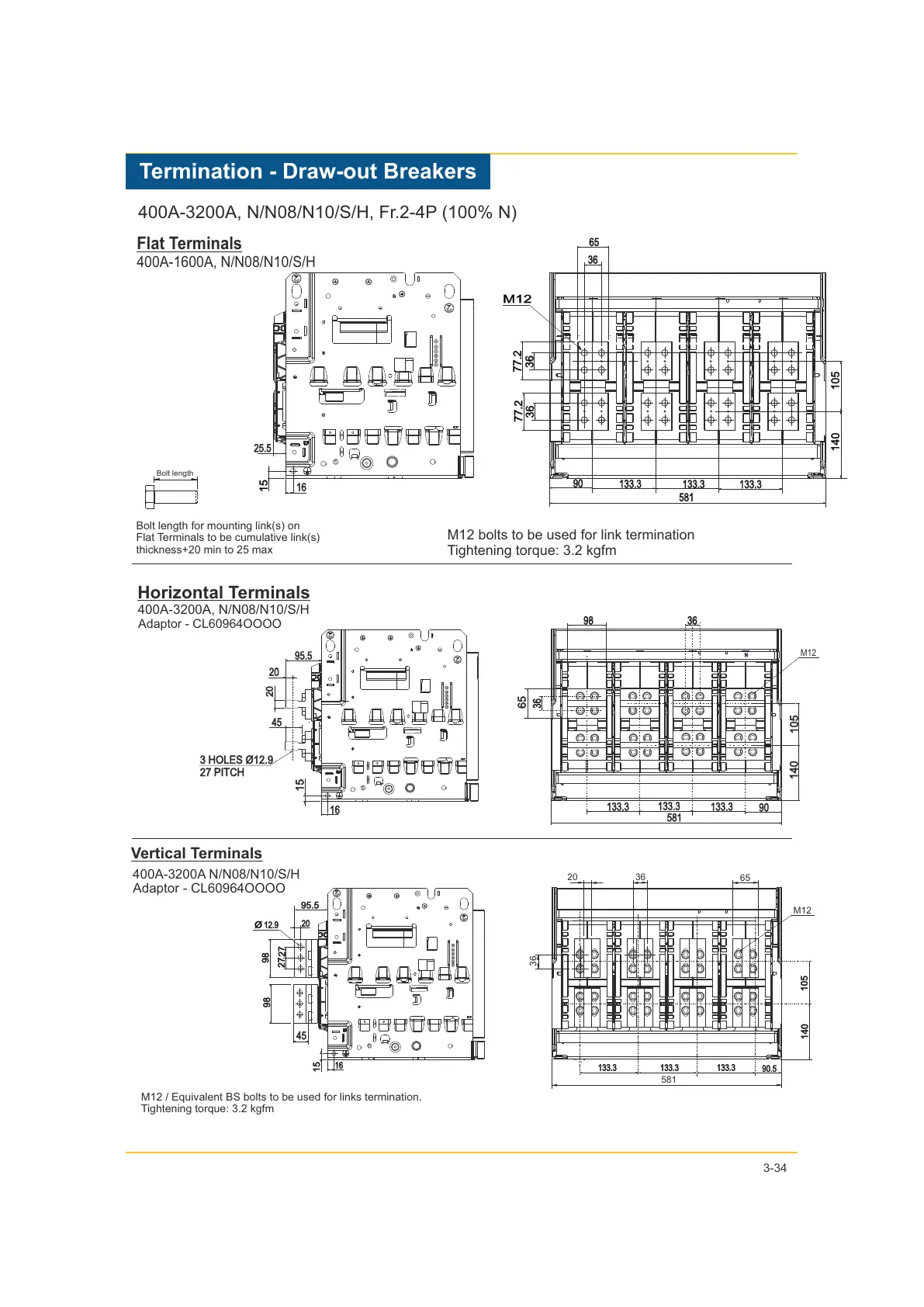

Termination - Draw-out Breakers
3-34
400A-3200A, N/N08/N10/S/H, Fr.2-4P (100% N)
Flat Terminals
400A-1600A, N/N08/N10/S/H
Bolt length for mounting link(s) on
Flat Terminals to be cumulative link(s)
thickness+20 min to 25 max
Bolt length
M12 bolts to be used for link termination
Tightening torque: 3.2 kgfm
15
16
25.5
36
36
65
36
77.2
77.2
105140
133.3
133.3
133.3
90
581
M12
Horizontal Terminals
Adaptor - CL60964OOOO
400A-3200A, N/N08/N10/S/H
Vertical Terminals
M12 / Equivalent BS bolts to be used for links termination.
Tightening torque: 3.2 kgfm
Adaptor - CL60964OOOO
400A-3200A N/N08/N10/S/H
16
15
20
95.5
20
45
3 HOLES Ø12.9
27 PITCH
133.3
133.3
133.3
90
581
98
65
36
105
140
N
36
M12
15
16
98
27
27
98
20
Ø
12.9
95.5
45
133.3
133.3
133.3
90.5
105
140
2036
65
581
36
M12
