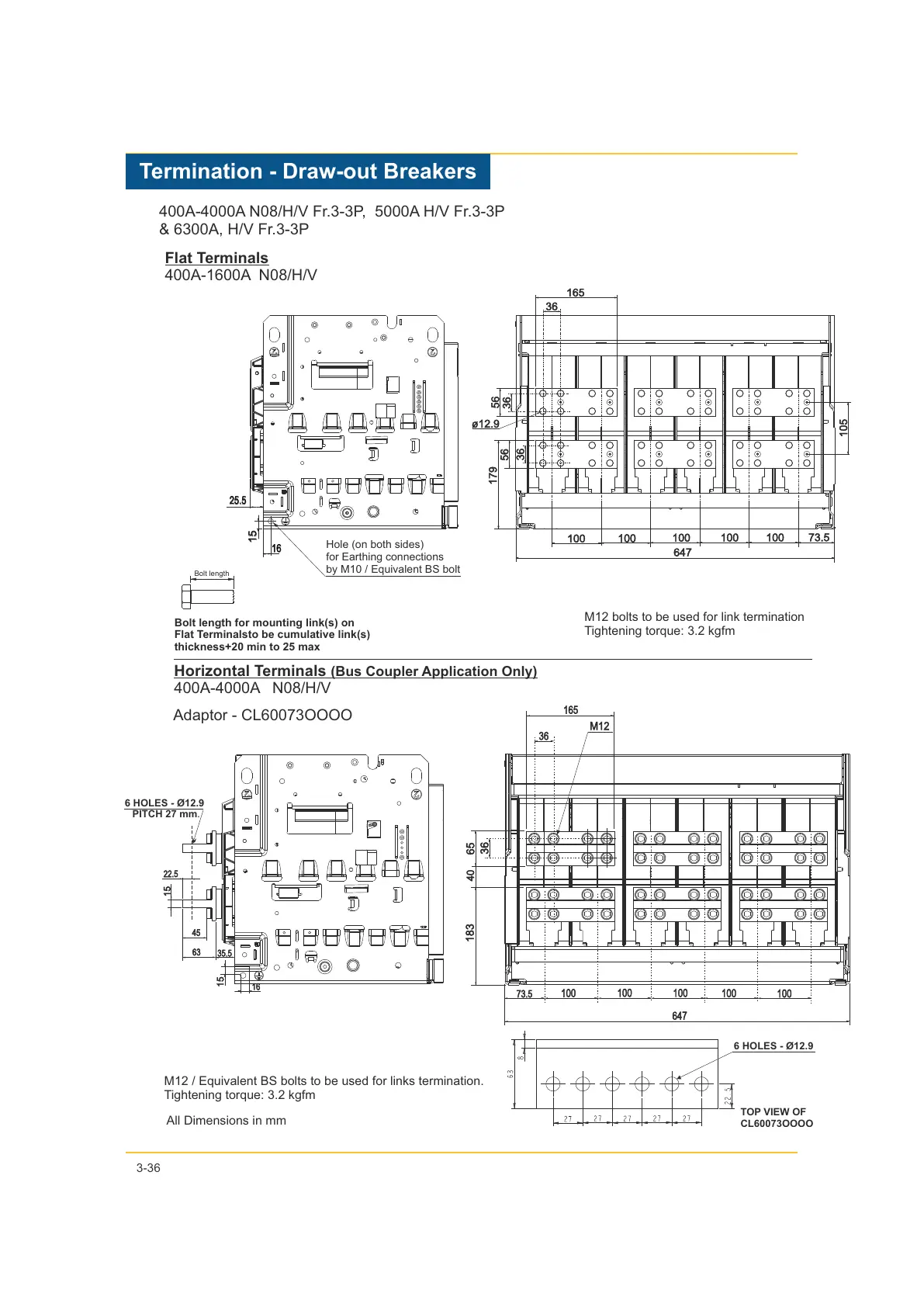

Termination - Draw-out Breakers
3-36
Bolt length for mounting link(s) on
Flat Terminalsto be cumulative link(s)
thickness+20 min to 25 max
Bolt length
Flat Terminals
400A-1600A N08/H/V
400A-4000A N08/H/V Fr.3-3P, 5000A H/V Fr.3-3P
& 6300A, H/V Fr.3-3P
M12 / Equivalent BS bolts to be used for links termination.
Tightening torque: 3.2 kgfm
All Dimensions in mm
Hole (on both sides)
for Earthing connections
by M10 / Equivalent BS bolt
161616
151515
25.525.525.5
Horizontal Terminals (Bus Coupler Application Only)
400A-4000A N08/H/V
M12 bolts to be used for link termination
Tightening torque: 3.2 kgfm
Adaptor - CL60073OOOO
647
100
36
165
M12
36
183
40
73.5
100
100
100
100
65
100
100
ø12.9
100
100
100
105
73.5
647
165
179
36
36
36
56
56
6 HOLES - Ø12.9
TOP VIEW OF
CL60073OOOO
16
15
15
35.5
63
45
6 HOLES - Ø12.9
PITCH 27 mm
.
22.5
