Larsen & Toubro U-POWER Omega UW-MTX 3.5 User Manual

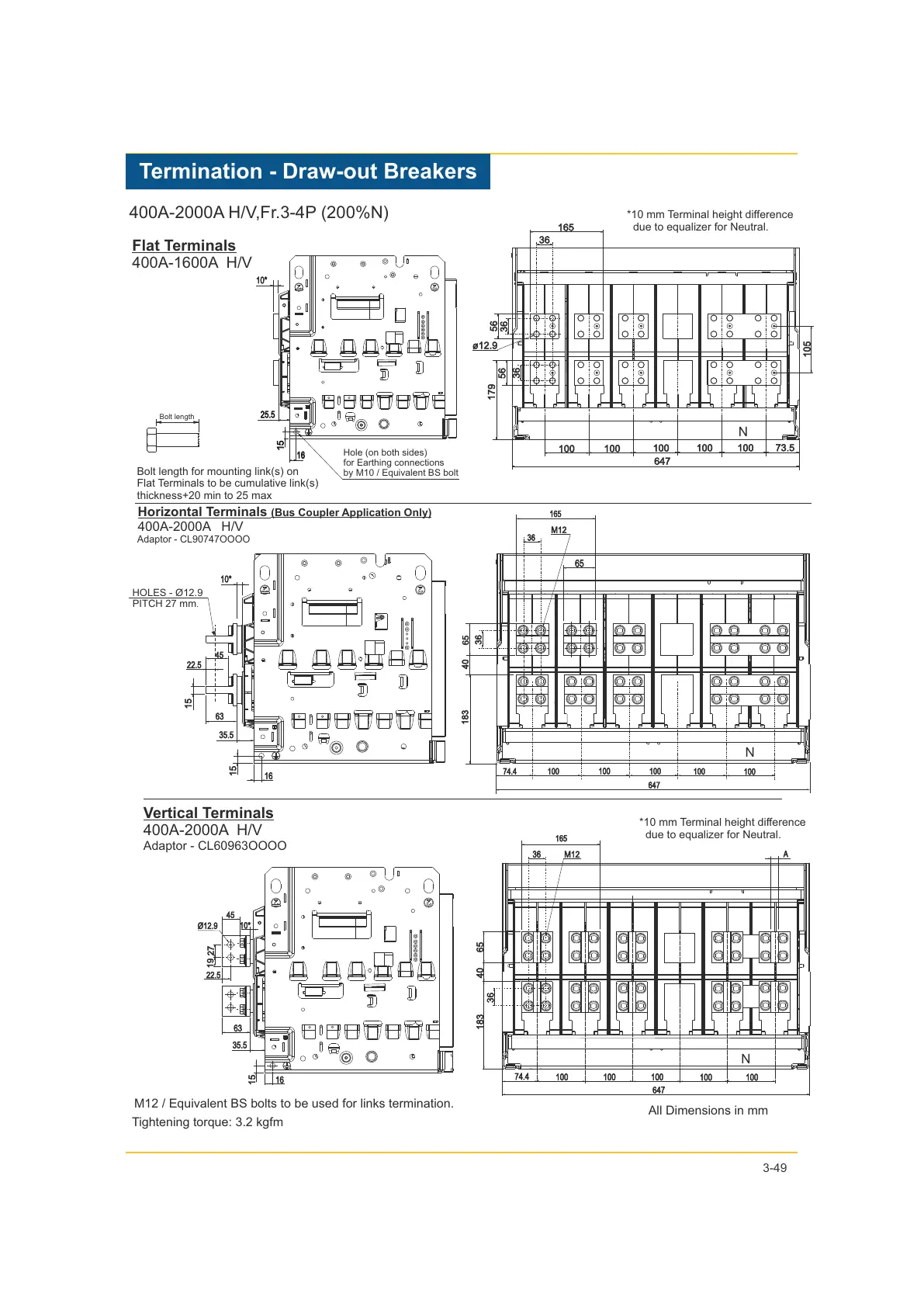

Termination - Draw-out Breakers
3-49
Bolt length for mounting link(s) on
Flat Terminals to be cumulative link(s)
thickness+20 min to 25 max
Bolt length
Flat Terminals
400A-1600A H/V
400A-2000A H/V,Fr.3-4P (200%N)
M12 / Equivalent BS bolts to be used for links termination.
Hole (on both sides)
for Earthing connections
by M10 / Equivalent BS bolt
161616
151515
25.525.525.5
Vertical Terminals
400A-2000A H/V
Adaptor - CL60963OOOO
100
100
ø12.9
100
100
100
105
73.5
647
165
179
36
36
36
56
56
All Dimensions in mm
10*
N
*10 mm Terminal height difference
due to equalizer for Neutral.
Ø12.9
22.5
16
15
35.5
63
19
27
647
74.4
100100100
100100
36
A
165
M12
36
1834065
45
10*
N
*10 mm Terminal height difference
due to equalizer for Neutral.
Horizontal Terminals (Bus Coupler Application Only)
400A-2000A H/V
Adaptor - CL90747OOOO
16
15
15
35.5
63
HOLES - Ø12.9
PITCH 27 mm
.
22.5
647
100
36
165
M12
36
183
40
74.4
100
100
100
100
65
65
45
10*
N
Tightening torque: 3.2 kgfm
