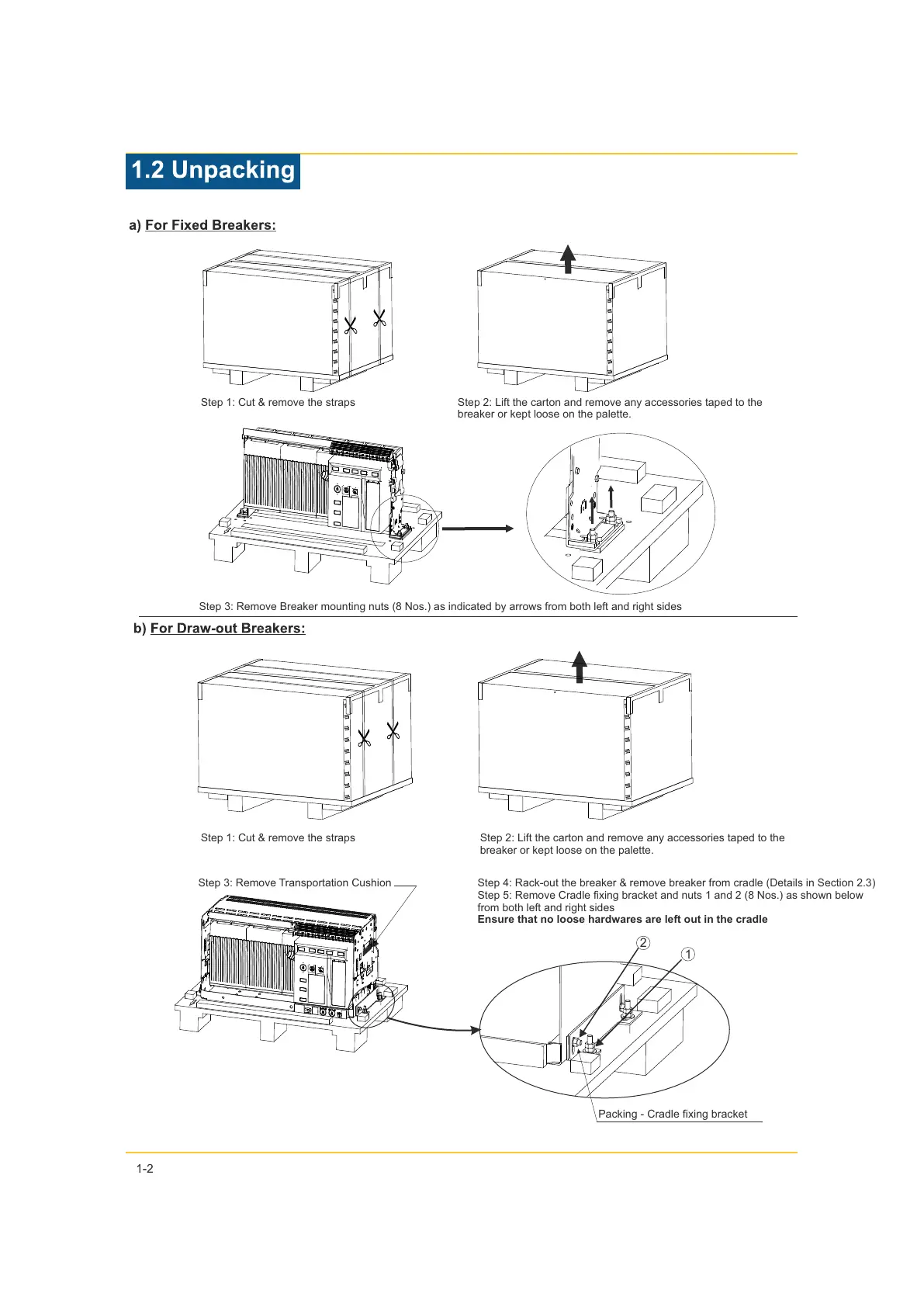

Step 3: Remove Transportation CushionStep 4: Rack-out the breaker & remove breaker from cradle (Details in Section 2.3)
Step 5: Remove Cradle fixing bracket and nuts 1 and 2 (8 Nos.) as shown below
from both left and right sides
Ensure that no loose hardwares are left out in the cradle
Packing - Cradle fixing bracket
Step 1: Cut & remove the straps
Step 1: Cut & remove the straps
Step 2: Lift the carton and remove any accessories taped to the
breaker or kept loose on the palette.
Step 2: Lift the carton and remove any accessories taped to the
breaker or kept loose on the palette.
Step 3: Remove Breaker mounting nuts (8 Nos.) as indicated by arrows from both left and right sides
2
1
