LAS 10323 - Operating Instructions; System Components Overview; Tie-down System Assembly; Securing Motorcycle to Trailer

8
1 - Handlebar loops
2 - Tank protector
3 - Ratchet
4 - Strap with clamping lock
5 - J-hooks
The motorcycle tie-down system consists of two tensioning straps each with a handlebar loop and a ratchet. The tensioning
straps are criss-crossed in the tank protector, see Image 2.
Drive your motorcycle right to the front of the transport trailer, until the front wheel sits correctly in the holder. Select the
suitable xing method for your motorcycle, Images 3 - 6. Set up the tie-down system as shown in the images. Tighten the
tensioning straps gently and evenly with the help of the ratchets. Using the tensioning strap with clamp lock, ax the back
tire of your motorcycle to the wheel rail of the transport trailer, Image 7. Now tighten the tensioning strap and lock the ratchet.

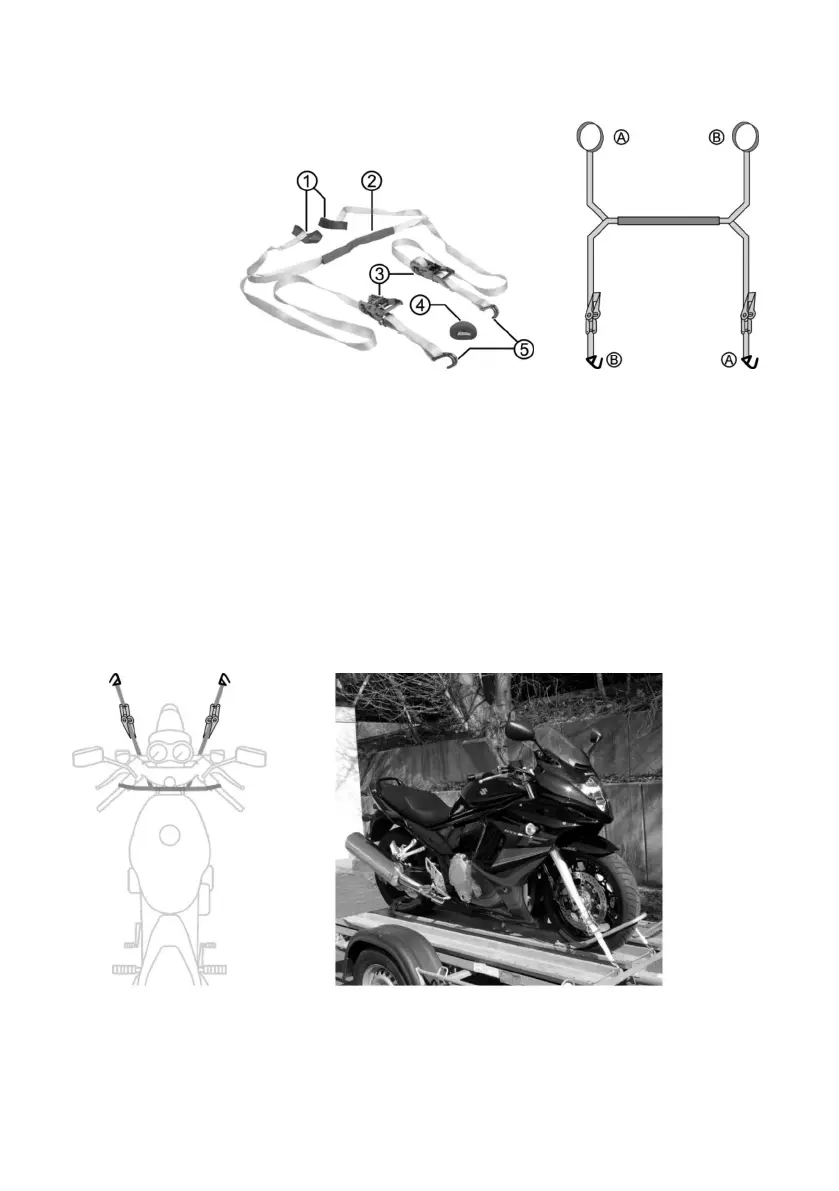

Image 1: Overview
Image 3: Sketch Version 1 Image 4: Version 1
Image 2: Set-up
5. OPERATING INSTRUCTIONS
5.2 ASSEMBLY
5.3 ATTACHING THE MOTORCYCLE TO THE TRANSPORT TRAILER
5.1 OVERVIEW
