SensoPilot Pro
ENGLISH10
Operation of remote display
Power supply
In the case of battery operation, power is supplied from the SensoPilot.
For operation from the battery of the construction machine, connect the remote
display (13) using the 12/24V battery cable, ensuring that RED is connected to the
positive battery pole (+) and BLACK to earth (engine block). The SensoPilot is then

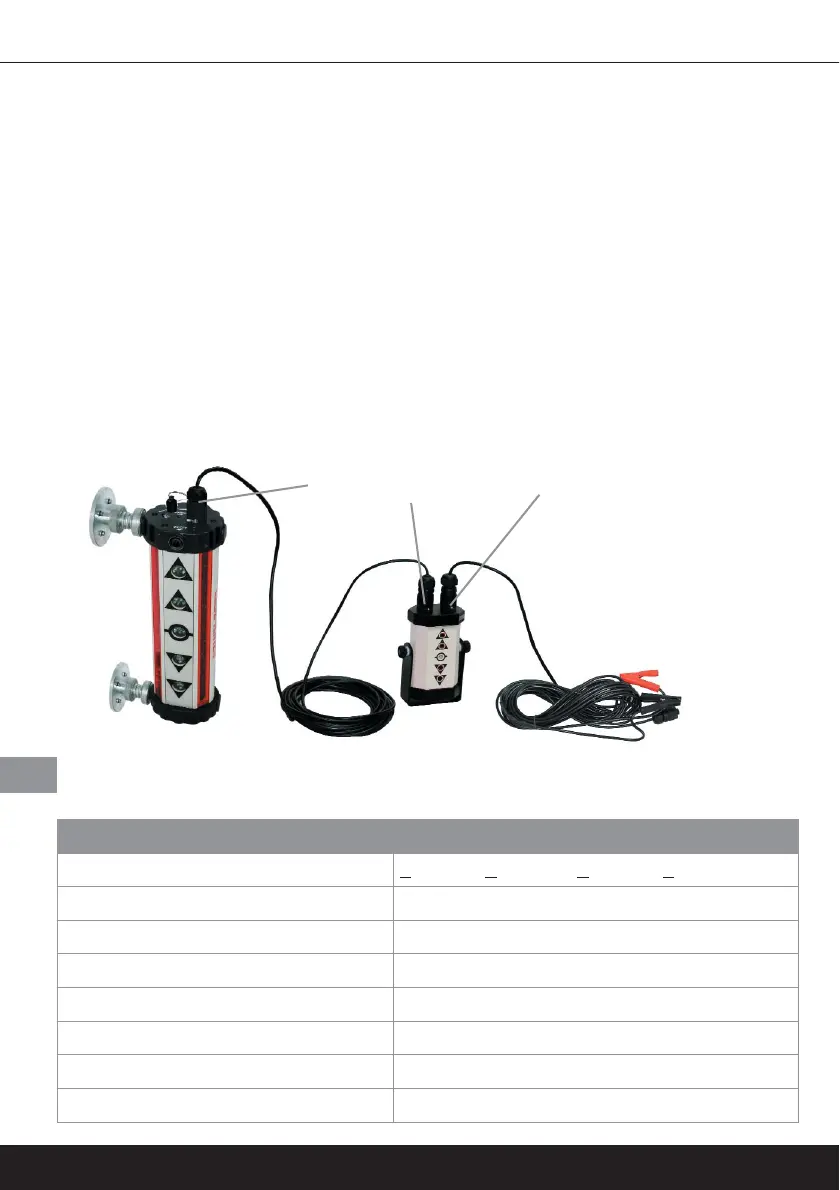

also supplied with power via the connection cable - see illustration below.
Use of the remote display
The remote display allows laser reception of the SensoPilot to be monitored when
this cannot be seen from the cab of the construction machine. In this case, connect
the remote display (12) to the SensoPilot (4) using the connection cable and install
the remote display in the operator's cab.
Connection cable from
SensoPilot to remote display
12/24 V battery cable
412 13
SensoPilot Pro / Remote display
Precision HIGH / LOW
+ 2 mm – + 10 mm / + 5 mm – + 23 mm
Battery / laser
7,2 V NiMh / 2500 mA
Battery operating time
approx. 40 hours
Charging time
approx. 15 hours
Working temperature
-20°C – +50°C
Dimensions
376 x 180 x 49 mm
Weight of SensoPilot / remote display
5 kg / 2 kg
Subject to change
12.2004
