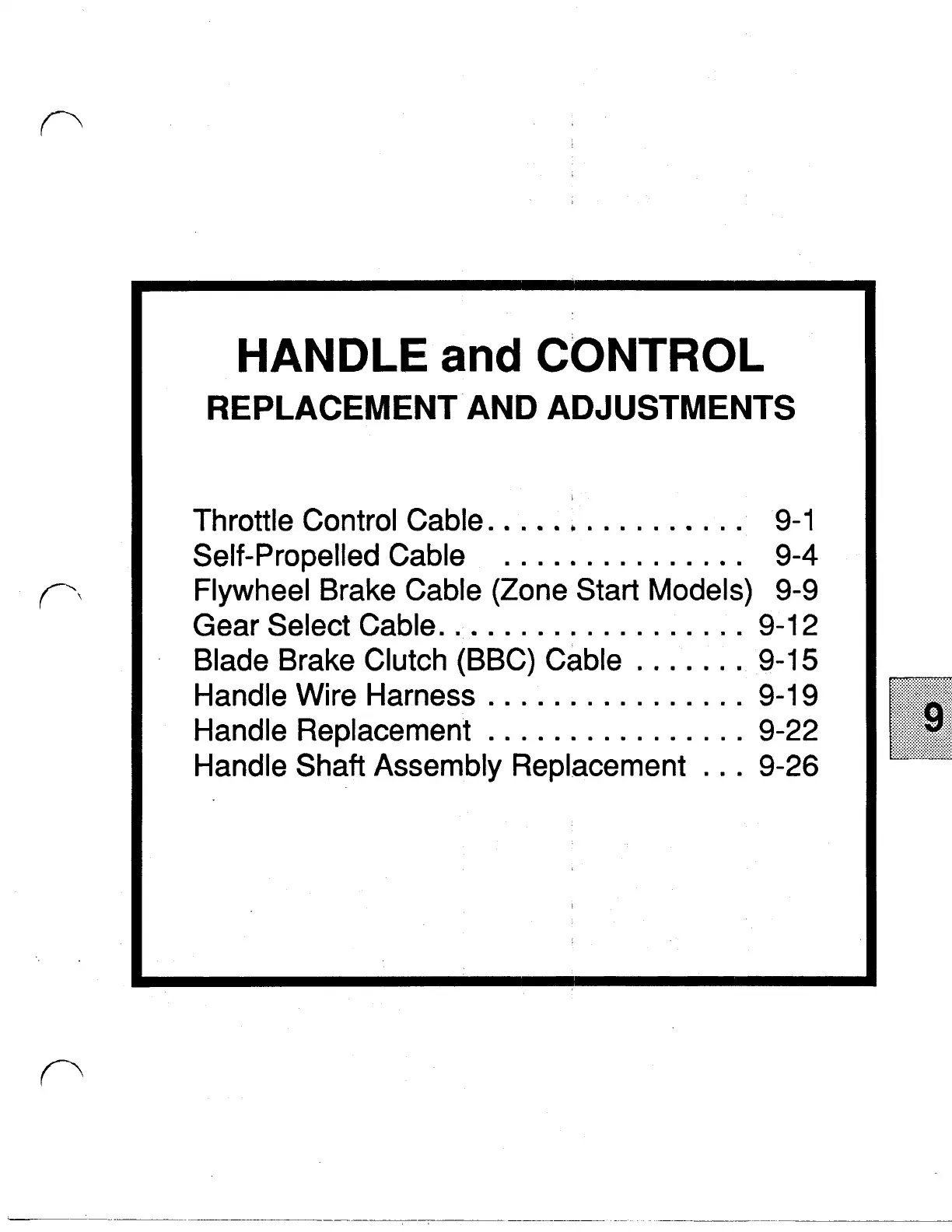

HANDLE
and
CONTROL
REPLACEMENT AND ADJUSTMENTS
Throttle Control Cable. 9-1
Self-Propelled Cable
9-4
Flywheel Brake Cable (Zone Start Models) 9-9
Gear Select Cable.
9-1 2
Blade Brake Clutch (BBC) Cable
9-1
5
Handle Wire Harness 9-1 9
Handle Replacement 9-22
Handle Shaft Assembly Replacement 9-26
