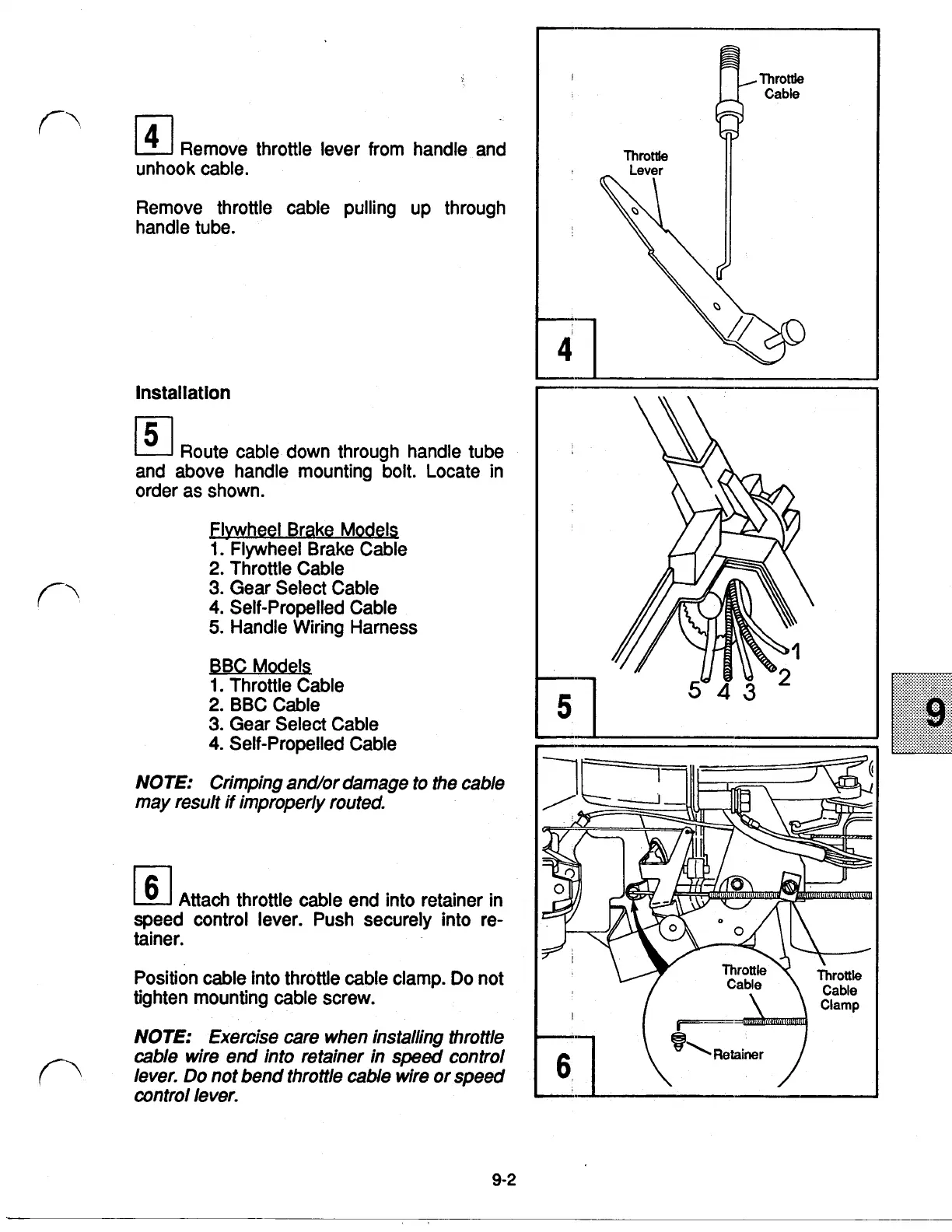

4
Remove throttle lever from handle and
unhook cable.
Remove throttle cable pulling up through
handle tube.
Installation
5
Route cable down through handle tube
and above handle mounting bolt. Locate in
order as shown.
Flywheel Brake Models
1.
Flywheel Brake Cable
2.
Throttle Cable
3.
Gear Select Cable
4.
Self-Propelled Cable
5.
Handle Wiring Harness
BBC Models
1.
Throttle Cable
2.
BBC Cable
3.
Gear Select Cable
4.
Self-Propelled Cable
NOTE:
Crimping and/or damage to the cable
may result if improperly routed.
6
Attach throttle cable end into retainer in
speed control lever. Push securely into re-
tainer.
Position cable into throttle cable clamp.
Do
not
tighten mounting cable screw.
NOTE:
Exercise care when installing throttle
cable wire end into retainer in
speed
control
lever.
Do
not
bend throttle cable wire or speed
control lever.
5
Clamp
I
9-2
To Next Page
