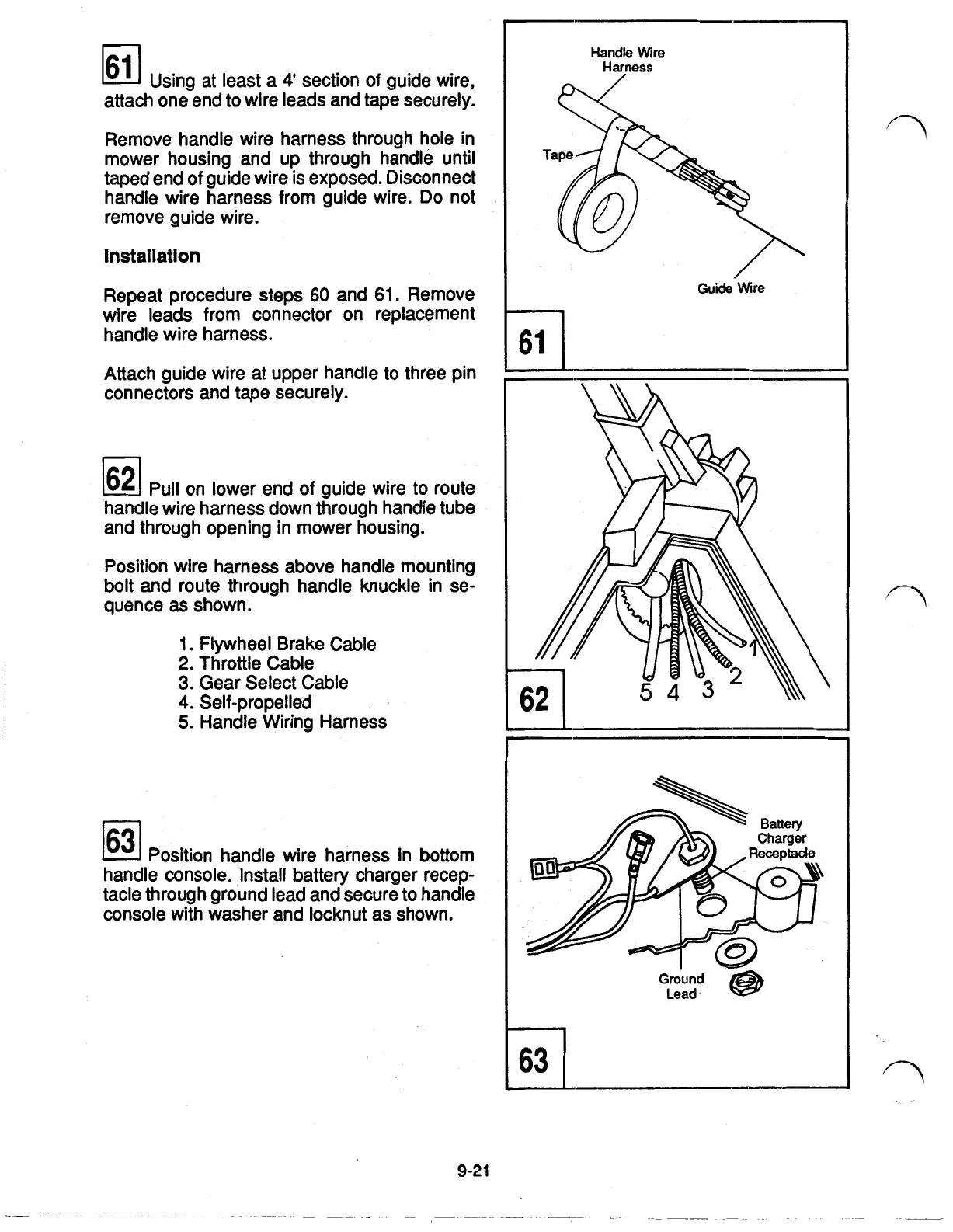

61
Using at least a
4'
section of guide wire,
attach one end to wire leads and tape securely.
Remove handle wire harness through hole in
mower housing and up through handle until
taped end of guide wire is exposed. Disconnect
handle wire harness from guide wire. Do not
remove guide wire.
Installation
Repeat procedure steps 60 and 61. Remove
wire leads from connector on replacement
handle wire harness.
Attach guide wire at upper handle to three pin
connectors and tape securely.
62
Pull on lower end of guide wire to route
handle wire harness down through handle tube
and through opening in mower housing.
Position wire harness above handle mounting
bolt and route through handle knuckle in se-
quence
as
shown.
1. Flywheel Brake Cable
2.
Throttle Cable
3.
Gear Select Cable
4.
Self-propelled
5.
Handle Wiring Harness
63
Position handle wire harness in bottom
handle console. Install battery charger recep-
tacle through ground lead and secure to handle
console with washer and locknut
as
shown.
I
Handle
Wire
Harness
Guide
Wire
Ground
Lead
9-21
