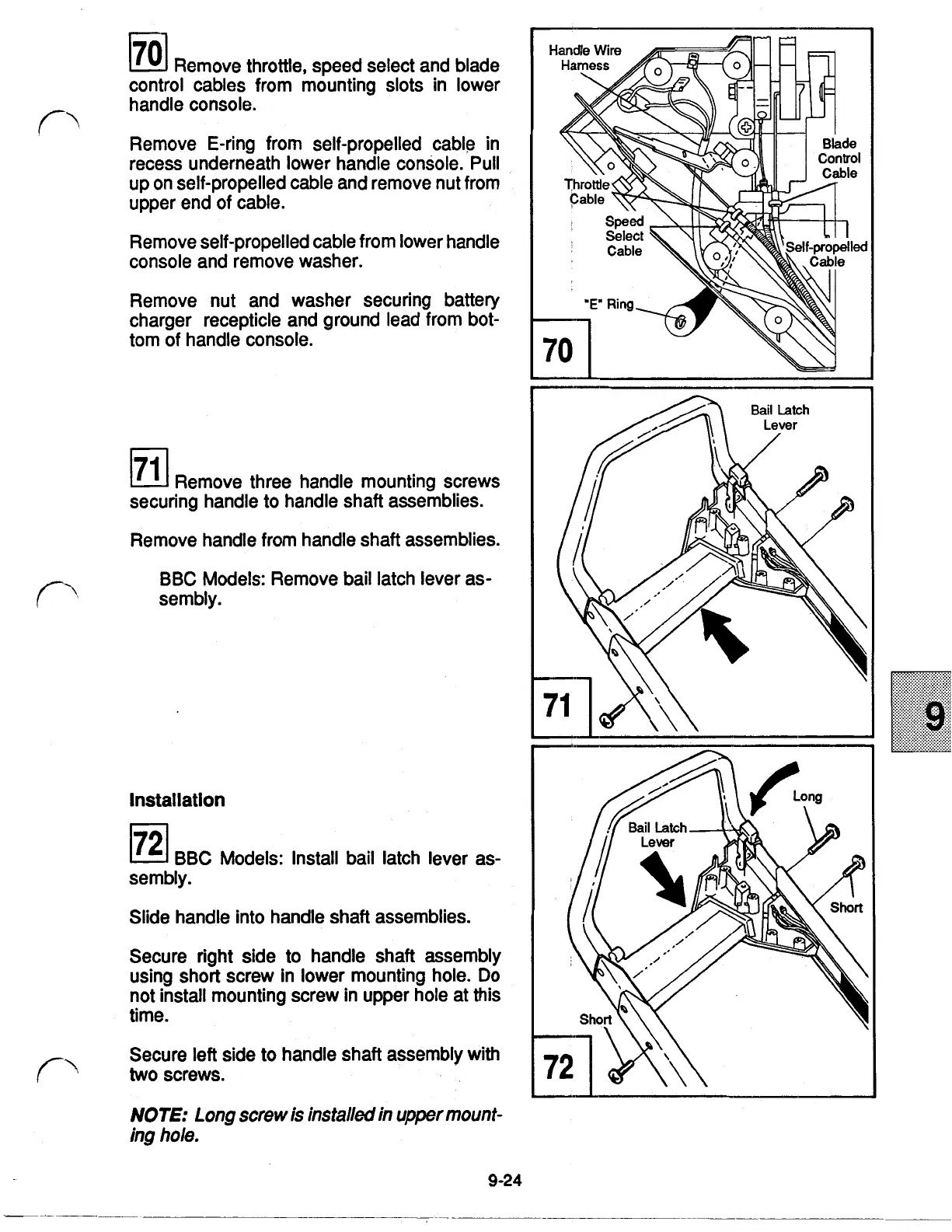

70
Remove throttle, speed select and blade
control cables from mounting slots in lower
handle console.
Remove E-ring from self-propelled cable in
recess underneath lower handle console. Pull
up on self-propelled cable and remove nut from
upper end of cable.
Remove self-propelled cable from lower handle
console and remove washer.
Remove nut and washer securing battery
charger recepticle and ground lead from bot-
tom of handle console.
71
Remove three handle mounting screws
securing handle to handle shaft assemblies.
Remove handle from handle shaft assemblies.
BBC
Models: Remove bail latch lever as-
sembly.
Installation
72
BBC
Models: Install bail latch lever as-
sembly.
Slide handle into handle shaft assemblies.
Secure right side to handle shaft assembly
using short screw in lower mounting hole.
Do
not install mounting screw in upper hole at this
time.
Secure left side
to
handle shaft assembly with
two
screws.
NOTE:
Long
screw
is installed in
upper
mount-
ing
hole.
9.
-24
To Next Page
