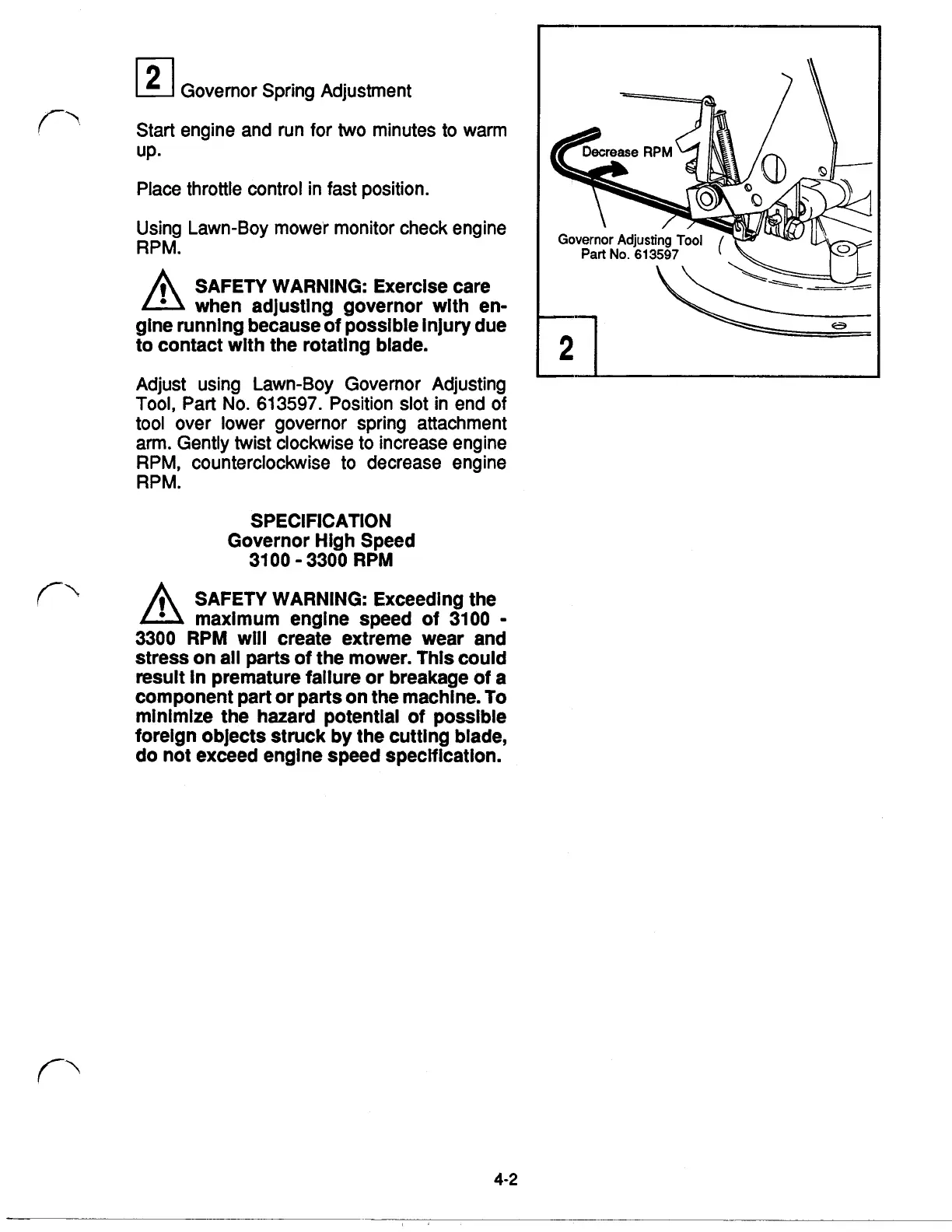

Governor Spring Adjustment
Start engine and run for two minutes to warm
UP.
Place throttle control in fast position.
Using Lawn-Boy mower monitor check engine
RPM.
A
SAFETY WARNING: Exercise care
when adjusting governor with en-
gine running because of possible Injury due
to contact with the rotating blade.
Adjust using Lawn-Boy Governor Adjusting
Tool,
Part
No.
613597.
Position slot in end of
tool over lower governor spring attachment
arm. Gently twist clockwise
to
increase engine
RPM, counterclockwise to decrease engine
RPM.
SPECIFICATION
Governor High Speed
3100 3300
RPM
SAFETY WARNING: Exceeding the
maximum engine speed of
3100
3300
RPM will create extreme wear and
stress on all parts of the mower. This could
result
in
premature failure or breakage of
a
component part or parts on the machine. To
minimize the hazard potential of possible
foreign objects struck by the cuttlng blade,
do not exceed engine speed specification.
