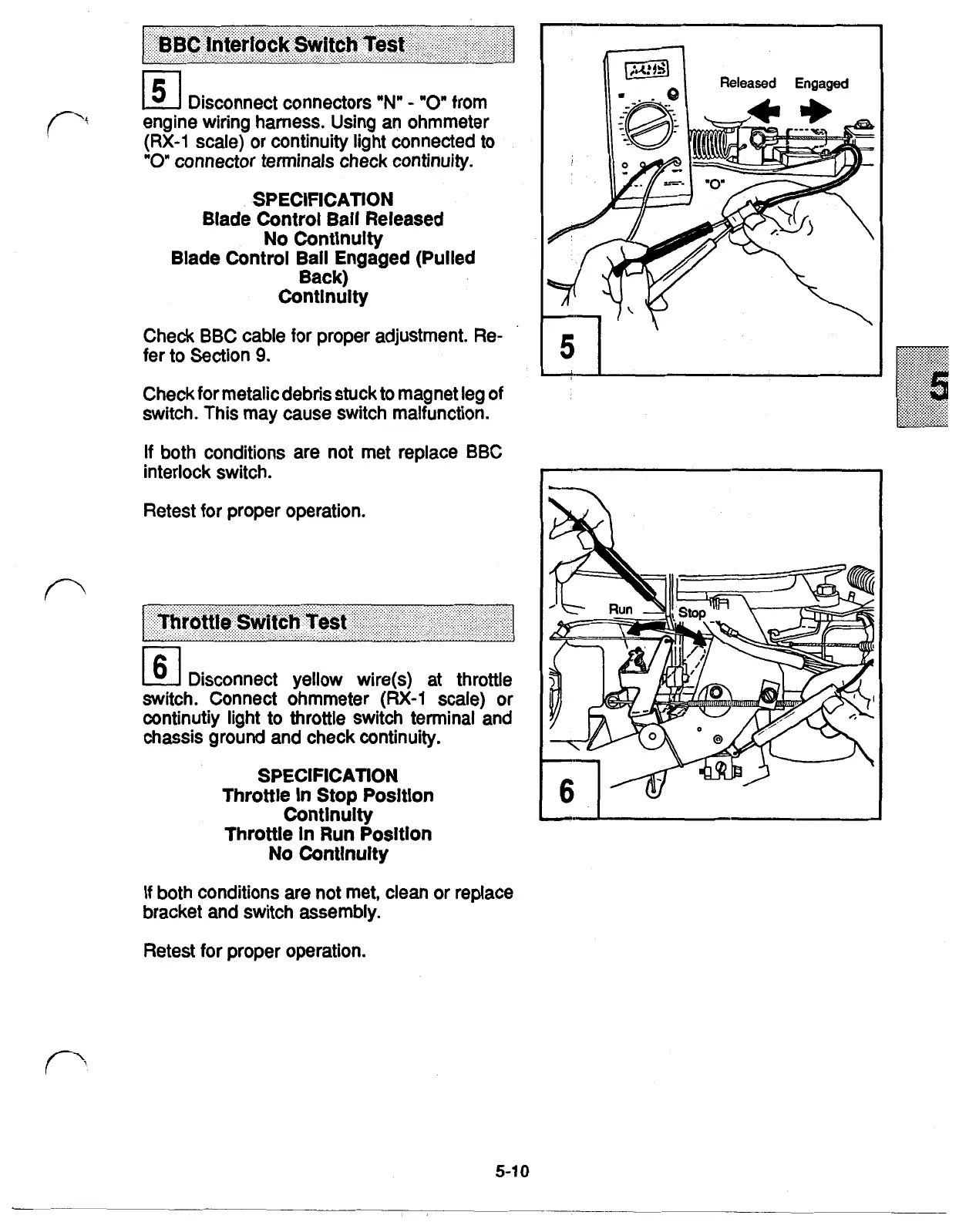

Disconnect connectors "N" "0" from
(RX-1 scale) or continuity light connected to
"0" connector terminals check continuity.
engine wiring harness. Using an ohmmeter
SPECIFICATION
Blade Control Ball Released
No Continuity
Blade Control Bail Engaged (Pulled
Back)
Continuity
Check BBC cable for proper adjustment. Re-
fer to Section
9.
Check for metallic debris stuck to magnet leg of
switch. This may cause switch malfunction.
If both conditions are not met replace BBC
interlock switch.
Retest for proper operation.
Disconnect yellow wire(s) at throttle
switch. Connect ohmmeter
(RX-1 scale) or
continuity light to throttle switch terminal and
chassis ground and check continuity.
SPECIFICATION
Throttle In Stop Position
Continuity
Throttle in Run Position
No Contlnuity
If both conditions are not met, clean or replace
bracket and switch assembly.
Retest for proper operation
