Installation guide
LC-DOCK-U3-II - USB 3.0 Dual Bay Docking Station for 2x 2,5”/3,5” SATA HDDs/SSDs
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
Important note :
1.
Before cloning a hard disk drive, please disconnect the USB 3.0 cable from the docking station.
If the mentioned cable is connected during the cloning process, it may cause data corruption on
the hard disk drives.
2.
Please make sure you put the correct hard disk drive into the correct HDD bay before cloning.
Otherwise this may cause a data loss.
3.
The capacity of the target hard disk drive (must be put in the target HDD bay) must be equal or
larger than the capacity of the source hard disk drive.
Please follow the steps below to enable the hardware clone process:
1.

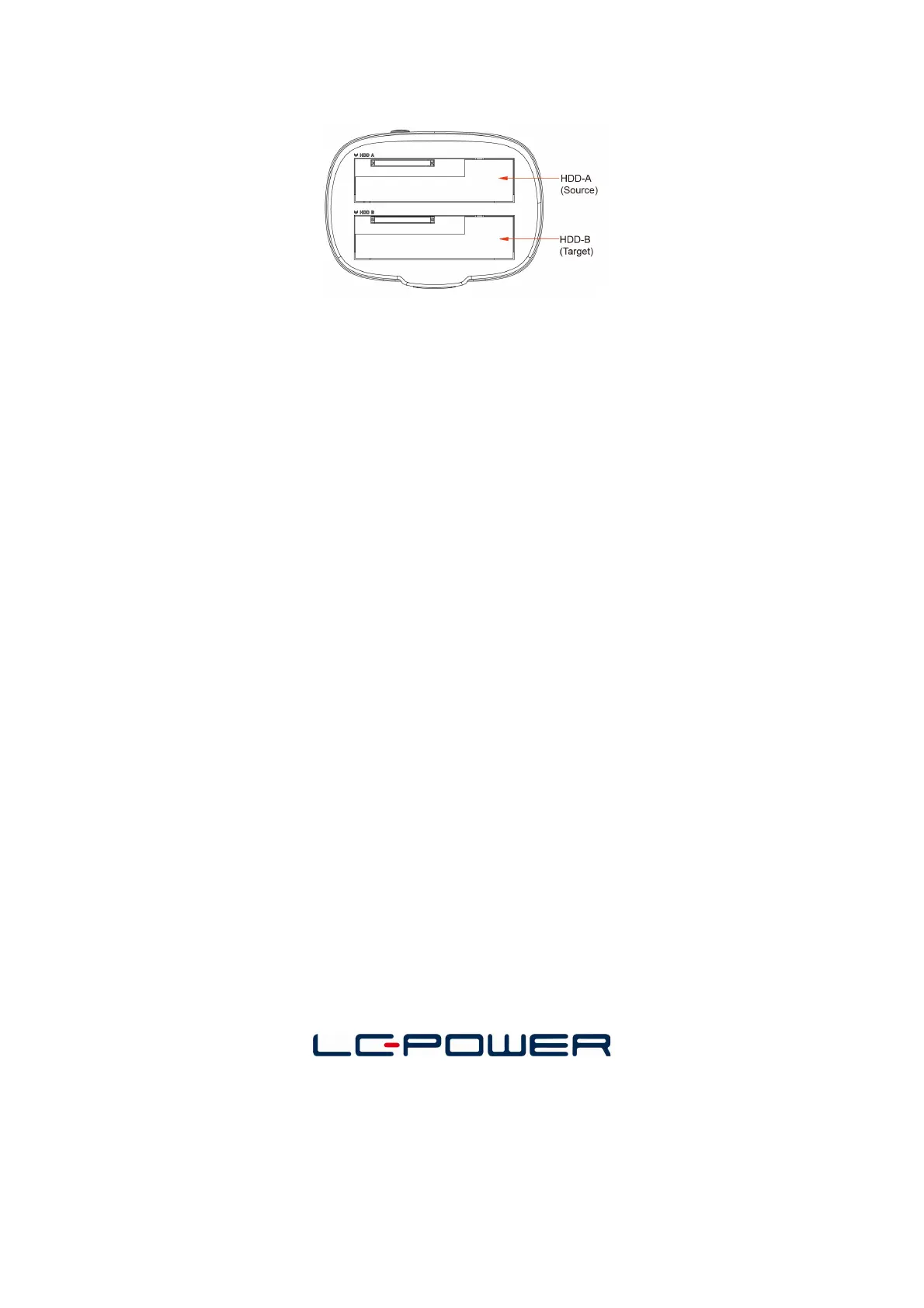

Install two hard disk drives into the dock. Make sure the correct drives are properly installed to source
bay (HDD A) and target bay (HDD B).
2.
Remove the USB cable from the docking station, connect the power adapter and press the power
button to power on the docking station.
3.
Press and hold the CLONE button for 3 seconds to start the duplication. The percentage LED
indicators located next to the “Clone” button will begin to blink. If you do not hold the clone button for
3 seconds, you need to start the process again.
4.
As the duplication process progresses, the LED indicator will blink green and will change the colour
regarding the cloning status (25% = green, 50% = red, 75% = yellow, 100% = orange).
5.
When the duplication process has completed, the percentage LED indicator will stop blinking and stay
orange lighted continuously. Press the power button on the rear side of the docking station to turn off
the docking station.
6.
You can now safely remove the hard disk drives from the docking station.
Silent Power Electronics GmbH, Formerweg 8, 47877 Willich, Germany, www.lc-power.com
